INTENDED FOR PROFESSIONAL USERS OF EQUIPMENT
INSTRUCTIONS
MANUAL
READ AND UNDERSTAND
BEFORE USING THIS EQUIPMENT

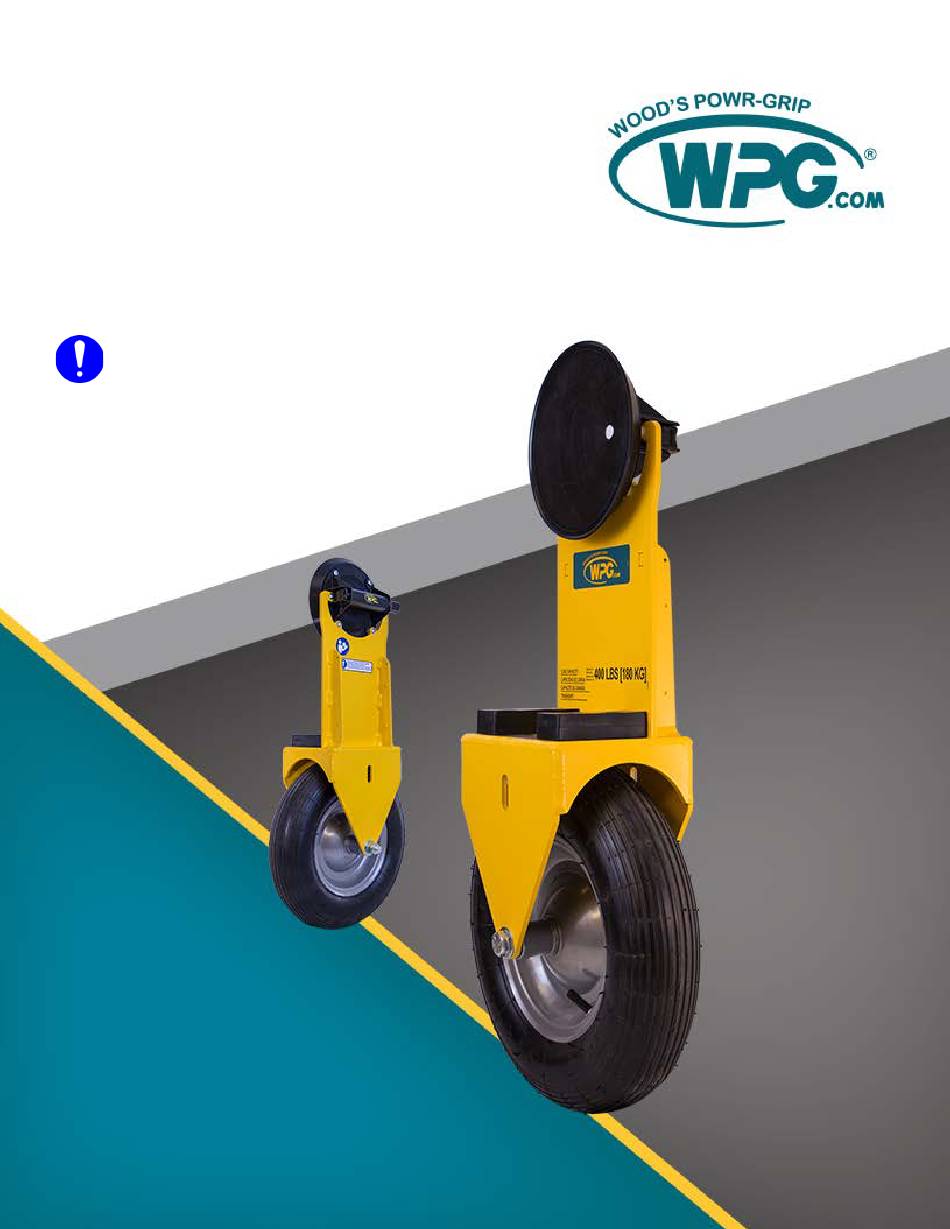

ALL-TERRAIN DOLLY
Stock number: 96670AM
Original Instructions © Wood's Powr-Grip Co., Inc.
Rev 3.0/2-24
1
908 W. Main • P.O. Box 368
Laurel, MT USA 59044
(1) 800-548-7341
(1) 406-628-8231
www.wpg.com
ATD1: #35003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 96670AM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WPG 96670AM

Summary of Contents for WPG 96670AM

  • Page 1 MANUAL 908 W. Main • P.O. Box 368 Laurel, MT USA 59044 (1) 800-548-7341 (1) 406-628-8231 www.wpg.com READ AND UNDERSTAND BEFORE USING THIS EQUIPMENT ALL-TERRAIN DOLLY Stock number: 96670AM Original Instructions © Wood’s Powr-Grip Co., Inc. Rev 3.0/2-24 ATD1: #35003...
  • Page 2 ATD1: #35003 Rev 3.0/2-24...

  • Page 3: Table Of Contents

    Transporting the Dolly ......................12 INSPECTIONS, TESTS AND MAINTENANCE ..........13 ..........13 ETACH THE UP FROM THE OLLY REPLACEMENT PARTS................13 REGISTRATION AND LIMITED WARRANTY ..........14 WPG P ...............14 EGISTER THIS RODUCT ..............14 BOUT THE IMITED ARRANTY Obtaining Warranty Service or Repair Service..............14 Rev 3.0/2-24...

  • Page 4: Specifications

    SPECIFICATIONS Product Designed for use with two or more people, this fixed-wheel device provides a way to transport glass or Description other materials over rough terrain, using vacuum to attach a load. 400 lbs [180 kg] with 3 or more users 200 lbs [90 kg] with 2 users Load 100 lbs [45 kg] with 1 user...

  • Page 5: Features

    FEATURES Features shown here are underlined on their first appearance in each section. WHEEL WITH PNEUMATIC TIRE RUBBER BUMPER VACUUM PAD HAND CUP PLUNGER RED-LINE INDICATOR VALVE RELEASE LEVER For information about specific parts, see “REPLACEMENT PARTS”. Rev 3.0/2-24 ATD1: #35003...

  • Page 6: Intended Use

    1..A “single piece” of material includes curtainwall assemblies, unitized glazing systems and similar construction units. 2..Vacuum pads made from a heat-resistant rubber compound can enable you to lift loads with higher surface temperatures. Contact WPG or an authorized dealer for more information.

  • Page 7: Inadvertent Loading

    INTENDED USE NADVERTENT OADING Make sure to account for any inadvertent loading that may negatively affect lifting capacity, such as external force that effectively increases load weight (eg, when a load of sheet material reacts to wind gusts). PERATING NVIRONMENT Make sure the dolly is intended for use in each work environment, given the following restrictions: •...

  • Page 8: Use

    EFORE SING THE OLLY Make sure the dolly is capable of performing each intended task, and determine the number of users needed (see “SPECIFICATIONS” and “INTENDED USE”). Remove all shipping materials and save them with the shipping container for future use. Taking Safety Precautions •...
  • Page 9 2) Starting with a load in the upright orientation, attach the dolly either to a vertical edge or to the lower, horizontal edge. • For vertical attachment, center the dolly between the top and bottom of one vertical edge of the load (fig. 2A). •...
  • Page 10 Pump the plunger until the red-line indicator stays hidden (figs. 4A-B), indicating that the vacuum pad is securely attached. After the dolly is attached, allow the weight of Make sure rubber bumpers the load to rest on the bumpers. This may support full weight of load.

  • Page 11: T O Transport The Load

    RANSPORT THE Perform the following actions concurrently: • Position a user at each end, to guide the load and ensure its stability (fig. 1A). Note: Each user should support no more than 50 lbs [23 kg] of the load weight while the dolly is in use.

  • Page 12: Monitoring The Red-Line Indicator

    • Move and stop the dolly as needed, making sure all users assist in controlling speed and stability (fig. 1C). Monitoring the Red-Line Indicator Always monitor red-line indicator when dolly is in use. Check the red-line indicator (circled in fig. 1D) frequently, to make sure the vacuum pad is securely attached to the load.

  • Page 13: T O Remove The Dolly From The Load

    EMOVE THE OLLY FROM THE Make sure load is fully supported before releasing vacuum pad. Always use proper technique to lift load. As one of more users continue to maintain load stability, carefully set one corner of the load on the ground or a stable support until there is no load weight on the dolly (fig.

  • Page 14: After Using The Dolly

    FTER SING THE OLLY Caution: Do not set the dolly against any surface that could soil or damage the vacuum pad. Use the cover supplied to keep the vacuum pad clean (fig. 1A). Storing the Dolly Store the dolly in a clean, dry location. Transporting the Dolly Secure the dolly in the original shipping container with the original shipping materials or equivalent.

  • Page 15: Inspections, Tests And Maintenance

    Wheel with 15¼" OD Pneumatic Tire 49290 Rubber Bumper 29353 Nylon Pad Cover 12815AM Nylon Spacer 10005 1-4/20 x 1" Pan Head Machine Bolt ERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS WPG.COM AVAILABLE AT OR THROUGH AN AUTHORIZED DEALER Rev 3.0/2-24 ATD1: #35003...

  • Page 16: Registration And Limited Warranty

    For customers in the U.S. and Canada: Go to the EXCHANGES, REPAIRS, & WARRANTIES page at wpg.com and click the applicable link. Alternatively, you may contact the WPG Technical Service Department (see contact information below). For customers in all other localities: Contact the WPG Technical Service Department (see contact information below) or your dealer for assistance.
