Summary of Contents for Sensidyne Gilian Go-Cal Pro

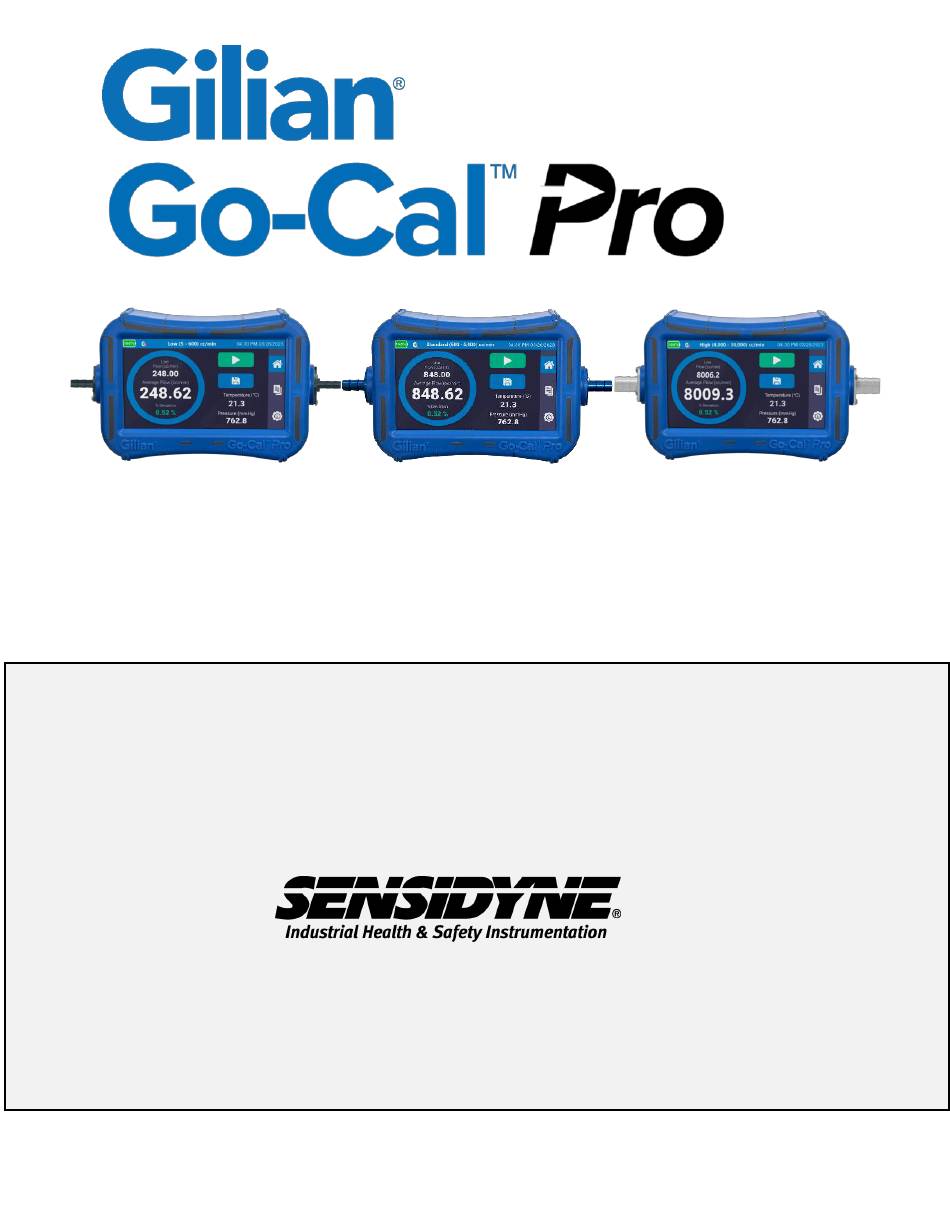

- Page 1 AIR FLOW CALIBRATORS Operation Manual (This Manual Covers All Go-Cal Pro Kit Models) Sensidyne Document No. 360-0266-01 - Rev B Circle N, Suite 100 • St. Petersburg, FL 33716 USA 1000 112 (800) 451-9444 • +1 (727) 530-3602 www.Sensidyne.com • info@Sensidyne.com...
- Page 2 This Page Intentionally Left Blank...
- Page 3 Page I Gilian Go-Cal Pro – Operation Manual Firmware Version Firmware Version 1.0.1 or Later Sensidyne Document No. 360-0266-01 – Rev B © 2023 Sensidyne, LP...
-
Page 4: Quality Policy Statement
Page II Gilian Go-Cal Pro – Operation Manual Quality Policy Statement At Sensidyne, we are committed to providing products and services that consistently meet customer needs and comply with all applicable statutory and regulatory requirements. Our products are designed, manufactured and calibrated in accordance with standards ISO 9001:2015, ISO/IEC 17025:2017, ISO/IEC 80079-34, ATEX Directive 2014/34/EU, and IECEx, where applicable. -
Page 5: Warranty
Gilian Go-Cal Pro – Operation Manual Warranty Sensidyne warrants that, at the time of delivery, the Go-Cal Pro shall be free of all defects in workmanship and material. Sensidyne will repair or replace, at its sole option, any Go- Cal Pro found to be defective by Sensidyne, if notified by Purchaser within the Warranty time period. -
Page 6: Table Of Contents
Page IV Gilian Go-Cal Pro – Operation Manual Table of Contents Firmware Version ......................I Quality Policy Statement ..................... II Warranty ........................III Table of Contents ....................... IV SECTION ONE: Preface ..................... 1 WARNINGS ........................ 3 Certifications, Approvals and Compliances ..............5 SECTION TWO: Introduction .................. -
Page 7: Section One: Preface
SECTION ONE: Preface Proprietary Notice The intended use of this manual is exclusive to owners of Gilian Go-Cal Pro Air Flow Calibrator. The material within this manual is proprietary information and is to be used only to understand, operate, and maintain the instrument. By... - Page 8 Page 2 Gilian Go-Cal Pro – Operation Manual Disclaimer THE SELLER ASSUMES NO RESPONSIBILITY WHATSOEVER, TO ANY PARTY WHOSOEVER, FOR ANY PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH RECEIVED BY OR RESULTING FROM, IN WHOLE, OR IN PART, THE IMPROPER USE, INSTALLATION, OR STORAGE OF THIS...
-
Page 9: Warnings
DO NOT operate with a dirty or blocked inlet filter or kinked tubing. DO NOT attempt to repair or modify the instrument, except as specified in the Operation Manual. If repair is needed, contact the Sensidyne Service Department or local authorized service center to arrange for a Returned Material Authorization (RMA). - Page 10 Flow Calibrator as specified. Battery is nominal 3.2V (3.6V max.). Caution: The unit may become warm during charging. Go-Cal Pro batteries may only be replaced by an authorized Sensidyne Service Center. NCA batteries must be promptly disposed of in a manner that corresponds to local regulatory requirements for Lithium Batteries.
-
Page 11: Certifications, Approvals And Compliances
Page 5 Gilian Go-Cal Pro – Operation Manual Certifications, Approvals and Compliances The Go-Cal Pro is EN 61010-1, CE, RoHS and EMC compliant. The Go-Cal Pro contains an internal battery which has been approved for shipping and transport per UN/DOT 38.3 and IEC 62133-2 (2 Edition). -
Page 12: Section Two: Introduction
Page 6 Gilian Go-Cal Pro – Operation Manual SECTION TWO: Introduction 2.1. Product Description The Go-Cal Pro Air Flow Calibrator is an easy to use calibration system used for setting the flow rate of air sampling equipment. The system is comprised of a venturi/critical orifice flow path that uses highly accurate pressure differential sensor technology to derive precise airflow. -
Page 13: Theory Of Operation
Page 7 Gilian Go-Cal Pro – Operation Manual 2.2. Theory of Operation The Go-Cal Pro uses venturi and orifice plate methods to create a steady air flow across two pressure sensors. This operation works by measuring the difference in pressure at two different locations. The pressure difference is created by reducing the diameter of the pipe causing the air to flow faster. -
Page 14: Section Three: Set-Up
Page 8 Gilian Go-Cal Pro – Operation Manual SECTION THREE: Set-Up 3.1. Go-Cal Pro Identifiers The Go-Cal Pro Air Flow Calibrator contains the following components: Figure 3.1 A LCD Display B Outlet Barb (Vacuum) C Inlet Barb (Pressure) D USB-C Port (Charging and Communication) -
Page 15: Go-Cal Pro Components
Page 9 Gilian Go-Cal Pro – Operation Manual 3.2. Go-Cal Pro Components The ON/OFF Power Button, located on left side of the unit, turns the unit on and off. Once turned on, the LCD Display screen that will illuminate and display the “Go-Cal Pro”... -
Page 16: Preparation
Page 10 Gilian Go-Cal Pro – Operation Manual 3.3. Preparation The Go-Cal Pro Air Flow Calibrator arrives fully assembled. The kits include Air Flow Calibrator(s), Power Supply, USB-C Cable, Tubing, Adapters, and Flash Drive with Manual, Quick Start Guide and Software. -
Page 17: System Set Up
Page 11 Gilian Go-Cal Pro – Operation Manual 3.4. System Set Up This section describes the steps necessary to set up the Go-Cal Pro Calibration System. This includes initial setup, connecting the tubing, and setting up the sampling source. Figure 3.4 shows how a complete Go-Cal Pro Calibration System may be configured. -
Page 18: Connecting The Sampling Source
Page 12 Gilian Go-Cal Pro – Operation Manual 3.5. Connecting the Sampling Source The sampling source to be calibrated may be either a positive pressure device (exhausts air), connected to the left hose barb or a negative pressure device (i.e. -
Page 19: Section Four: General Operation
Page 13 Gilian Go-Cal Pro – Operation Manual SECTION FOUR: General Operation 4.1. Overview The Go-Cal Pro has the capability of reading and recording flow rate over the range of 5 cc/min to 30,000 cc/min (30 LPM) by use of three distinct flow rate models (Low ranges: 5-600 cc/min, Standard: 600 –... -
Page 20: Navigation
Page 14 Gilian Go-Cal Pro – Operation Manual 4.2. Navigation The Go-Cal Pro Air Flow Calibrator uses an intuitive touchscreen LCD Display for menu navigation and operation. The menu bar is vertical and is located on the right edge of the screen. The menu bar tabs are summarized in the following table. -
Page 21: Setting Operational Functions
Page 15 Gilian Go-Cal Pro – Operation Manual 4.3. Setting Operational Functions The operation of the calibrator is controlled by entering the Settings “ ” menu tab and selecting the operational parameters that the user desires for sampling. The settings menu has submenus that allow control of related functions. A Settings reference display appears in the following table. - Page 22 Page 16 Gilian Go-Cal Pro – Operation Manual Display Image Description Selecting Reference Temperature – Touch reference temperature button on the screen below the text. The Input Keyboard will appear. Note: User may change from ⁰F to ⁰C on Settings Display Tab.
- Page 23 Page 17 Gilian Go-Cal Pro – Operation Manual Display Image Description Selecting Percent Deviation – Touch the button on the screen below the text. A window will appear. Select a threshold from 0.5 – 5%. This threshold will be utilized until changed. Scroll to selections below the displayed values.
- Page 24 Page 18 Gilian Go-Cal Pro – Operation Manual Display Image Description Selecting Language – Touch the button on the screen below the text. A window will appear with languages to choose from. Select the language preference and the button will now change to the selected language.
- Page 25 Page 19 Gilian Go-Cal Pro – Operation Manual Display Image Description Selecting Temperature Units – Touch the button on the screen below the text to switch from degrees Fahrenheit (⁰F) to degrees Celsius (⁰C). Note: The temperature will be displayed in the select units on the Home Screen and corresponding records.
- Page 26 Page 20 Gilian Go-Cal Pro – Operation Manual Display Image Description Selecting Sleep Timer - Touch the button on the screen below the text. This feature allows for the user to save power by setting a period of inactive time before the unit shuts down.
- Page 27 Page 21 Gilian Go-Cal Pro – Operation Manual Display Image Description Factory Reset - Touch the button on the screen to reset the Go-Cal Pro to factory conditions. A window will appear asking the user to confirm the reset. Touch the Yes button to confirm or No button to cancel the reset.
-
Page 28: Home Screen Displays And Operation Features
Page 22 Gilian Go-Cal Pro – Operation Manual 4.4. Home Screen Displays and Operation Features The access to Home screen is controlled by entering the Home “ ” menu tab. The Home Screen will adjust based on the user settings selected. Home Screen displays;... - Page 29 Page 23 Gilian Go-Cal Pro – Operation Manual Display Image Description Home Screen – The Ambient Pressure is displayed in in/H O, mmHg, kPa, or hPa. The Pressure units can be edited on the Settings Display page. Home Screen Sample Start Button - To Start a Sample Set - Connect the flow source to the calibrator and touch the Play button icon “...
- Page 30 Page 24 Gilian Go-Cal Pro – Operation Manual Display Image Description Home Screen – Statistical information in the form of Percent Deviation is displayed for the averaging sample set. Note: The statistical percentage font will turn from green if the percent difference between individual samples is outside the designated range.
- Page 31 Page 25 Gilian Go-Cal Pro – Operation Manual Display Image Description Pump Serial Number Keyboard - Enter in the Pump or Flow Source Serial Number. Touch the forward arrow to advance to the Sample ID keyboard. User Name Keyboard - Enter in the operator information.
-
Page 32: Reports And Data Storage
Page 26 Gilian Go-Cal Pro – Operation Manual 4.5. Reports and Data Storage The access to reports is controlled by entering the Reports “ ” menu tab. The Most Recent Reports screen will update once you have saved your record. The screen displays the most recent calibration reports by date, allows for preview and for deletion of single or all reports. - Page 33 Page 27 Gilian Go-Cal Pro – Operation Manual Display Image Description Preview a Report - With the report line highlighted, touch the Preview button. Report Preview Screen (Top Half) – displays the top portion of the report. Scroll down the display to view remainder of report.
- Page 34 Page 28 Gilian Go-Cal Pro – Operation Manual Display Image Description Delete Single Report – with the report line highlighted, touch the Delete button on the display screen. Delete report window appears. Touch the Yes button to delete the single report.
-
Page 35: Smartcal
Page 29 Gilian Go-Cal Pro – Operation Manual 4.6. SmartCal The Go-Cal Pro utilizes the USB-C port for use with the SmartCal function of the Gilian GilAir Plus pumps, by attaching to the pump docking station to the Go-Cal Pro using the SmartCal Calibration Kit P/N 911-1901-01-R (Not Included). -
Page 36: Battery Charging And Capacity
Page 30 Gilian Go-Cal Pro – Operation Manual 4.10. Battery Charging and Capacity The battery system in the Go-Cal Pro takes advantage of a new lithium chemistry known as NCA. This battery assembly is much safer than other lithium chemistries and provides a long service life. - Page 37 Page 31 Gilian Go-Cal Pro – Operation Manual Manufactured by: Sensidyne, LP 1000 112 Circle N, Suite 100 St. Petersburg, Florida 33716 U.S.A. 800-451-9444 • +1 727-530-3602 • [fax] +1 727-539-0550 www.Sensidyne.com • info@Sensidyne.com Authorized EU Representative Schauenburg Electronic Technologies GmbH Weseler Str.
- Page 38 Circle N, Suite 100 • St. Petersburg, FL 33716 USA 1000 112 (800) 451-9444 • +1 (727) 530-3602 www.Sensidyne.com • info@Sensidyne.com...
