Utopia Illusion Medical Cabinet Installation Manual

Installation Guide
Mirror Cabinet
Important Information
•
Read the instructions carefully.
•
Check the product for any signs of damage and remove any protective film.
•
It is recommended that this product is fitted by a suitably qualified Part P registered electrician in
accordance with current IEE & Building Regulations.
•
It is the installer's responsibility to carry out a thorough assessment of wall type and the weight of
the cabinet and use appropriate fixings.
•
Care should be taken when drilling walls to avoid any hidden wires or pipes.
•
To prevent the cabinet falling down this product must be fixed using the wall attachment device
provided.
•
The light source in this luminaire is not replaceable. When the light source reaches its end of life,
the whole luminaire must be replaced.
•
The terminal block used to connect the leads to the electrical supply can be of either the screw- or
screw-less type and should be rated at 240V 6A with 4 terminals. The cable tails do not need to be
crimped when connected to the terminal block.
•
This product should be used only with a mains supply that is protected by a 30mA Residual Current
Device.
•
This product is IP20 rated and is only suitable for installation in Outside Zones in a bathroom. It is
not suitable to be fitted in zones 0, 1 or 2.

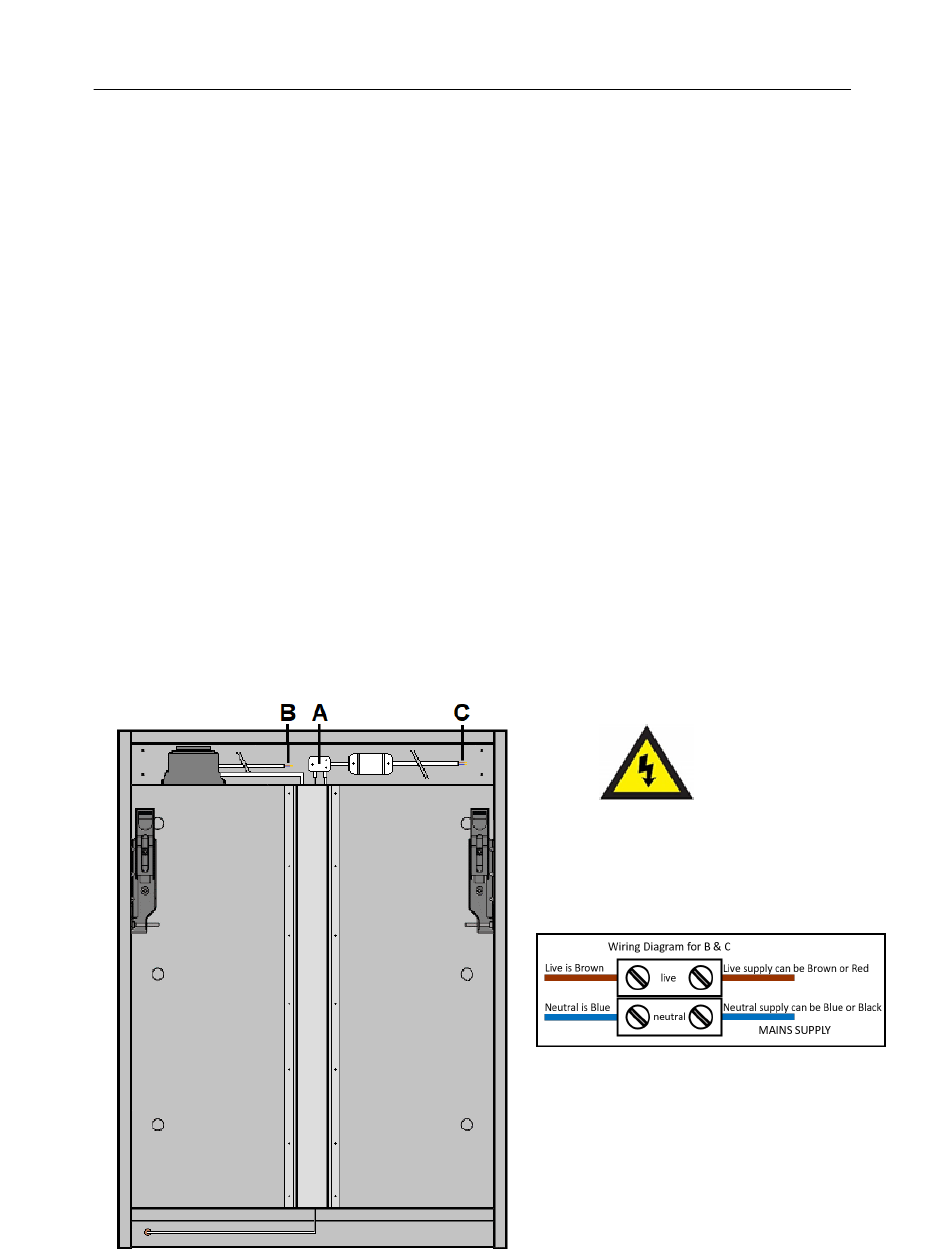

Connection to Mains Electrics
1. Turn off the electrical supply.
2. The top front panel of the cabinet can be removed to access the electrical connections.
3. Ensure that the LED light connectors are plugged into the light driver (A).
4. Connect the electrical supply in the bathroom to the shaver socket cable (B).
5. Connect the electrical supply in the bathroom to the light driver cable (C).
6. Turn the electrical supply back on and check that the lights and shaver socket function as required.
WARNING
RISK OF ELECTRIC SHOCK
Turn off mains electric prior to commencing
work.
