EMERGE CONSOLE OWNER’S MANUAL TABLE OF CONTENTS: Chapter 1: Safety Instructions Safety Instructions ..................................5 Chapter 2: Product Overview Emerge LED Overview ................................9 Chapter 3: Programming & Operation Heart Rate Monitoring ................................11 Heart Rate Control ................................12 Workout Program Descriptions ............................13 Chapter 4: Emerge LED Console Console Navigation ................................14 Advanced Console Functions .............................17 Console Assembly ................................21... -
Page 5: Chapter 1: Safety Instructions
45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness professional on the correct use of this product. - Page 6 To disconnect, turn power OFF at the ON/OFF switch if applicable, then remove plug from electrical outlet. • Never operate a TRUE product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or even partially immersed in water. Contact TRUE Customer Service for a replacement.
- Page 7 Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug the power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service.
- Page 8 Important Electrical Requirements – 120V: Your TRUE equipment requires a dedicated 120 volt, alternating current (AC), 20 amp grounded outlet circuit. This means nothing else can be plugged into the same circuit. Most power circuits are rated for this 120V AC 20 amp requirement, but you must ensure the equipment does not share the circuit with anything else.
-
Page 9: Chapter 2: Product Overview

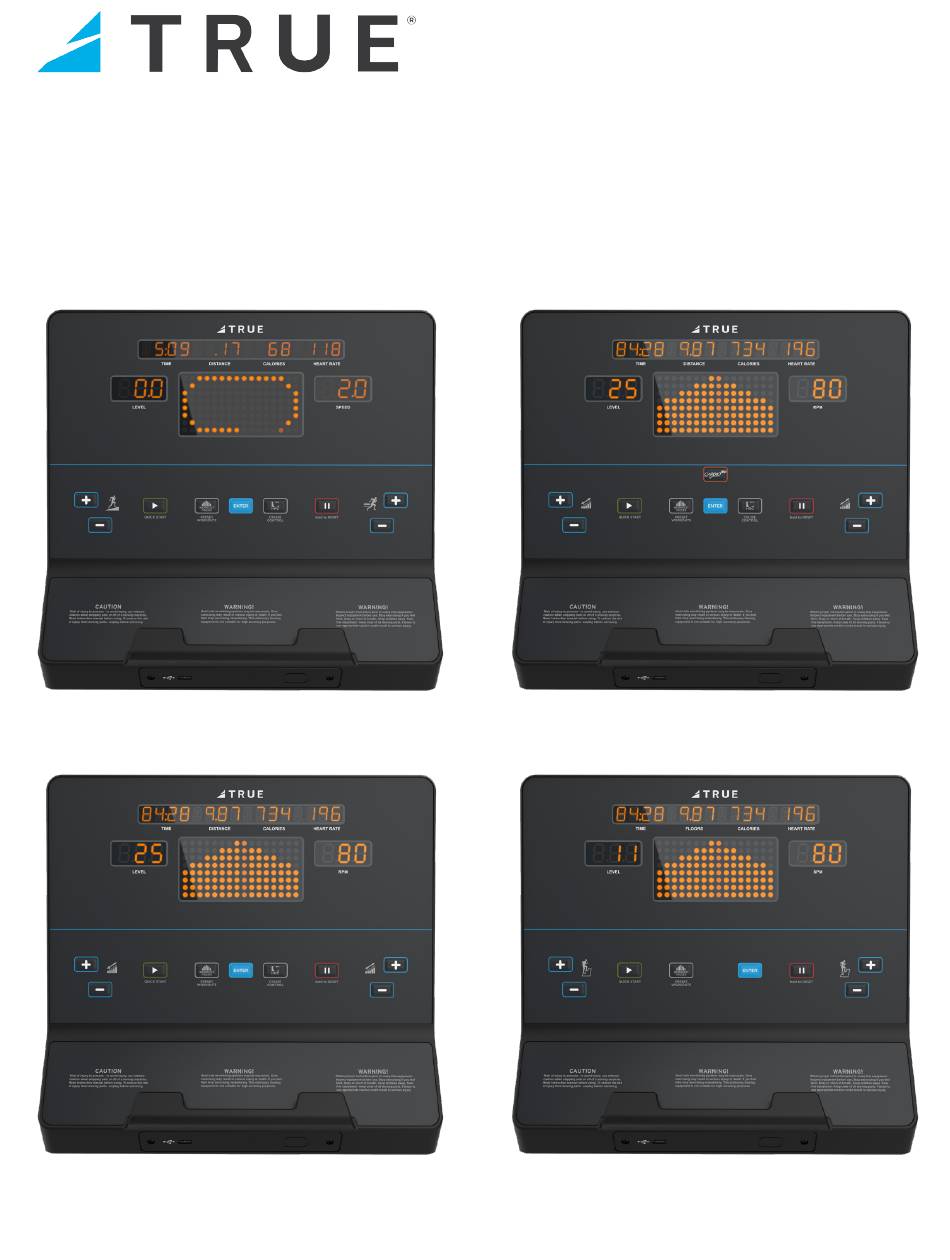

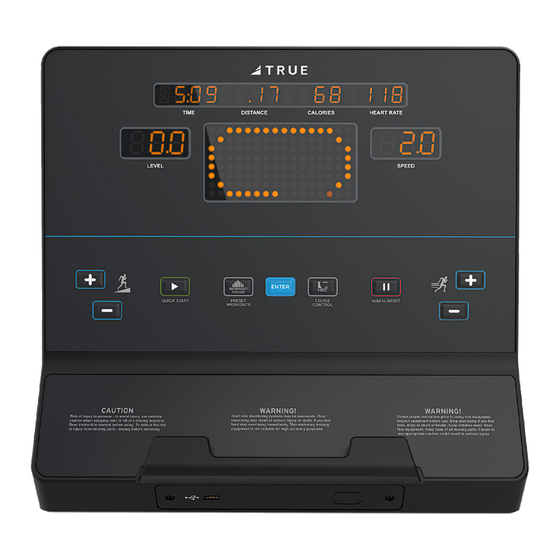

CHAPTER 2: PRODUCT OVERVIEW EMERGE OVERVIEW: Treadmill: Upper LED Display Incline LED Speed LED Display Display Lower LED Display Incline Speed Keys Keys Stop Start Warning Reading Rack Decal Workout HRC Cruise USB Port Enter Finder Control Bike and Elliptical: Upper LED Display Level... - Page 10 CHAPTER 2: PRODUCT OVERVIEW EMERGE OVERVIEW: Incline Keys: Manually increases or decreases the incline of the treadmill. Note: Workload will replace incline for the bike and elliptical. Start: Allows the user to begin a Quick Start workout or preset workout. Reading Rack: A ledge on the console can be used to hold a book, magazine, e-reader, or tablet computer during a workout.
-
Page 11: Chapter 3: Programming & Operation
CHAPTER 3: PROGRAMMING & OPERATION caution: The safety key must be in place on the machine, and should be attached to the user’s clothing. HEART RATE MONITORING: The machine can monitor a user’s heart rate using either a Polar® compatible chest strap or the metal grips on the hand rails (called contact heart rate or CHR pads). -
Page 12: Heart Rate Control
The TRUE HRC system is unique because users must enter the key parameters of the workout; target heart rate, maximum speed, maximum incline, and time, prior to starting the HRC workout. As users approach their target heart rate, the machine’s computer automatically takes over and changes the speed and/or incline automatically to keep them near their... -
Page 13: Workout Program Descriptions
CHAPTER 3: PROGRAMMING & OPERATION WORKOUT PROGRAM DESCRIPTIONS: Quick Start: A workout in which the user controls all settings. The workout continues until it is ended by the user. Cardio 360™ Quick Start: (Only Available on the XS1000, XC400, & XC900) Get right into a pre-set 20-minute workout designed to shape and tone every major muscle group. -
Page 14: Console Navigation
CONSOLE NAVIGATION: Selecting a Preset Workout: To begin a preset workout, press the Workout Finder button (A) until the desired program is shown in the Upper LED Display (B) and then press the Enter button (C). *To begin a Target HRC Workout, press the HRC Cruise Control button (D) followed by the Enter button (C). Workout Data Entry: Before beginning a preset workout, the console will ask the user for information in order to give more accurate workout data. - Page 15 CHAPTER 4: EMERGE OPERATION CONSOLE NAVIGATION: Upper LED Display (VC900 Only): During a workout on the VC900, the Emerge console rotates between three different data sets on the Upper LED Display. For non-target HRC workouts, the following data sets will appear: Non-Target HRC Workout Primary Data Set TIME...
- Page 16 CONSOLE NAVIGATION: Workout Summary: Workouts can be ended by the user pressing the Stop button (A) or by completing the time or distance in a preset workout. Once a workout has ended the console will display a workout Summary which will give the user an overview of their workout which includes;...
-
Page 17: Advanced Console Functions
CHAPTER 4: EMERGE OPERATION ADVANCED CONSOLE FUNCTIONS: Entering Maintenance Mode: Press and hold the Up Incline button (A) until the unit beeps (about 3 seconds). Next, release the Up Incline key and immediately press and hold the Enter button (B) until the unit beeps again (about 3 seconds). Lastly, release the Enter button and when the Upper LED Display (C) reads “Maintenance Mode”, press the Enter button (B) to enter Maintenance mode. - Page 18 CHAPTER 4: EMERGE OPERATION ADVANCED CONSOLE FUNCTIONS: Maintenance Mode Navigation: Within a category, users can scroll through available options using the Up and Down Incline/Workload keys (A). Press the Enter button (B) to select a setting shown in the Upper LED Display (C) and use the Speed keys (D) to update the value (Note: For bikes and ellipticals, the Workload keys [A] are used to update the values too).
- Page 19 CHAPTER 4: EMERGE OPERATION ADVANCED CONSOLE FUNCTIONS: Diagnostics Menu: The diagnostics menu contains various settings as well as tools used to help diagnose errors and performance issues. Title Description Displays an accumulative count of the total number of hours the unit Total Time: has been used.
- Page 20 ADVANCED CONSOLE FUNCTIONS: Configuration Menu: WARNING: Misconfiguration of the console may cause damage to the unit and void the manufacturer warranty. If necessary, please contact TRUE Fitness Technical Support at 800-883-8783 for assistance. Title Description Model: Displays the model on which the console is installed.
-
Page 21: Console Assembly
CHAPTER 4: EMERGE OPERATION CONSOLE ASSEMBLY: Console Wire Connections: Connect the Auxillary Power Supply (A), USB Data Cable (B), and Ground Wire Ring Terminal (C) as shown below. Tuck the Coaxial, COMM, Fan, and CSAFE cables and any excess cord length inside the pedestal. Note: Ensure the rubber boot is positioned over the coaxial cable connection point. -
Page 22: Chapter 5: Customer Service Contacting Service
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST. -
Page 23: Reporting Freight Or Parts Damage
Please make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours.
