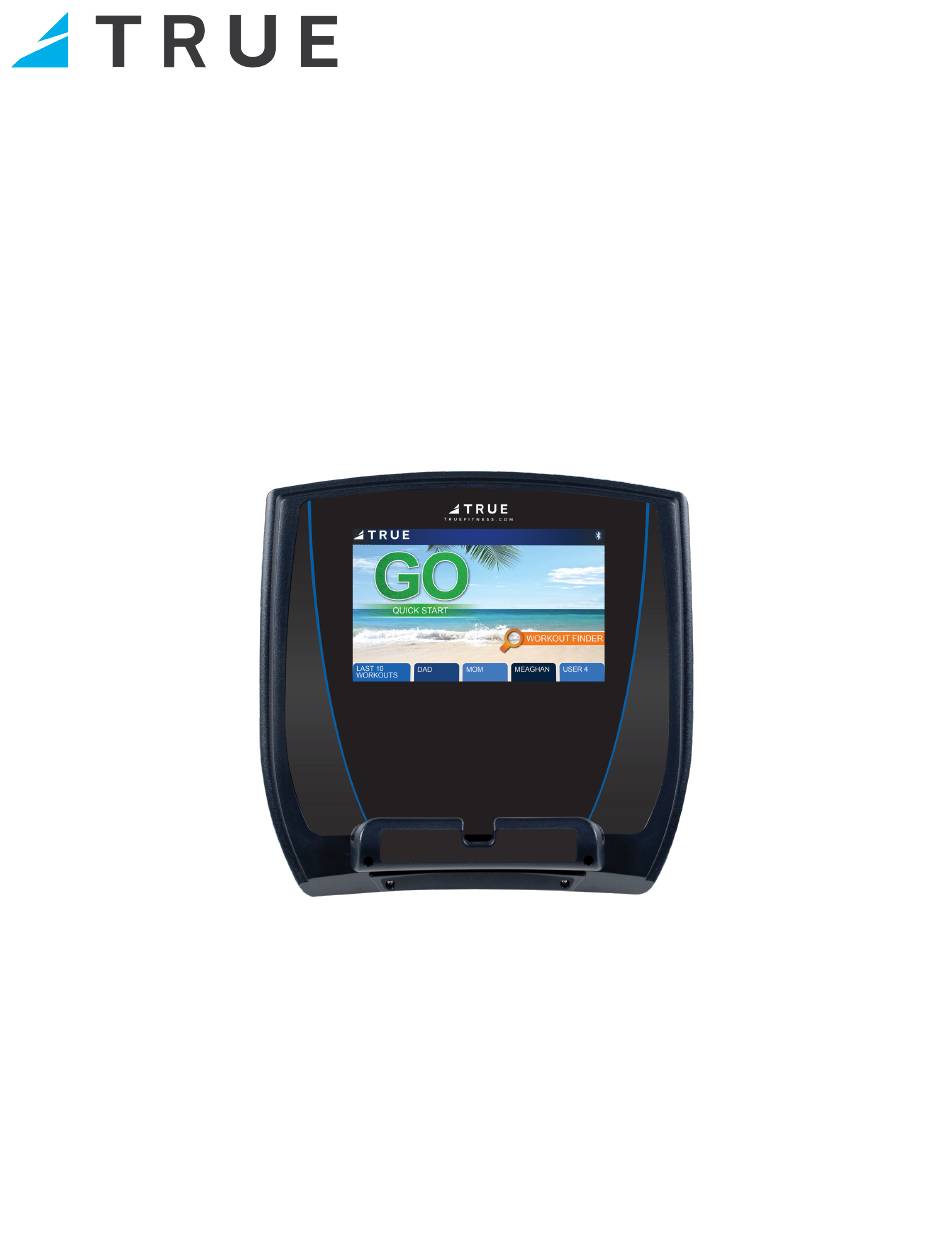

- Page 1 T9 TOUCHSCREEN CONSOLE OWNER’S MANUAL Console Manual SKU #: MAN-CMTCH9-19 Model #: T9 Touchscreen Console Revision 010320...
- Page 2 T9 TOUCHSCREEN CONSOLE OWNER’S MANUAL IMPORTANT: All products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up-to-date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/resources/document-library/ IMPORTANTE: Todos los productos mostrados son prototipos.
- Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.
-
Page 4: Table Of Contents
T9 TOUCHSCREEN CONSOLE OWNER’S MANUAL TABLE OF CONTENTS: Chapter 1: Safety Instructions Safety Instructions ..................................5 Chapter 2: Product Overview T9 Touchscreen Console Overview .............................9 Touchscreen Introduction ..............................10 Touchscreen Navigation ..............................10 Chapter 3: Programming & Operation Heart Rate Monitoring ................................11 Heart Rate Control ................................12 Workout Program Descriptions ............................13... -
Page 5: Chapter 1: Safety Instructions
45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness professional on the correct use of this product. - Page 6 To disconnect, turn power OFF at the ON/OFF switch if applicable, then remove plug from electrical outlet. • Never operate a TRUE product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or even partially immersed in water. Contact TRUE Customer Service for a replacement.
- Page 7 Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug the power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service.
-
Page 8: Important Safety Instructions
Important Electrical Requirements – 120V: Your TRUE equipment requires a dedicated 120 volt, alternating current (AC), 20 amp grounded outlet circuit. This means nothing else can be plugged into the same circuit. Most power circuits are rated for this 120V AC 20 amp requirement, but you must ensure the equipment does not share the circuit with anything else. -
Page 9: Chapter 2: Product Overview

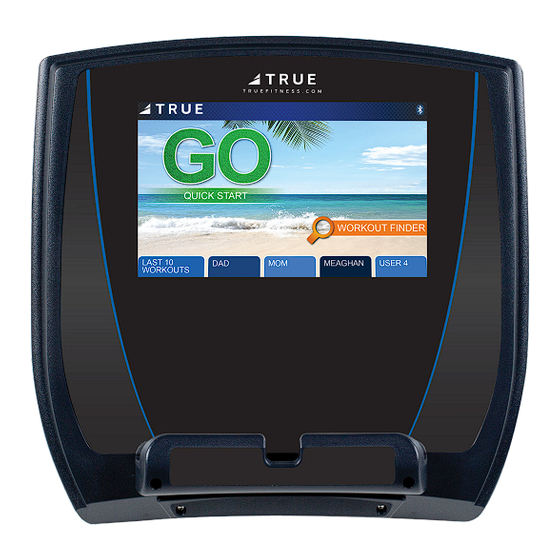

CHAPTER 2: PRODUCT OVERVIEW T9 TOUCHSCREEN CONSOLE OVERVIEW: Touchscreen Display Reading Rack Truefitness.com / 800.426.6570 / 636.272.7100 9 of 29... -
Page 10: Touchscreen Introduction
This ledge on the console can be used to hold a book, magazine, e-reader, or tablet computer during a workout. TOUCHSCREEN INTRODUCTION: The T9 touchscreen console utilizes a fully integrated capacitive touch screen display and a multi-screen interface to provide a state of the art and user friendly workout. -
Page 11: Chapter 3: Programming & Operation
CHAPTER 3: PROGRAMMING & OPERATION caution: The safety key must be in place on the machine, and should be attached to the user’s clothing. HEART RATE MONITORING: The machine can monitor a user’s heart rate using either a Polar® compatible chest strap or the metal grips on the hand rails (called contact heart rate or CHR pads). -
Page 12: Heart Rate Control
The TRUE HRC system is unique because users must enter the key parameters of the workout; target heart rate, maximum speed, maximum incline, and time, prior to starting the HRC workout. As users approach their target heart rate, the machine’s computer automatically takes over and changes the speed and/or incline automatically to keep them near their... -
Page 13: Workout Program Descriptions
CHAPTER 3: PROGRAMMING & OPERATION WORKOUT PROGRAM DESCRIPTIONS: Quick Start: A workout in which the user controls all settings. The workout continues until it is ended by the user. Manual: Users enter their weight, workout time or distance. The user controls both the SPEED and INCLINE of the machine throughout the workout. - Page 14 CHAPTER 3: PROGRAMMING & OPERATION WORKOUT PROGRAM DESCRIPTIONS: Custom Pace: Users set up their own speed intervals. Easy to change setup screens allow users to customize any PACE SETTER (RPM) profile to add variation to their cardio session. Custom Ultra: If users are having trouble finding a workout that fits their specific needs, try setting up the Custom Ultra! This completely customizable workout setup enables WORKLOAD and PACE SETTER interval control as well as the ability to control interval time.
-
Page 15: Chapter 4: T9 Touchscreen Console
CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION TOUCHSCREEN NAVIGATION: Home Screen: The Home Screen is displayed on the console when there is no workout in progress. From this screen the user is able to select from various options to begin a workout. - Page 16 CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION TOUCHSCREEN NAVIGATION: Selecting a Preset Workout: Access preset workouts by touching Workout Finder on the home screen. View the workouts by using the scroll bar (A) to sweep up and down the selection list, highlight the desired workout, and touch Next (B) to select it.
- Page 17 CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION TOUCHSCREEN NAVIGATION: Workout Data Screens: During any workout, a Workout Data Screen will be displayed to give the user a comprehensive visual overview of their current workout data. A) Calories / METS Display: D) Heart Rate: During the workout, this display will alternately Shows the user’s heart rate in a digital beats per minute...
- Page 18 CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION TOUCHSCREEN NAVIGATION: Workout Data Screen Controls: The Workout Data Screens contain various controls that allow users to adjust workout settings and to customize their overall workout experience. A) Change View: There are three Workout Data Screen views available. Switch between the screens by touching the center of the display.
- Page 19 CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION TOUCHSCREEN NAVIGATION: D) Source: For Bluetooth Audio and to pair a mobile device with the console name on the screen. The user is given control over volume adjustments, mute, and channel navigation. E) Show Tools: Touching the “Show Tools”...
- Page 20 CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION TOUCHSCREEN NAVIGATION: F) Stop/Pause: The “Stop/Pause” button allows the user to pause the current workout or stop it altogether and begin a two minute cooldown. Workout Summary Screen: At the end of a workout the Summary Screen will display an overview of the workout data (A). The workout data can be exported to another device through the Bluetooth connection.
-
Page 21: Advanced Console Functions
Entering Service Mode can be completed by touching and holding the upper left section of the screen (A) for 3-5 seconds or until the TRUE logo begins to blink. Next, hold the “Workout Finder” icon (B) until the “Service” screen displays. - Page 22 CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION ADVANCED CONSOLE FUNCTIONS: Summary Screen: The Summary Screen provides an overview of the unit’s current settings (values cannot be changed in this screen). A) Product Model: The model number that the console is currently configured to.
- Page 23 Utilities Menu - Product Setup: The product setup screen allows for adjustments to be made to the model configuration, TRUE’s recommendation is to only use the Setup Wizard to adjust these attributes. After touching the Setup Wizard Selection button (A), simply follow the on screen instructions to complete the setup procedure.
-
Page 24: Options Menu
Utilities Menu - Software Update: TRUE may periodically release software updates to ensure users enjoy the best workout experience available. Due to the complex nature of this procedure, it is recommended that any software update be completed by a TRUE certified service professional. -
Page 25: Factory Defaults
CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION ADVANCED CONSOLE FUNCTIONS: Options Menu: Max Workout Time: This setting will limit the amount of time that all workouts can last. By choosing the “Off ” setting, the time will be unlimited (this setting does not apply to manual workouts or distance workouts). - Page 26 CHAPTER 4: T9 TOUCHSCREEN CONSOLE OPERATION ADVANCED CONSOLE FUNCTIONS: Diagnostics Menu - Calibration/Test & Production Test: These menus are currently not used on bikes or ellipticals. Diagnostics Menu - Error Log: Error codes are an important part of troubleshooting any issues with the unit. Any time an error occurs it is entered into the error log for review by a service professional.
-
Page 27: Console Assembly
Note: Refer to the respective unit manual included with your unit for console mast and rear console cover assembly. Note: The T9 touchscreen console requires the provided 12V, 3A power adaptor to operate. Note: Ethernet cable connection is not available on the T9 touchscreen console. -
Page 28: Chapter 5: Customer Service Contacting Service
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST. -
Page 29: Reporting Freight Or Parts Damage
Please make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours.
