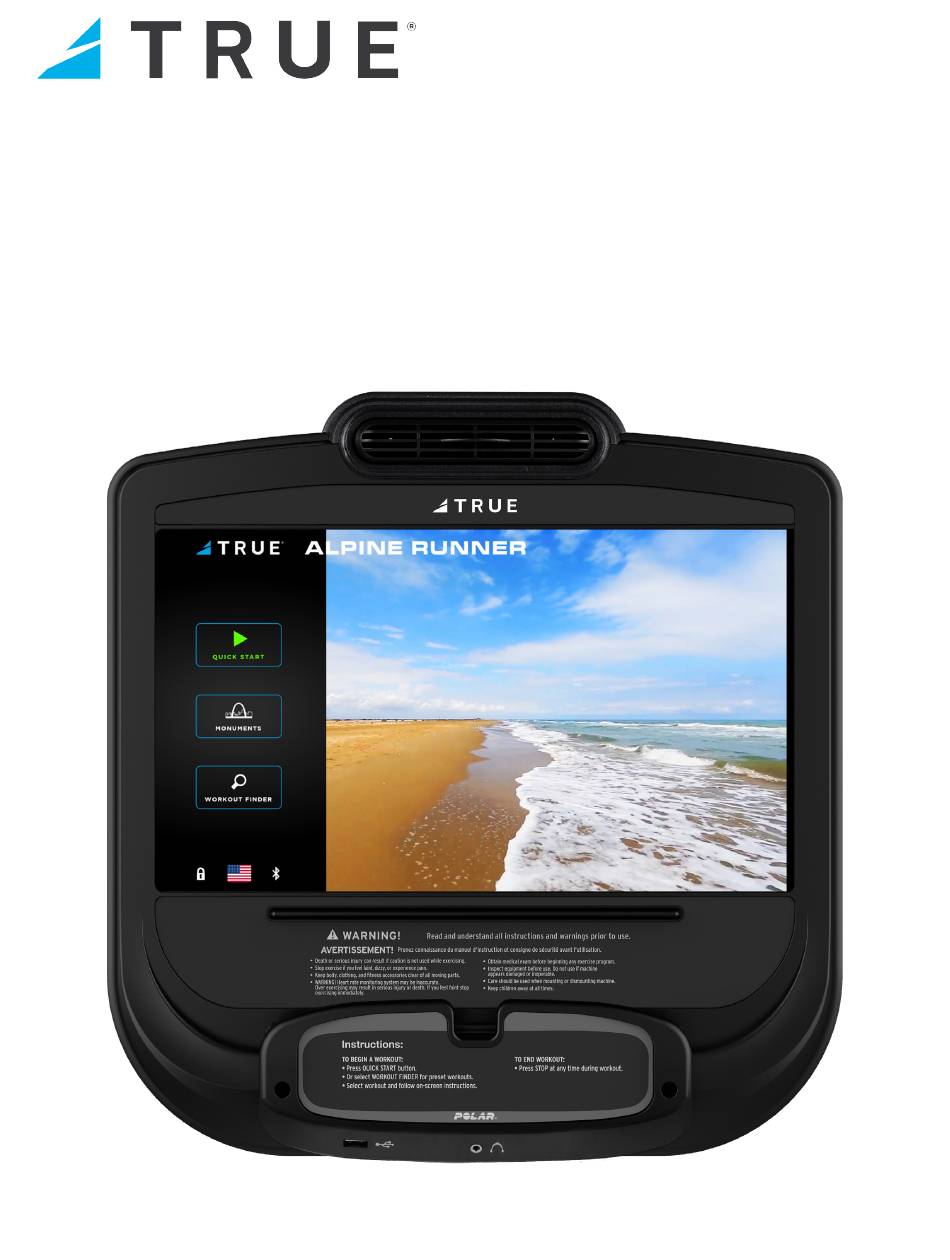

- Page 1 ENVISION CONSOLE OWNER’S MANUAL Console Manual SKU #: MAN-CUI16-19 Model #: Envision 16” Revision 061919...
- Page 2 ENVISION TOUCHSCREEN CONSOLE IMPORTANT: All products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up-to-date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/resources/document-library/ IMPORTANTE: Todos los productos mostrados son prototipos.
- Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.
-
Page 4: Table Of Contents
Outside Interactive Videos ..............................26 Idle Screen .....................................27 Workout Summary ................................27 TV Cabling Requirements for TRUE Fitness Equipment....................28 Samples of Connectivity Ports on TRUE Products ......................28 TV Solution Options ................................29 Internet Requirements .................................30 Broadcastvision TV Preset Programming ........................30 Maintenance Menus ................................31 Console Assembly ................................39... -
Page 5: Chapter 1: Safety Instructions
45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness professional on the correct use of this product. - Page 6 To disconnect, turn power OFF at the ON/OFF switch if applicable, then remove plug from electrical outlet. • Never operate a TRUE product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or even partially immersed in water. Contact TRUE Customer Service for a replacement.
- Page 7 Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug the power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service.
-
Page 8: Important Safety Instructions
Important Electrical Requirements – 120V: Your TRUE equipment requires a dedicated 120 volt, alternating current (AC), 20 amp grounded outlet circuit. This means nothing else can be plugged into the same circuit. Most power circuits are rated for this 120V AC 20 amp requirement, but you must ensure the equipment does not share the circuit with anything else. -
Page 9: Chapter 2: Product Overview Envision Overview

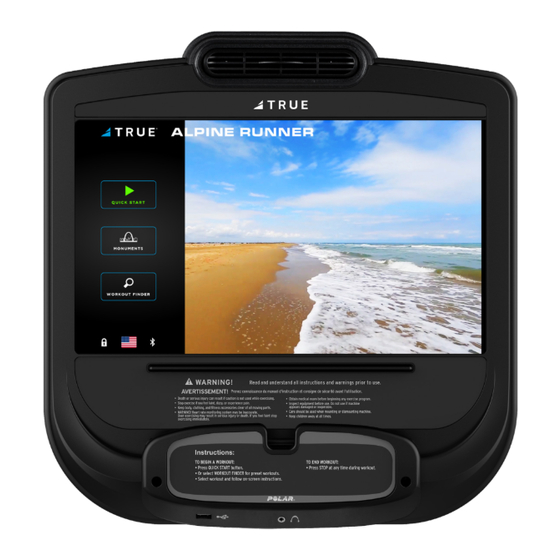

CHAPTER 2: PRODUCT OVERVIEW ENVISION OVERVIEW: Cooling Fan Touch Screen Display USB Jack Headphone Jack Warning Decal Reading Rack Truefitness.com / 800.426.6570 / 636.272.7100 9 of 41... -
Page 10: Touchscreen Introduction
Due to this, capacitive touch screens are highly responsive and do not require pressure to register a touch. TOUCH SCREEN NAVIGATION: TRUE recommends that users familiarize themselves with the different screens to ensure they are safely taking advantage of all of the features this equipment has to offer. Icon Character Map: This console uses several icons to provide users with a simplified and visually appealing workout experience. -
Page 11: Chapter 3: Programming & Operation
CHAPTER 3: PROGRAMMING & OPERATION caution: The safety key must be in place on the machine, and should be attached to the user’s clothing. HEART RATE MONITORING: The machine can monitor a user’s heart rate using either a Polar® compatible chest strap or the metal grips on the hand rails (called contact heart rate or CHR pads). -
Page 12: Heart Rate Control
The TRUE HRC system is unique because users must enter the key parameters of the workout; target heart rate, maximum speed, maximum incline, and time, prior to starting the HRC workout. As users approach their target heart rate, the machine’s computer automatically takes over and changes the speed and/or incline automatically to keep them near their... -
Page 13: Workout Program Descriptions
CHAPTER 3: PROGRAMMING & OPERATION WORKOUT PROGRAM DESCRIPTIONS: Quick Start: A workout in which the user controls all settings. The workout continues until it is ended by the user. Cardio 360™ Quick Start: (Only Available on the XS1000, XC400, & XC900) Get right into a pre-set 20-minute workout designed to shape and tone every major muscle group. - Page 14 CHAPTER 3: PROGRAMMING & OPERATION WORKOUT PROGRAM DESCRIPTIONS: Pace Ramp: (Only Available on the XC400/900, UC400/900, & RC400/900) This workout suggests PACE (RPM) increases to a maximum at the mid-point of the workout, then decreases to the finish. The PACE SETTER shows the user’s target pace throughout the workout. Leg Shaper: (Only Available on the XS1000, XC400/900, RC400/900, and UC400/900) A workout that suggests PACE changes to work the leg muscles with added intensity.
- Page 15 CHAPTER 3: PROGRAMMING & OPERATION WORKOUT PROGRAM DESCRIPTIONS: Custom HRC Intervals: Set up a custom heart rate interval. Specify WORK and REST targets and let the machine make all the adjustments. The workout begins in MANUAL control - users should gradually increase the workout intensity until the heart rate is within 10 bpm of the user’s target heart rate.
-
Page 16: Chapter 4: Envision Touchscreen Console Touchscreen Navigation
CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TOUCH SCREEN NAVIGATION: Home Screen: The Home Screen is displayed on the console when there is no workout in progress. From this screen the user is able to select from various options to begin a workout or view media. A) Quick Start Starts a Quick Start workout in which the user controls all settings. - Page 17 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TOUCH SCREEN NAVIGATION: Monuments: For the Alpine Runner only, the user can select from custom workouts based on internatonal monuments such as the Gateway Arch, Eiffel Tower, and Mount Everest. These custom workouts are based on the height of each monument displaying the current height traveled in real time (A) and total height (B) with the workout automatically ending once the user has reached the top of the monument.
- Page 18 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TOUCH SCREEN NAVIGATION: Workout Data Entry Screen: The Workout Data Entry screen enables the user to input workout parameters specific to the selected workout and the user prior to beginning the workout. To set a value, select the heading (A) of the value and manually enter a value using the keypad (B).
- Page 19 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TOUCH SCREEN NAVIGATION: Workout View Screens: During any workout a Workout View screen will be displayed to give the user a comprehensive visual overview of their current workout data. A) Distance: Displays the current distance traveled. B) Incline: Displays the average incline level.
- Page 20 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TOUCH SCREEN NAVIGATION: Workout Data Menu: The Workout Data menu displays workout data metrics during a workout. A) Workout Data Menu: The Workout Data menu enables the user to make selections on what workout data appears in the main workout screen. To select which data points are displayed, press the selection to highlight it in red and enable it to appear on the top toolbar.
- Page 21 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TOUCH SCREEN NAVIGATION: Options Menu: The Options menu contains controls that allow users to adjust settings during their workout. A) Options Menu: The Options menu enables users to customize their workout experience such as entering their weight for more accurate caloric calculation and display during a workout, adjusting the on/off functionality for the console fan, and pairing Bluetooth wireless technology enabled devices with the console.
- Page 22 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TOUCH SCREEN NAVIGATION: Change Workout: The Change Workout screen (A) enables the user to update their workout parameters such as time, intensity, and level of workout and then return to the main screen of the current workout with all previous workout data intact. Note: The workout parameters for certain preset workouts such as Quick Start and Fitness Tests are unable to be updated once the workout has begun.
-
Page 23: Tv Controls
CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE WALK/RUN TRACK: The Walk/Run Track screen displays a virtual track with a progress dot representing the user walking and/or running around the track. A) Lap Count: Displays a counter for the number of laps the user has completed around the virtual track. INCLINE/SPEED GRAPH: The Incline/Speed screen (A) provides a real-time graphical display of the user’s current workout incline or speed data based on the type of workout selected. - Page 24 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE TV CONTROLS: This console enables the user to watch live TV programming in crisp, clear high definition. The TV controls are built in to a workout view screen to allow the user to monitor their workout while enjoying their favorite shows. SWIPE A) Channel List: Scroll through the list of available channels.
-
Page 25: Web Browser
CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE WEB BROWSER: When enabled, the integrated web browser allows users to catch up on breaking news, watch sports highlights, check email, and connect with their friends on social media. Having this feature built into a Workout Data Screen allows users to easily multi task. -
Page 26: Outside Interactive Videos
CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE OUTSIDE INTERACTIVE VIDEOS: Outside Interactive provides users with a scenic, first-person video to enhance their workout. Scroll through the list of © available videos (A) to make your selection. To display the video in full screen mode, select the Screen Toggle button (B); current incline and speed workout selections will appear in full screen mode. -
Page 27: Idle Screen
CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE IDLE SCREEN: During a workout when the user becomes idle or presses the Stop button on the bottom toolbar, the Idle screen shown below will appear prompting the user to resume their workout (A), start a five minute, low intensity cooldown (B) with the workout ending after that time, reset the Idle Screen Timer (C) to 30 seconds while the user makes their selection, or end the current workout (D) and proceed to the Workout Summary screen. -
Page 28: Tv Cabling Requirements For True Fitness Equipment
TV CABLING REQUIREMENTS FOR TRUE FITNESS EQUIPMENT: For live television on TRUE Fitness equipment, coaxial cable must be run to the machine. All cabling internal to the TRUE Fitness equipment will be supplied by TRUE Fitness. All other cabling necessary to run from a TV or internet source to the TRUE cardio product must be provided by the facility. -
Page 29: Tv Solution Options
Fitness console. When a user presses a channel command on the console, the device sends that command directly to the set-top box that is sending TV signal to that machine. Users on the TRUE Fitness equipment will use the channel buttons on the consoles as normal to select their channel. -
Page 30: Internet Requirements
The TRUE Fitness Touchscreen platform supports a wireless internet connection - both wired and wireless internet connections. If you would like to connect your TRUE Fitness equipment to the internet, you will need at least 1.5Mbps download speed. That amount of bandwidth will allow for any number of TRUE consoles to connect to the internet. -
Page 31: Maintenance Menus
Entering Maintenance Mode: To enter Maintenance Mode, press and hold the TRUE logo (A) in the upper left corner of the home screen until the Maintenance Mode passcode entry pop-up screen (B) appears. Enter code “10101” to enter Maintenance Mode. - Page 32 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE MAINTENANCE MENUS: Summary Screen: The Summary Screen will be the first screen displayed after entering service mode. This screen will give a general overview of the unit’s setup. A) Product Model: The model number that the console is currently configured to. B) Serial/Machine Serial Number: The serial number of the console and serial number of the base unit respetively.
-
Page 33: Setup Menu
CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE MAINTENANCE MENUS: Setup Menu: The Setup menu is accessed by selecting the Setup button on the Main menu. The Setup menu is separated into sub- categories and enables users to configure the console and set up various functions of the unit. A) Product Setup: The Product Setup screen allows users to view the current console configuration. - Page 34 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE MAINTENANCE MENUS: Setup Menu: The Setup menu is accessed by selecting the Setup button on the Main menu. The Setup menu is separated into sub- categories and enables users to configure the console and set up various functions of the unit. F) Facility Images: The console supports customizable facility images to help promote specials, events, or endorse a brand.
- Page 35 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE MAINTENANCE MENUS: TV Setup Sub-Menu: Select the Begin Channel Scan (A) button and follow the on-screen prompts to complete the TV channel scan. The Export Scan to USB (B) button will export TV channel scan settings to an external USB drive connected to the console. The Import Scan from USB (C) button will import TV channel scan settings from an external USB drive connected to the console.
- Page 36 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE MAINTENANCE MENUS: Network Setup Sub-Menu: The Network Setup sub-menu displays the current network information for the console. To connect to a network, select the Setup Connection button (A) and follow the on-screen prompts to connect. To enable web browsing during a workout, select the Web Browser Enabled (B) button and enter the default homepage in the Homepage field.
- Page 37 CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE MAINTENANCE MENUS: Timers Menu: The Timers menu is accessed by selecting the Timers button on the Main menu. The Timers menu enables users to adjust various timer settings throughout the console menus such as post-workout cooldown time and maximum workout time. Statistics Screen: The Statistics menu is accessed by selecting the Statistics button on the Main menu.
- Page 38 B) Software/Nucleus Updates: TRUE may periodically release software and Nucleus updates to enhance the workout experience. Due to the complex nature of this procedure, it is recommended that a TRUE certified service professional performs any software and Nucleus updates. C) Touch screen: Touch input calibration for the console touch screen is performed in the Touch Screen menu.
-
Page 39: Console Assembly
CHAPTER 4: ENVISION TOUCHSCREEN CONSOLE CONSOLE ASSEMBLY: Console Wire Connections: Connect the Auxillary Power Supply (A), Coaxial Cable (B), USB Data Cable (C), Ethernet Communication Cable (D), Console Fan (E), and Ground Wire Ring Terminal (F) as shown below. Tuck the CSAFE cable (G) and any excess cord length inside the pedestal. -
Page 40: Chapter 5: Customer Service
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST. -
Page 41: Reporting Freight Or Parts Damage
Please make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours.
