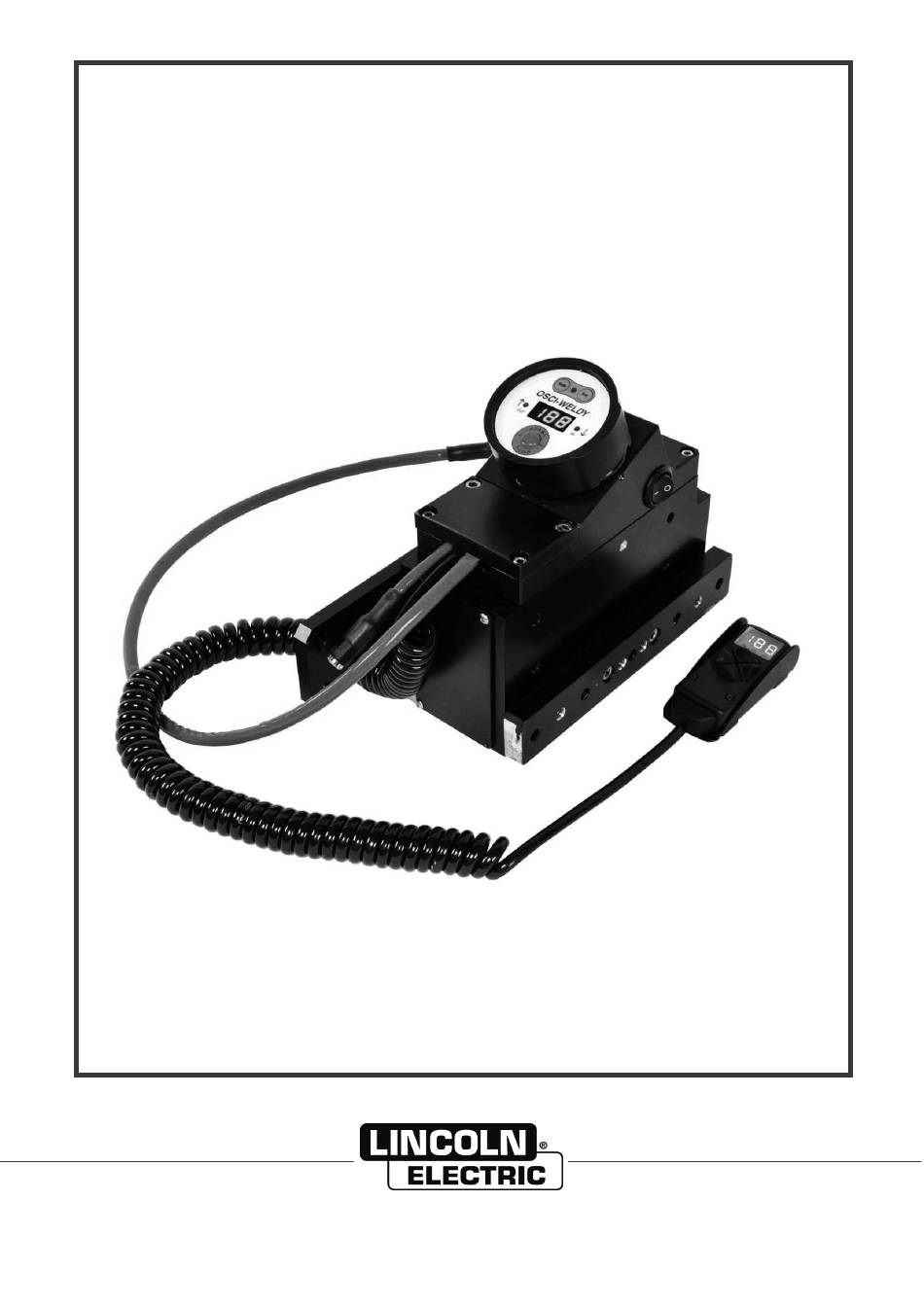

- Page 1 LINEAR OSCILLATOR FOR WELYCAR OSCI-WELDY SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE 8695 5877 REF : EDITION : EN Instructions for use REVISION DATE : 10-2018 Original Instructions...
- Page 2 Thank for the trust you have expressed by purchasing this equipment, which will give you full satisfaction if you follow its instructions for use and maintenance. Its design, component specifications and workmanship comply with applicable European directives. Please refer to the enclosed CE declaration to identify the directives applicable to it.
-
Page 3: Table Of Contents
E - OPERATOR MANUAL ......................... 8 1 - CONTROL ........................... 8 2 - SETTING PROCEDURE ..................... 10 F - MAINTENANCE ..........................12 1 - SERVICING ......................... 12 2 - SPARE PARTS ........................13 3 - WIRING DIAGRAM ......................16 PERSONAL NOTES .......................... 18 OSCI-WELDY... - Page 4 The measuring devices or displays for voltage, current, speed, pressure, etc., whether analog or digital, should be considered as indicators REVISIONS REVISION B 01/10 DESIGNATION PAGE Reference update REVISION C 07/10 DESIGNATION PAGE Update C3; E10 REVISION D 04/13 DESIGNATION PAGE Spare parts REVISION E 10/18 DESIGNATION PAGE To change logos OSCI-WELDY...
-
Page 5: A - Identification
8695 5877 / E A - IDENTIFICATION Please enter the number of your equipment in the following box. Quote this information in all correspondence. Manufacturing factory code Year manufactured Manufacturing year code Product type Product serial no. OSCI-WELDY... -
Page 6: B - Safety Instructions
Have defective accessories repaired by a specialist or, better still, replace them. Periodically check that electrical connections are properly tightened and do not overheat. Make sure that no spray or water enters into the electrical box of the oscillator. IP235 PROTECTION OSCI-WELDY... -
Page 7: C - Description
Using the OSCI-WELDY with a WELDYCAR version PRO provides a completely automatic welding system. The OSCI-WELDY can be used as a simple electrical slide. During the switch on the oscillator, un simple manipulation allows it to run in electrical slide mode. -
Page 8: Position Of The Torch
C - DESCRIPTION 8695 5877 / E 3 - POSITION OF THE TORCH The OSCI-WELDY is designed to receive the WELDYCAR torch holder. OSCI-WELDY... -
Page 9: Characteristic
C - DESCRIPTION 8695 5877 / E 4 - CHARACTERISTIC OSCI-WELDY Oscillation travel (range): 2 to 56 mm 0 to 27 mm Offset (O)*: (Depending on the range) 20 to 200 cm/min Oscillation speed: cm/min Carriage + linear oscillator autonomy:... -
Page 10: D - Assembly - Installation
D - ASSEMBLY - INSTALLATION 1. Remove the torch holder from the WELDYCAR 2. Fix the OSCI-WELDY on the WELDYCAR slide with the screws F1 3. Fix the torch holder on the OSCI-WELDY with the screws F2 4. Connect the jack plug J1 on the power supply 5. - Page 11 D - ASSEMBLY - INSTALLATION 8695 5877 / E To automate the carriage and oscillator movement, connect the J3 sensor multi-socket adaptor as shown below. OSCI-WELDY...
-
Page 12: E - Operator Manual
8695 5877 / E E - OPERATOR MANUAL 1 - CONTROL OSCI-WELDY... - Page 13 E - OPERATOR MANUAL 8695 5877 / E Display on the OSCI-WELDY Display on remote control Switch on/off button Thumbwheel to change speed or delay time Button to access the settings menu Button to accept menus Start/stop oscillation Button to set range...
-
Page 14: Setting Procedure
It is possible to start the oscillator via an external contact. The J2 socket can be used to close the contact and start the oscillator. The delay time (t ) then becomes useful and the oscillator only starts after the delay time. OSCI-WELDY E-10... - Page 15 E - OPERATOR MANUAL 8695 5877 / E OSCI-WELDY E-11...
-
Page 16: F - Maintenance
- adjust the clearance of guiding shims on the slides - adjust the clearance of the geared motor on the large sprocket wheel. - wash and grease the wheels - blow very carefully the electronic card, speed regulator, electric rack. OSCI-WELDY F-12... -
Page 17: Spare Parts
W000XXXXXX Machine interface board W000XXXXXX Flowmeter 9357 XXXX Silk-screen printed front panel For parts order, give the quantity required and put the number of your machine in the box below. TYPE: Number: OSCI-WELDY F-13... - Page 18 F - MAINTENANCE 8695 5877 / E OSCI-WELDY F-14...
- Page 19 (OS 10111) Remote control harness W000276827 (OS 10113) Sensor multi-socket adaptor W000276828 (OS 10107) For parts order, give the quantity required and put the number of your machine in the box below. TYPE: Number: OSCI-WELDY F-15...
-
Page 20: Wiring Diagram
F - MAINTENANCE 8695 5877 / E 3 - WIRING DIAGRAM OSCI-WELDY F-16... - Page 21 F - MAINTENANCE 8695 5877 / E OSCI-WELDY F-17...
-
Page 22: Personal Notes
F - MAINTENANCE 8695 5877 / E PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com OSCI-WELDY F-18...
