Summary of Contents for Bucher JetViewMobile 205

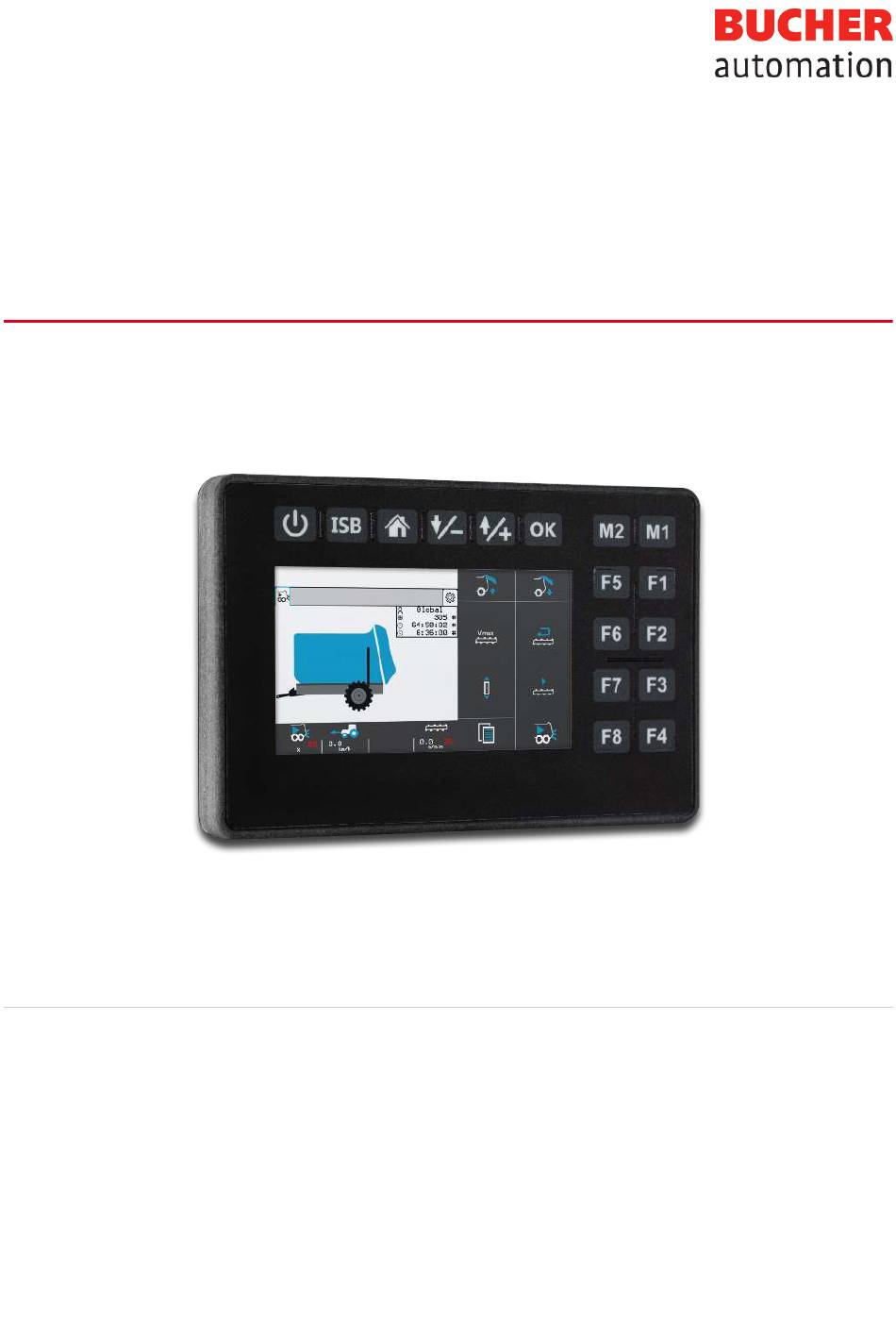

- Page 1 User Manual 60887527_01 JetViewMobile 205 ISOBUS terminal...
- Page 2 Bucher Automation AG has created this document with the requisite care and based on the current state of technology. Changes and further technical developments to our products are not automatically made avail- able in a revised document. Bucher Automation AG shall accept no liability or responsibility for errors of con- tent or form, missing updates or any damage or disadvantages arising therefrom.
-
Page 3: Table Of Contents
USB interface ..........................16 4.10 Inputs/outputs according to ISO11786:1995 ................... 17 4.11 Acoustic signal generator ........................ 17 4.12 Real-time clock ..........................17 Mechanical installation ......................... 18 Allowed mounting orientations......................19 Electrical connection ........................20 8-pin M12 plug..........................21 User Manual – JetViewMobile 205... - Page 4 Defining the date format ........................36 Maintenance........................... 38 Repairs ............................38 Storage and Shipment........................38 Return and Disposal ........................39 Service............................40 10.1 Technical support ..........................40 Spare parts and accessories......................41 11.1 Accessories ............................. 41 User Manual – JetViewMobile 205...
-
Page 5: Introduction
Purpose of the Document This document describes rules for the design of the system menu in ISOBUS operating devices of Bucher Automation AG. It does not describe all the functions and operation of the virtual ISOBUS terminal. -
Page 6: Legal Notices
ARM contract reference LEC-PRE-00489n- Open Source V3.0 ST lib ST Microelectronics http://www.st.com/software_license_agree- Free for controllers ment_liberty_v2 belonging to ST Python Python Software https://docs.python.org/3/license.html GPL-compatible Foundation (PSF) srec_cat Peter Miller http://srecord.sourceforge.net GNU GPLv3 Tab. 1: Licenses of third-party providers User Manual – JetViewMobile 205... -
Page 7: Safety
This device is no safety-related part as per Machinery Directive 2006/42/EC, and must, therefore, not be used for safety-relevant applications. This device is NOT intended for the purpose of personal safety, and must, therefore, not be used to protect persons. User Manual – JetViewMobile 205... -
Page 8: Warnings Used In This Document
Low risk Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Material damage Indicates a situation which, if not avoided, could result in malfunctions or material dam- age. User Manual – JetViewMobile 205... -
Page 9: Product Description
This document refers to firmware version 2.0.0.84 and higher. Design Front side Fig. 1: Front side of the control unit On/Off key ISB key Home key Navigation keys OK key Save key Function keys TFT touchscreen User Manual – JetViewMobile 205... -
Page 10: Product Features
1 digital input for the ignition signal – Real-time clock (RTC) with battery backup (optional) – ISOBUS-UT function – 16-MB flash memory – Update of the operating system and system menu via USB – Adaptable system menu User Manual – JetViewMobile 205... -
Page 11: Nameplate
Product Description | 3 Nameplate Fig. 3: Nameplate Manufacturer logo Barcode Serial number CE certification mark E1 approval E1 approval number Hardware revision Part number Product type Scope of Delivery Scope of delivery Item number Quantity JVM-205-K00-O31 10002136 User Manual – JetViewMobile 205... -
Page 12: Technical Specifications
Technical Specifications | 4 Technical Specifications This chapter contains information on both electrical and mechanical data as well as on operating data of the JVM-205 device. Dimensions R6.5 25.0 30.0 35.1 28.9 42.3 M5x6 Fig. 4: Dimension in mm User Manual – JetViewMobile 205... -
Page 13: Display
Vibration strength 10 Hz … 150 Hz, 6 h ISO 16750-3 Shock resistance Type of shock Half-sine wave ISO 16750-3 Intensity and duration 50 g for 18 ms Number and direction 10 shocks in all 3 directions of the spatial axes Tab. 5: Technical data – mechanical properties User Manual – JetViewMobile 205... -
Page 14: Environmental Conditions
The JVM-205 has CE approval in accordance with EN ISO 14982 for 12 V on-board systems. Pulses in accordance with ISO 7637-2 Test pulse Values Function class -450 V +37 V +20 V -150 V +150 V Ua1: -12 V / 50 ms B (24-V systems) Ua2: -5 V / 500 ms Tab. 8: Pulses in accordance with ISO 7637-2 User Manual – JetViewMobile 205... -
Page 15: Tab. 9 Pulses In Accordance With Iso 16750-2 For 12 V On-Board Systems
Load Dump 70 V / 2 Ω / 350 ms Tab. 9: Pulses in accordance with ISO 16750-2 for 12 V on-board systems Irradiation in accordance with ISO 11452 Irradiation Function class 20 MHz ... 2 GHz 30 V/m 20 MHz ... 2 GHz 100 V/m Tab. 10: Irradiation in accordance with ISO 11452 Emitted radiation acc. to CISPR 25 User Manual – JetViewMobile 205... -
Page 16: Ports And Interfaces
Integrated Cable specification CAN-compliant, twisted wire pairs, unshielded Tab. 13: Technical data – ISOBUS interface 4.9.2 USB interface Parameter Description Supply unit 5 V, max. 500 mA Data rate USB 1.1 Protocol USB-Host-Interface Tab. 14: Technical data – USB interface User Manual – JetViewMobile 205... -
Page 17: Inputs/Outputs According To Iso11786:1995
Real-time clock Optional equipment. Parameter Description Battery type CR2032 Service life Approx. 10 years from production. The service life of the battery depends on the ambient conditions and may therefore differ. Tab. 17: Technical data – real-time clock User Manual – JetViewMobile 205... -
Page 18: Mechanical Installation
► Clean the area around a connector prior to removing the mating connector. NOTICE Compliance with degree of protection The protection class of the device is only ensured if the M12 cable gland is tightened securely. User Manual – JetViewMobile 205... -
Page 19: Allowed Mounting Orientations
Bucher Automation AG Mechanical installation | 5 Allowed mounting orientations The device has a RAM mount connection and can be installed in the driver's cab with a suitable holder. Fig. 5: Permitted installation position with RAM mount holder User Manual – JetViewMobile 205... -
Page 20: Electrical Connection
Surges resulting from missing protection or fusing Surges may cause malfunctions or damage to the product. ► Protect the voltage inputs from surges according to the requirements. ► Ensure that the device is handled in accordance with ESD regulations. User Manual – JetViewMobile 205... -
Page 21: 8-Pin M12 Plug
USB data transfer - CAN-L Voltage supply term. 31 (GND) CAN-H USB +5 V (USB_VBUS) Tab. 18: Pin assignment of the M12 plug Info To use the USB signal, the use of a cable T-piece (Accessories [} 41]) is recommended. User Manual – JetViewMobile 205... -
Page 22: Firmware And System Menu
41434445 _Emergency.hex: Update firmware and system menu via RS232 (not supported). Description of the IOP file of the system menu The system menu is written by an IOP file that is usually created using ISO-Designer software from Bucher- Automation. Running script edc_make.bat, which is included in the firmware package, links the IOP file with the files of the firmware in an EDC file and transfers them together to the control unit (Creating an EDC file). -
Page 23: Updating The Firmware And System Menu Via Usb
2. Insert the USB stick in the USB A socket of the device. 3. Turn on the device. 4. Open the system settings: 5. Select option Update via USB: ð The firmware and system menu are updated. User Manual – JetViewMobile 205... -
Page 24: Updating The Firmware And System Menu Via Can Bus
ð The device-specific firmware file (41434445_EDC_x_x_x_x.hex) is loaded in the control unit via CAN. 8. Restart the control unit. To do this, either turn on the ignition or press the On/Off key on the control unit. ð The firmware and system menu are updated. User Manual – JetViewMobile 205... -
Page 25: Programming
The script for linking the two files is pro- vided by Bucher Automation together with the file package. No ECU visualization is required to use these functions. The objects of the system menu are used separately from the ECU objects, which means that no check for any object collisions is necessary. -
Page 26: Tab. 19 Data Mask/Alarm Mask Objects
String variables Object ID Description 65000 Content of the editor field. 65001 Original value of the edited object. 65002 Serial number 65003 Manufacturing date 65004 Software version 65005 Hardware revision 65006 Device type 65007 ActiveObjectPool version User Manual – JetViewMobile 205... -
Page 27: Tab. 22 String Variables
Background brightness of the screen as %; adjustment range 10 % … 100 %. 65124 Background brightness of the keyboard as %; adjustment range 0 % … 100 %. 65126 Battery voltage of the real-time clock in V. 65127 Upper part of the scrollbar of the ListObject editor. User Manual – JetViewMobile 205... -
Page 28: Tab. 23 Numeric Variables
Edited list object elements +5 65206 Edited list object elements -1 65207 Edited list object elements -2 65208 Edited list object elements -3 65209 Edited list object elements -4 65210 Edited list object elements -5 User Manual – JetViewMobile 205... -
Page 29: Physical Keys
Turn off: press and hold for approx. 2 s. Switches the inputs off when activated. Press and hold for 1 s. HOME Switch between start screen of the system menu and visualization of active ECU ob- jects. User Manual – JetViewMobile 205... -
Page 30: Key Codes
Selects edited list object: current element +1 (following element). Selects edited list object: current element +2. Selects edited list object: current element +3. Selects edited list object: current element +4. Selects edited list object: current element +5. User Manual – JetViewMobile 205... -
Page 31: Character Set Types Of The System Menu
Character formats bold, italic and underlined are not supported. Type Character set ISO8859-1 (ISO Latin-1, West European) ISO8859-15 (ISO Latin-9, West European) ISO8859-2 (ISO Latin-2, Central European) ISO8859-4 (ISO Latin-4, North European) ISO8859-5 (Cyrillic) ISO8859-7 (Greek) Tab. 30: Supported character set types User Manual – JetViewMobile 205... -
Page 32: Language Selection In The System Menu
Compiler edc.py reads the two-place language abbreviation of the IOP file name and stores the binary infor- mation in the EDC file together with the corresponding hexadecimal representation (UDS and Emergency). Language abbreviation User Manual – JetViewMobile 205... -
Page 33: Programming Examples
Programming example for numeric editor Buttons with numbers, characters and a decimal point are available in the numeric editor. The editor value and min/max range are represented as a string. Fig. 7: Programming example for numeric editor User Manual – JetViewMobile 205... -
Page 34: Programming Example For List Editor
The object ID of the string editor is 1037. The object ID of the editor field (rectangle object) is 200. The ID of the editor field content is stored in the value of object ID 65000, a string variable. User Manual – JetViewMobile 205... -
Page 35: Programming Example For Multiple Keyboards
3. Assign an object pointer to the data mask of the string editor (object ID 1037) instead of an individual key. The object pointer refers to another keyboard container. The object ID of the pointer (65300) behaves dif- ferently: Its value changes as soon as the keyboard is switched. User Manual – JetViewMobile 205... -
Page 36: Programming Example For Error Messages
For example, container 3034 organizes the date components in the or- der year – month – day. Container (OID: 3034) Year (OID: 65105) Month (OID: 65106 ) Day (OID: 65107 ) Fig. 13: Container IDs of the date components User Manual – JetViewMobile 205... -
Page 37: Fig. 14 Container For Date Format
The format is defined with variable 65180. The output strings named here contain the date format; for exam- ple, the value of the first string is DD-MM-YYYY. The object IDs of the strings are random. Only the positions in the input list are permanent (1 … 6). User Manual – JetViewMobile 205... -
Page 38: Maintenance
In case of damaged packaging inspect the device for any visible damage, and inform your freight forwarder and the Bucher Automation AG of the damage caused during shipment. If the device is damaged or has been dropped, it is strictly forbidden to use it. -
Page 39: Return And Disposal
Bucher Automation AG Maintenance | 9 Return and Disposal Disposal options Return your Bucher Automation AG product to us for proper disposal. Visit our website for detailed informa- tion and to download the required Returns form. Meaning of WEEE icon Fig. 15: WEEE icon –... -
Page 40: 10 Service
In case of questions, suggestions, or issues, please contact our experts from Technical Support. You may reach out by phone or through the contact form on our homepage: Technical Support | Bucher Automation - We automate your success. Or send an email to: support@bucherautomation.com... -
Page 41: 11 Spare Parts And Accessories
NOTICE Inadequate accessories might cause damage to the product Parts and equipment from other manufacturers might impede the function of the device and cause damage to the product. ► Only use accessories recommended by Bucher Automation AG. 11.1 Accessories Component... - Page 42 Programming example for error messages ..................36 Fig. 13 Container IDs of the date components .................... 36 Fig. 14 Container for date format......................... 37 Fig. 15 WEEE icon – crossed out trash can ....................39 User Manual – JetViewMobile 205...
- Page 43 Tab. 27 Container objects........................Tab. 28 Function and behavior of physical keys................. Tab. 29 Key codes..........................Tab. 30 Supported character set types....................Tab. 31 Assignment of index and language abbreviation..............Tab. 32 Available date formats ......................User Manual – JetViewMobile 205...
- Page 44 Bucher Automation AG Thomas-Alva-Edison-Ring 10 71672 Marbach/Neckar, Germany T +49 7141 2550-0 info@bucherautomation.com www.bucherautomation.com...
