- Page 1 User Manual 60886309_02 JetViewMobile 206 ISOBUS HMI...
- Page 2 Bucher Automation AG has created this document with the requisite care and based on the current state of technology. Changes and further technical developments to our products are not automatically made avail- able in a revised document. Bucher Automation AG shall accept no liability or responsibility for errors of con- tent or form, missing updates or any damage or disadvantages arising therefrom.
-
Page 3: Table Of Contents
Inputs/outputs according to ISO11786:1995 ................... 16 4.11 Acoustic signal generator ........................ 17 4.12 Real-time clock ..........................17 Mechanical installation ......................... 18 Allowed mounting orientations......................19 Electrical connection ........................20 8-pin M12 plug..........................21 8-pin M12 socket ..........................21 User Manual – JetViewMobile 206... - Page 4 Defining the date format ........................37 Maintenance........................... 38 Repairs ............................38 Storage and Shipment........................38 Return and Disposal ........................39 Service............................40 10.1 Technical support ..........................40 Spare parts and accessories......................41 11.1 Accessories ............................. 41 User Manual – JetViewMobile 206...
-
Page 5: Introduction
Purpose of the Document This document describes rules for the design of the system menu in ISOBUS operating devices of Bucher Automation AG. It does not describe all the functions and operation of the virtual ISOBUS terminal. -
Page 6: Legal Notices
ARM contract reference LEC-PRE-00489n-V3.0 Open Source ST lib ST Microelectronics http://www.st.com/software_license_agree- Free for controllers ment_liberty_v2 belonging to ST Python Python Software https://docs.python.org/3/license.html GPL-compatible Foundation (PSF) srec_cat Peter Miller http://srecord.sourceforge.net GNU GPLv3 Tab. 1: Licenses of third-party providers User Manual – JetViewMobile 206... -
Page 7: Safety
This device is no safety-related part as per Machinery Directive 2006/42/EC, and must, therefore, not be used for safety-relevant applications. This device is NOT intended for the purpose of personal safety, and must, therefore, not be used to protect persons. User Manual – JetViewMobile 206... -
Page 8: Warnings Used In This Document
Low risk Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Material damage Indicates a situation which, if not avoided, could result in malfunctions or material dam- age. User Manual – JetViewMobile 206... -
Page 9: Product Description

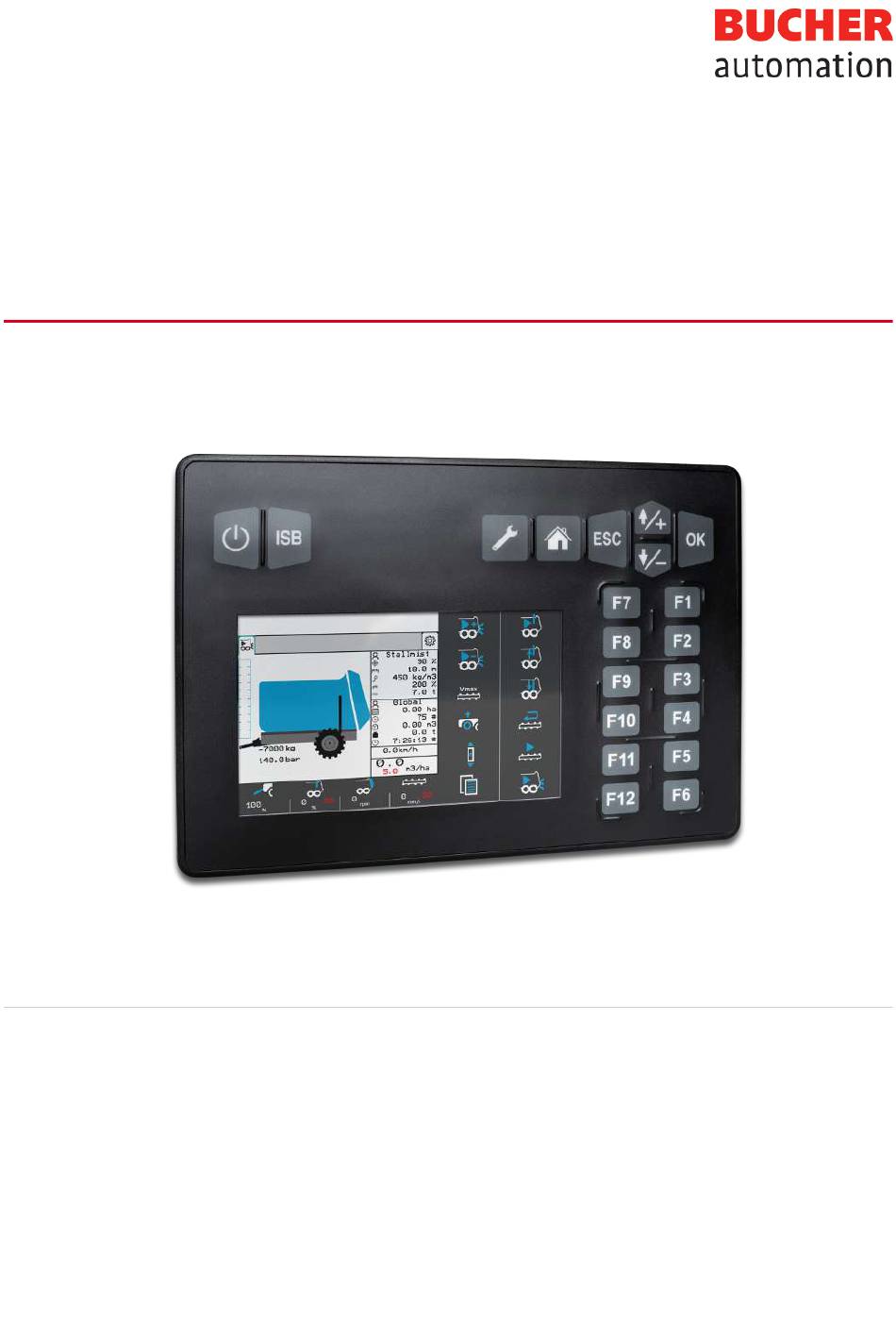

This document refers to firmware version 2.0.0.84 and higher. Design Front side 3 4 5 6 7 Fig. 1: Front side of the control unit On/Off key ISB key Settings key HOME key ESC key Navigation keys OK key Function keys TFT touchscreen User Manual – JetViewMobile 206... -
Page 10: Product Features
Real-time clock (RTC) with battery backup – ISOBUS-UT function – 16-MB flash memory – TECU function – Calibrating function for the tractor speed signal – FS function – Update of the operating system and system menu via USB User Manual – JetViewMobile 206... -
Page 11: Nameplate
Adaptable system menu Nameplate Fig. 3: Nameplate Manufacturer logo Barcode Serial number CE certification mark E1 approval E1 approval number Hardware revision Part number Product type Scope of Delivery Scope of delivery Item number Quantity JVM-206-K00-O21 10001905 User Manual – JetViewMobile 206... -
Page 12: Technical Specifications
5" Backlighting LED, typ. 500 cd/m , dimmable Tab. 2: Technical data – display Pushbuttons Parameter Description Number of membrane keys 20 keys Backlighting Dimmable Adjustable between 0% … 100% Typical service life 1,000,000 activations Tab. 3: Technical data – keys User Manual – JetViewMobile 206... -
Page 13: Processor Kernel
Standards Operating temperature -20 °C … +70 °C ISO 16750-4 Climatic conditions Humid heat Storage temperature -30 °C … +70 °C ISO 16750-4 DIN EN 60068-2-1 DIN EN 60068-2-2 Relative humidity 5% … 95% Degree of protection With mating plug: IP65; Without mating plug: IP20 Tab. 6: Technical data – environmental conditions User Manual – JetViewMobile 206... -
Page 14: Electrical Properties
Test pulse Values Function class Load Dump 70 V / 2 Ω / 350 ms Tab. 9: Pulses in accordance with ISO 16750-2 for 12 V on-board systems Irradiation in accordance with ISO 11452 Irradiation Function class 20 MHz ... 2 GHz 30 V/m 20 MHz ... 2 GHz 100 V/m Tab. 10: Irradiation in accordance with ISO 11452 User Manual – JetViewMobile 206... -
Page 15: Ports And Interfaces
Integrated Cable specification CAN-compliant, twisted wire pairs, unshielded Tab. 13: Technical data – ISOBUS interface 4.9.2 USB interface Parameter Description Supply unit 5 V, max. 500 mA Data rate USB 1.1 Protocol USB-Host-Interface Tab. 14: Technical data – USB interface User Manual – JetViewMobile 206... -
Page 16: Inputs/Outputs According To Iso11786:1995
Digital input for hitch position Parameter Description ISO11786: Hitch position (digital input) Abbreviation TP_DI_IN Quantity H level ≥ 6.2 V L level ≥ 1.5 V Source resistance 100 Ω ± 10 Ω Input resistance > 3 kΩ Tab. 17: Digital input for hitch position acc. to ISO11786:1995 User Manual – JetViewMobile 206... -
Page 17: Acoustic Signal Generator
4.12 Real-time clock Parameter Description Battery type CR2032 Service life Approx. 10 years from production. The service life of the battery depends on the ambient conditions and may therefore differ. Tab. 21: Technical data – real-time clock User Manual – JetViewMobile 206... -
Page 18: Mechanical Installation
► Clean the area around a connector prior to removing the mating connector. NOTICE Compliance with degree of protection The protection class of the device is only ensured if the M12 cable gland is tightened securely. User Manual – JetViewMobile 206... -
Page 19: Allowed Mounting Orientations
Bucher Automation AG Mechanical installation | 5 Allowed mounting orientations The device has a RAM mount connection and can be installed in the driver's cab with a suitable holder. Fig. 5: Permitted installation position with RAM mount holder User Manual – JetViewMobile 206... -
Page 20: Electrical Connection
Surges resulting from missing protection or fusing Surges may cause malfunctions or damage to the product. ► Protect the voltage inputs from surges according to the requirements. ► Ensure that the device is handled in accordance with ESD regulations. User Manual – JetViewMobile 206... -
Page 21: 8-Pin M12 Plug
Fig. 7: M12 socket n. c. Tractor: Ground speed Tractor: Wheel speed n. c. Speed input of the PTO (rpm signal) Hitch position (digital) Voltage supply term.31 (GND) Hitch position (analog) Tab. 23: Pin assignment of the M12 socket User Manual – JetViewMobile 206... -
Page 22: Firmware And System Menu
3443445 _Emergency.hex: Update firmware and system menu via RS232 (not supported). Description of the IOP file of the system menu The system menu is written by an IOP file that is usually created using ISO-Designer software from Bucher- Automation. Running script edc_make.bat, which is included in the firmware package, links the IOP file with the files of the firmware in an EDC file and transfers them together to the control unit (Creating an EDC file). -
Page 23: Updating The Firmware And System Menu Via Usb
2. Insert the USB stick in the USB A socket of the device. 3. Turn on the device. 4. Open the system settings: 5. Select option Update via USB: ð The firmware and system menu are updated. User Manual – JetViewMobile 206... -
Page 24: Updating The Firmware And System Menu Via Can Bus
ð The device-specific firmware file (3443445_EDC_x_x_x_x.hex) is loaded in the control unit via CAN. 8. Restart the control unit. To do this, either turn on the ignition or press the On/Off key on the control unit. ð The firmware and system menu are updated. User Manual – JetViewMobile 206... -
Page 25: Programming
The script for linking the two files is pro- vided by Bucher Automation together with the file package. No ECU visualization is required to use these functions. The objects of the system menu are used separately from the ECU objects, which means that no check for any object collisions is necessary. -
Page 26: Tab. 25 Fillattribute Objects
[%min_value-%max_value] 65009 Information about the EDC file (version of the loaded file collection). 65010 Version of the saved EDC file. 65042 Key name (access from KEY-TEST data mask only). 65044 Bootloader version Tab. 27: String variables User Manual – JetViewMobile 206... - Page 27 Background brightness of the keyboard as %; adjustment range 0% … 100%. 65126 Battery voltage of the real-time clock in V. 65127 Upper part of the scrollbar of the ListObject editor. 65128 Lower part of the scrollbar of the ListObject editor. User Manual – JetViewMobile 206...
- Page 28 1 = automatic, 0 = fixed (no dimming by the light sensor), 2 … 100 = de- fined sensitivity (optional) 65169 FS active: 0 = file system functions deactivated, 1 = activated 65180 Date format selection: Adjustment range: 0 … 5; affects pointer 65520. User Manual – JetViewMobile 206...
-
Page 29: Tab. 28 Numeric Variables
If ECU is not connected: Pointer is NULL. 65520 Pointing to container with selected date format (OID 3030 … 3035). Tab. 29: Object pointer Softkey objects Object ID Description 5001 No longer in use; reserved for backward compatibility. Tab. 30: Softkey objects User Manual – JetViewMobile 206... -
Page 30: Physical Keys
Exits editing mode; changes are NOT saved . Switches the inputs off when activated. Press and hold for 1 s. SETTINGS Opens the editing mask. (F13) SK_1 … SK_n Softkeys; function depends on the selected mask. Tab. 33: Function and behavior of physical keys User Manual – JetViewMobile 206... -
Page 31: Key Codes
Selects edited list object: current element -4. Selects edited list object: current element -5. Opens the KEY TEST data mask. Opens the FLASH TOOL data mask. Opens the TECU settings. TECU: Starts calibration (wheel speed). TECU: Saves calibration (wheel speed). User Manual – JetViewMobile 206... -
Page 32: Character Set Types Of The System Menu
This is also done in file edc.cfg using EUID 4c5f-3f3f. This IOP file contains only those objects that differ from the default system language. Generally this does not relate to the system menu as a whole. User Manual – JetViewMobile 206... -
Page 33: Tab. 36 Assignment Of Index And Language Abbreviation
The language abbreviation is forwarded via the ISOBUS. The selected index is stored in variable ID 65112. Index Language Language abbreviation English Dutch French German Italian Spanish Danish Swedish Czech Croatian Hungarian Norwegian Polish Romanian Turkish Tab. 36: Assignment of index and language abbreviation User Manual – JetViewMobile 206... -
Page 34: Programming Examples
This example contains a list with 5 navigable lines: the active line ±2 relative positions. Navigation by ±5 lines is possible. The scrollbar consists of two linear bar graphs with one superimposed on the other. Keys (key code 36) and (key code 35) are defined as buttons. Fig. 9: Programming example for list editor User Manual – JetViewMobile 206... -
Page 35: Programming Example For String Editor
2. Assign the appropriate buttons. There are 2 types available: – Keys with standard letters: Key code: 200 Object ID: ASCII-Code + 256 – Keys that link to the next keyboard set: Key code: 202 Object ID: 61 xx User Manual – JetViewMobile 206... -
Page 36: Programming Example For Error Messages
This example shows an error message that appears when the connection to the ECU is interrupted. Addi- tional error messages can be created in a similar manner using the relevant object ID. Fig. 13: Programming example for error messages User Manual – JetViewMobile 206... -
Page 37: Defining The Date Format
The format is defined with variable 65180. The output strings named here contain the date format; for exam- ple, the value of the first string is DD-MM-YYYY. The object IDs of the strings are random. Only the positions in the input list are permanent (1 … 6). User Manual – JetViewMobile 206... -
Page 38: Maintenance
In case of damaged packaging inspect the device for any visible damage, and inform your freight forwarder and the Bucher Automation AG of the damage caused during shipment. If the device is damaged or has been dropped, it is strictly forbidden to use it. -
Page 39: Return And Disposal
Bucher Automation AG Maintenance | 9 Return and Disposal Disposal options Return your Bucher Automation AG product to us for proper disposal. Visit our website for detailed informa- tion and to download the required Returns form. Meaning of WEEE icon Fig. 16: WEEE icon –... -
Page 40: 10 Service
In case of questions, suggestions, or issues, please contact our experts from Technical Support. You may reach out by phone or through the contact form on our homepage: Technical Support | Bucher Automation - We automate your success. Or send an email to: support@bucherautomation.com... -
Page 41: 11 Spare Parts And Accessories
NOTICE Inadequate accessories might cause damage to the product Parts and equipment from other manufacturers might impede the function of the device and cause damage to the product. ► Only use accessories recommended by Bucher Automation AG. 11.1 Accessories Component... - Page 42 Programming example for error messages ..................36 Fig. 14 Container IDs of the date components .................... 37 Fig. 15 Container for date format......................... 37 Fig. 16 WEEE icon – crossed out trash can ....................39 User Manual – JetViewMobile 206...
