Analog way LivePremier Series Quick Start Manual

QUICK START GUIDE

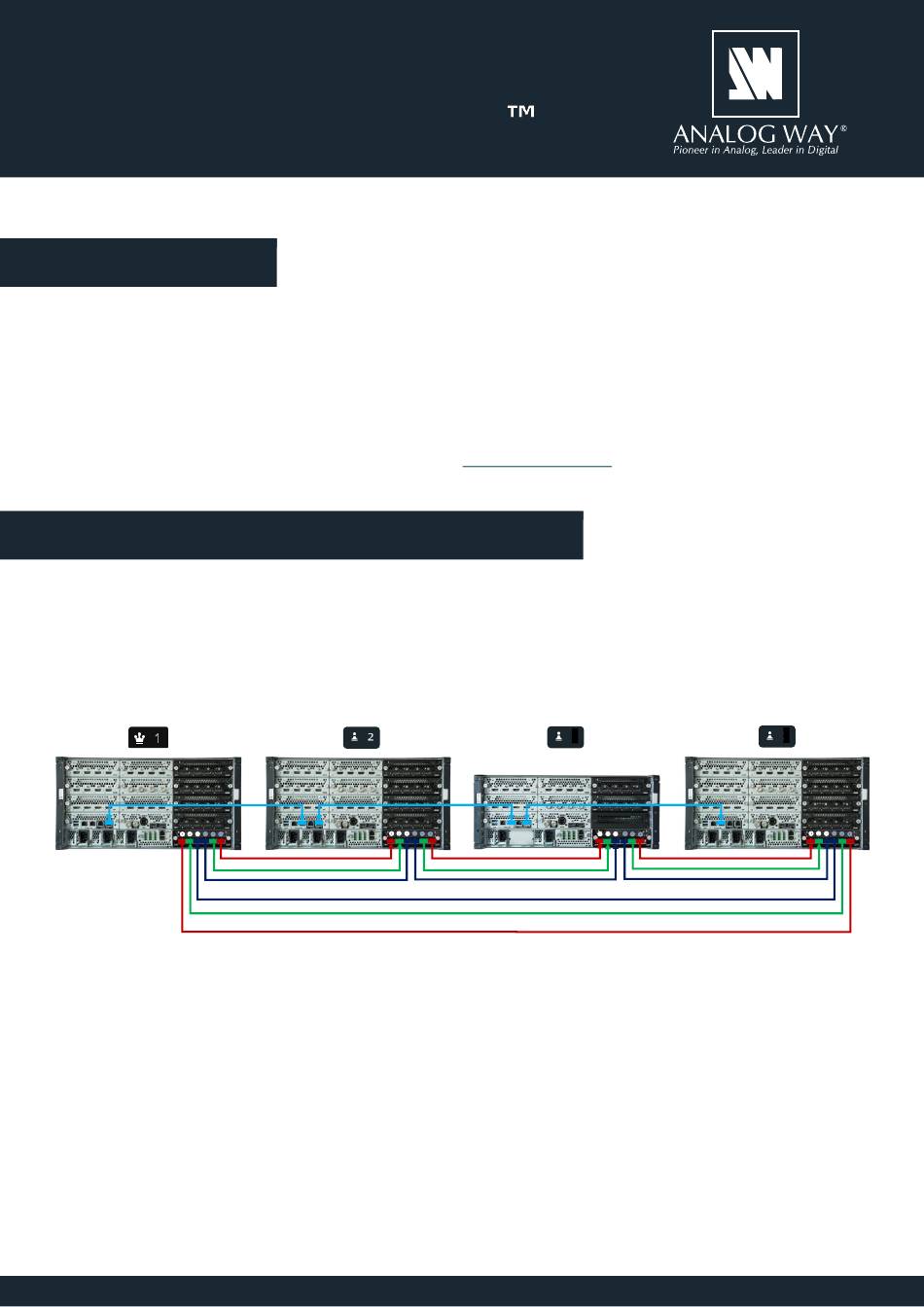

Cabling the Link for LivePremier
Thank you for choosing
will be able to cable the Link for up to four Aquilon 4K/8K/16K multi-screen presentation systems.
Requirements
• Up to 4x Aquilon (any type-any size)
o With the same firmware version
o Equipped with one of these options: UP-RSX-TO-LINK, UPD-AQL-LINK or OPT-AQL-LINK
• Up to 4 sets of DAC Link cables (ref. ACC-AQL-LINK-DAC-SET-1M and ACC-AQL-LINK-DAC-SET-3M)
• Up to 7x Ethernet cable (up to 3 for device sync and up to 4 for device control)
• 1 x Web-based Remote Control Software included and hosted on the Leader device
* User Manual and quick start guides are also available on
INTRODUCTION
When creating a Linked system, one unit must be chosen as the leader (represented as the chess King in the
Web RCS) and the others will be followers (represented as Pawns).
The control of the Linked system is achieved via the leaders' Web RCS of the Leader. The followers' Web RCSs
have limited access (status/IP address of the leader/unlink).
IMPORTANT:
- The first and the last device must be within 3 meters maximum of each other (max length of DAC cables).
- If Wake-on-LAN (WoL) should be used, please connect the control port of each unit to the the network,
get their MAC address and enable the feature prior to linking. The magic packet must be send to all the
units in the linked system to wake them up.
Analog Way and the LivePremier series. By following these two simple steps, you
www.analogway.com
