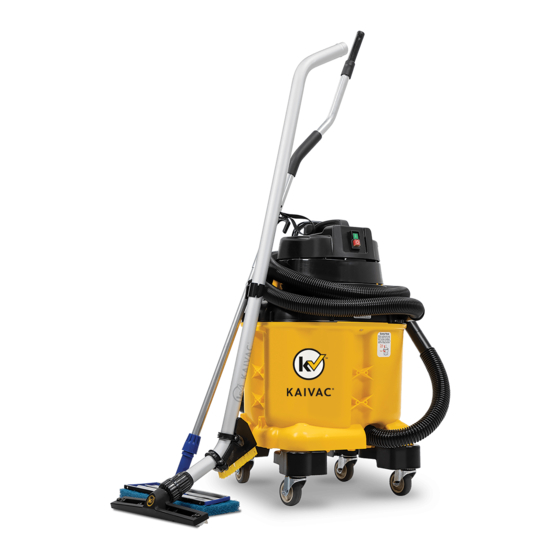

Kaivac UNIVAC Operator's & Parts Manual
Hide thumbs Also See for UNIVAC:

Advertisement

Quick Links

P/N: MANUALXCU
www.kaivac.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNIVAC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kaivac UNIVAC

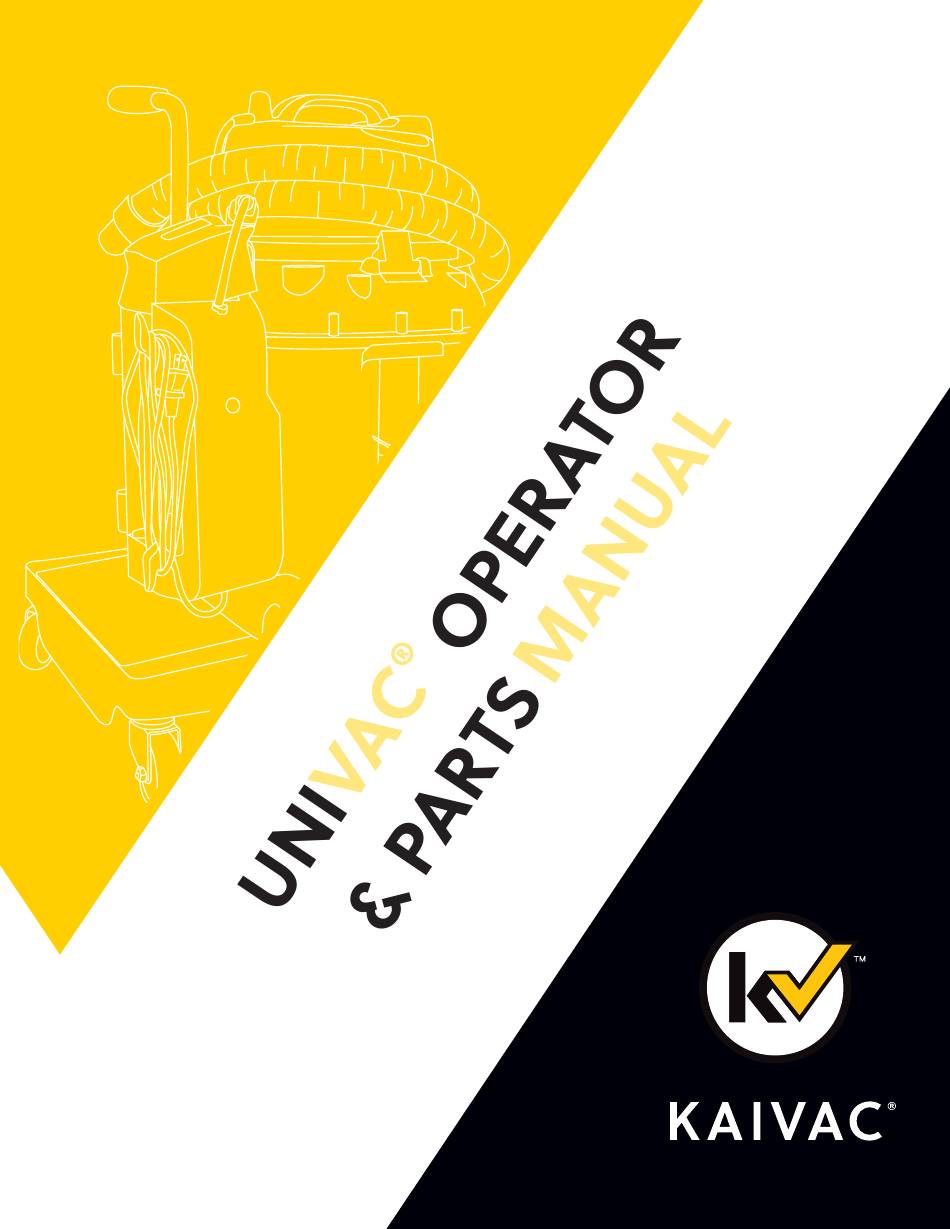

  • Page 1 P/N: MANUALXCU www.kaivac.com...
  • Page 2 Pay close attention to all WARNINGS, CAUTIONS and NOTES. Failure to do so may cause serious injury and extensive machine damage www.kaivac.com Customer/Technical Support P a g e ǀ ©2023 Kaivac, Inc. All Rights Reserved 1-800-287-1136...
  • Page 3: Table Of Contents

    RoUbLeshooting 5.0 Parts Diagrams and Specification 5.1 v ................27 ACUUM sseMbLy ARts iAgRAM 5.2 v ................28 ACUUM sseMbLy ARts iAgRAM 5.3 Q ..........28 UiCk hAnge oWeR AtteRy sseMbLy ARts iAgRAM www.kaivac.com ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 4: 1.0 Getting Started

    UNIVAC® (BATTERY) 1.2 W ARRAnty egistRAtion Thank you for purchasing a Kaivac product. Please take a few moments to register your product at kaivac.com/warranty. Why register? • Ensure your warranty coverage • Simplify warranty service in the future with your information on file •...
  • Page 5: L Imited Warranty P Rotection P Lan

    Under no circumstances will Kaivac be liable for any loss, damage, expenses or consequential damages arising in connection with the use or inability to use Kaivac’s product. This warranty is in lieu of any other warranty expressed or implied, including any warranty of merchantability or fitness for a particular purpose.
  • Page 6: Afety P

    • Keep operating area clear of all persons. • The Kaivac shall be disconnected from mains during cleaning or maintenance and when replacing parts or converting the machine to another function. • DO NOT overreach or stand on unstable support. Keep good footing and balance at all times.
  • Page 7: Afety P Recautions : C Orded (C Ontinued )

    FOR INDOOR USE ONLY INTENDED FOR COMMERCIAL USE To Reduce the Risk of Electric Shock — Do not expose to rain or water. Store indoors. www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 8: Afety P Recautions : B Attery O Perated U Nits O Nly

    DO NOT charge batteries outdoors. • DO NOT attempt to repair, service or modify the batteries or charger. Contact Kaivac Technical Support with any issues. • DO NOT short-circuit the battery or charger terminals with conductive items such as paper clips. This can deliver high current, resulting in heat and fire.
  • Page 9: Afety P Recautions : B Attery O Perated (C Ontinued )

    Personal Protective Equipment (PPE): It is recommended to wear proper personal protective equipment as required by your Chemical product label instructions used in conjunction with the appliance. Refer to the Kaivac label on Kaivac chemical products. WARNING — To Reduce the Risk of Electric Shock — Do not expose to rain or water.
  • Page 10 10% run time per year. Fully Discharge vs. Partial Discharge and the Effect on Battery Cycles: Unlike lead acid batteries typically used in auto scrubber, the Kaivac Battery is not damaged by fully discharging. The BMS (Battery Management System) has a cutoff voltage of 30V which protects the Battery from experi- encing full discharge.
  • Page 11: Rounding Nformation

    This product comes with a grounded attachable extension cord. If damaged, replace with Kaivac® (OEM) cord, or if necessary an equivalent cord rated 120V, 15 amps, 3-wire, 14 GA. This cord must be attached and mechanically secured using the provided cord connector to use the equipment.
  • Page 12: Rounding I Nformation (C Ontinued )

    1.0 Getting Started 1.6 g RoUnding nfoRMAtion ontinUed Make sure your extension cord is in good condition and is the correct size for your appliance. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.
  • Page 13: Attery D

    Push key IN and rotate counter Key needs to be in Once in place, turn key clockwise to OFF to lock in place. clockwise to Unlock. unlock position to remove www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 14: T Ool Arrangement

    2.0 Setup/Assembly 2.2 t RRAngeMent *Corded Only* Spreader Power Cord (MFHNDLSA) (EXT15) Vac Wand (OFVW1P) With GRTBRUSH (OFVW1PGB) Squeegee Head (CVS12SFS) Customer/Technical Support P a g e ǀ 1-800-287-1136...
  • Page 15: Reparation Or Se

    If using chemical, locate the vac head and remove to reveal inside of tank. Insert chemical pouch into the tank. If using a chemical jug, ensure proper dilution of chemical is used. www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 16: Reparation Or Se Ontinued

    CAUTION: Before filling with solution, ensure the spigot is in the “OFF” position. Fill the tank with water and recommended amount of Kaivac approved Chemicals. Follow the proper dilution instructions on bottles or dispenser. For accuracy and convenience, use Kaivac proportioned chemical packets.
  • Page 17: Mptying V Acuum T Ank

    Before starting each new cleaning process, remove Filter Bag, dump any debris out, spray clean, and then replace back into the Filter Bag Frame. www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 18: U Ni V Ac ® O Peration

    2.0 Setup/Assembly 2.6 U ® o peRAtion Cleaning with OmniFlex Dispense-and-Vac mode is better, safer and faster than cleaning with a mop. You apply fresh cleaning solution to the floor, spread and lightly brush into grout lines, then vacuum away all soils and liquids.
  • Page 19: Machine M Aintnence

    Apply grease when done. HEPA Filter • Replace every 3-6 months depending on use. Float Cage • Ensure cage is sprayed and cleaned daily to remove debris. www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 20: Uick C Hange P Ower P Ack (B Attery ) E Lectrical D Iagram

    14 GA (-) device 36V DC CHARGER Associated Machines AUTOVACBATTS, AUTOVACBATTSI, ODVQCBATT, ODVQCBATTI, XCS008, UV3D00. XCU004, XCU005, Input: Kaivac, Inc. 120 VAC 2680 Van Hook Ave. 1.4 Amps Hamilton, OH 45015 2-wire SJT Omniflex 36VDC W/IOT cable with IEC Drawn By:...
  • Page 21: 3.3 Ac C

    3.3 AC C oRded LeCtRiCAL iAgRAM INSIDE VAC HEAD Black (N) White (N) Black (N) 120VAC PLUG Black (L) Black (L) Green/Yellow Striped Green (GND) (GND) VACUUM MOTOR Black (L) www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 22: Roubleshooting

    2. Cleaning Chemicals may be producing too much foam. Use correct Chemicals. • Other Issues? Contact Technical Support Phone: United States and Canada: 1-800-287-1136 International: 1-513-887-4600 Email: info@kaivac.com For Technical Support Contact Form go to: https://www.kaivac.com/contactus.php and choose Technical Support tab. 4.5 R epLACeMent onthLy The following tasks should be performed monthly to keep your system operating at peak performance.
  • Page 23 Moisture from exhaust Water in blow hose Dry blow line Blow Dry System Suction, not blow action Vacuum hose connected to Reconnect to vac motor exhaust vac tank hose www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 24 4.0 Troubleshooting and Upkeep 4.3 t RoUbLeshooting Always unplug machine before accessing electrical component. AREA PROBLEM POSSIBLE CAUSE SOLUTION Out of water Fill water tank Gun nozzle plugged Remove orifice with Allen wrench and clean Air in pump (vapor lock) Use power prime technique Gun orifice missing Replace orifice...
  • Page 25: Roubleshooting (C Ontinued )

    Brass ring worn Replace Premature blade wear Squeegee wheels worn Check wheels for wear/ replace Sucks to the floor too Squeegee wheels worn Check wheels for wear/ tightly replace www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
  • Page 26: Acuum 5.2

    10 X 3/4 PHL PAN HI-LO (AC ONLY) OFCSTR OMNIFLEX 3 INCH CASTER CSS211 8/32 IN. INSERT FOR MOLDS (AC ONLY) GP0022 UNIVAC CHASIS FRAME VHDTY VAC HOSE DRIP TRAY CSS364 1/4-10 X 1 1/4 IN PLASTITE PAN TORX CSS208...
  • Page 27: Acuum

    10 X 3/4 FLAT HEAD FORMING SCREW HEBT00 GUIDE RAIL FOR BATTERY EACG00 36V BATTERY CHARGER HWM004 OSHAFT COLLAR 3/8 HWM006 HERBIE CLAMP BINTBASE PLUG BASE HWM010 CABLE CLAMP 3/16 BLACK www.kaivac.com P a g e ǀ ©2024 Kaivac, Inc. All Rights Reserved...
