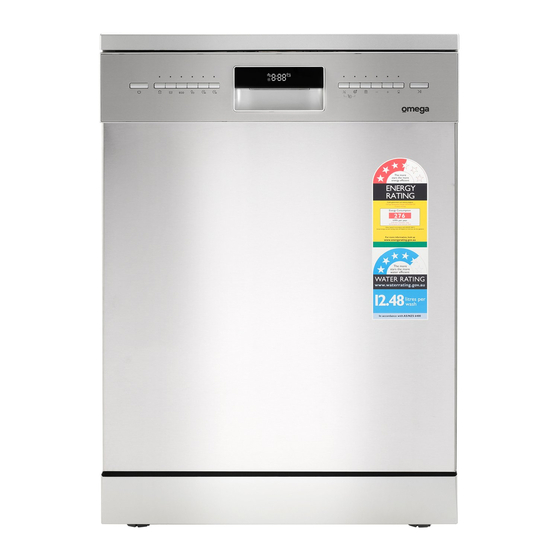

- Page 1 User Manual V1.2 1123 60cm Freestanding Dishwasher ODWF6015X...
-
Page 2: Table Of Contents
User Manual ODWF6015X Contents Welcome Safety Information Your Dishwasher Installation Instructions Operating Instructions Preparing & Loading Dishes Rinse Aid & Detergent Cleaning & Maintenance Troubleshooting Purchase Details Warranty Information... -
Page 3: Welcome
User Manual Welcome Congratulations on purchasing your Freestanding Dishwasher. Residentia Group — Omega appliances are proudly owned and distributed within Head Office Australia by Residentia Group Pty Ltd. 165 Barkly Avenue Burnley Victoria Please refer to the warranty chapter at the rear of this manual Australia 3121 for information regarding your product’s parts and labour... -
Page 4: Safety Information
User Manual ODWF6015X mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 ) Packaging material could be dangerous for children! Safety Information This appliance is for indoor household use only. - Page 5 User Manual Safety Information (Continued) Unpacking • Use only detergent and rinse agents recommended After unpacking, please dispose of all elements of packaging for use in an automatic dishwasher. in a way that will not cause damage to the environment. •...
-
Page 6: Your Dishwasher
User Manual ODWF6015X Your Dishwasher 1. Inner Pipe 3. Dispenser 5. Filter Assembly 7. Upper Spray Arm 2. Lower Spray Arm 4. Top Spray Arm 6. Cup Rack Cutlery Drawer Upper Basket Lower Basket... - Page 7 User Manual Your Dishwasher (Continued) Product Specifications Model ODWF6015X Standard Place Settings Installation Freestanding or Built-in Dimensions (W × D × H mm) 598 × 600 × 845 Depth with Door Opened 90° 1175 mm Height for Built-in Installation 815 mm (Removing Work Top;...
-
Page 8: Installation Instructions
User Manual ODWF6015X Installation Instructions Prior to Installing Appliance Water Supply And Drain WARNING: ELECTRICAL SHOCK HAZARD Cold water connection Disconnect electrical power before installing dishwasher. Connect the cold water supply hose to a threaded 3/4 inch Failure to do so could result in death connector and make sure that it is fastened tightly in place. - Page 9 User Manual Installation Instructions (Continued) Connection of Drain Hoses Extension hose Insert the drain hose into a drain pipe with a minimum If you need a drain hose extension, make sure to use a similar diameter of 4 cm, or let it run into the sink, making sure to drain hose.
- Page 10 User Manual ODWF6015X Installation Instructions (Continued) Positioning the Appliance Freestanding Installation Fitting between existing cabinets When positioning the appliance in your desired location, the back should rest against the wall behind it, and the The height of the dishwasher, 845 mm, has been designed sides should be along the adjacent cabinets or walls.
-
Page 11: Operating Instructions
User Manual Operation Instructions Control Panel Programs & Additional Functions Button Symbol Description 1 Power Press this button to turn your dishwasher on or off. 2 Program Intensive: For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that Cycles have been sitting with dried food on them for some time. - Page 12 User Manual ODWF6015X Operation Instructions (Continued) Programs & Additional Functions Button Symbol Description 3 Half Load When the dishwasher is only at half capacity, you can choose this function to save energy Function and water. This function is not compatible with the the Rapid program.
- Page 13 User Manual Operation Instructions (Continued) Program Functions Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Detergent Rinse Aid Program Washing Default Time...
- Page 14 User Manual ODWF6015X Operation Instructions (Continued) Starting a Wash Cycle Adding a Dish Mid-Cycle 1. Draw out the lower and upper basket, load the dishes A forgotten dish can be added any time before the and push them back. It is recommended to load the lower detergent dispenser opens.
-
Page 15: Preparing & Loading Dishes
User Manual Preparing & Loading Dishes Washing Considerations Removing the dishes • Consider buying utensils which are identified as To prevent water dripping from the upper basket into the dishwasher-proof. lower basket, we recommend that you empty the lower basket first, followed by the upper basket. •... - Page 16 User Manual ODWF6015X Preparing & Loading Dishes (Continued) Folding Back the Lower Basket Pronges Folding the Cup Shelves Back The pronges on the lower basket are used for holding plates To make room for taller items in the upper basket, raise the and platters.
- Page 17 User Manual Preparing & Loading Dishes (Continued) Loading Recommendations Loading the Upper Basket For the best washing results, please load the baskets The upper basket is designed to hold more delicate and according to AS/NZS 2007.1 demonstrated in this section. lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).
- Page 18 User Manual ODWF6015X Preparing & Loading Dishes (Continued) Loading the Cutlery Drawer Cutlery Drawer Options Cutlery should be placed in the cutlery rack separate from 1. You can lift the right side of the cutlery drawer up each other in the appropriate positions. Avoid nesting of the so both left and right sides are flat.
-
Page 19: Rinse Aid & Detergent
User Manual Rinse Aid & Detergent Function of the Rinse Aid & Detergent Filling The Rinse Aid Compartment The rinse aid is released during the final rinse to prevent 1. Remove the rinse aid compartment cap by lifting up water from forming droplets on your dishes, which can leave the handle. - Page 20 User Manual ODWF6015X Rinse Aid & Detergent (Continued) Adjusting the rinse aid compartment Filling The Detergent Dispenser STEP 1: Please choose an opening according to your To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by dishwasher setup and requirements.
- Page 21 User Manual Rinse Aid & Detergent (Continued) STEP 2: Add detergent into the larger cavity (A) for the STEP 3: Close the flap by sliding it to the front main wash cycle. For better cleaning results, particularly if and then pressing it down. you have very dirty items, pour a small amount of detergent onto the door.
-
Page 22: Cleaning & Maintenance
User Manual ODWF6015X Cleaning & Maintenance External Care 1. Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. - Page 23 User Manual Cleaning & Maintenance (Continued) Spray arms Caring For The Dishwasher Frost precaution It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. Please take frost protection measures on the dishwasher To clean the spray arms, follow the instructions below: in winter.
-
Page 24: Troubleshooting
User Manual ODWF6015X Troubleshooting Operation in case of emergency In the event of an emergency you should: • Switch off the appliance using the Power button • Switch the appliance off at the power outlet and immediately unplug. • Call the Customer Service team on 1300 11 4357 or email support@residentiagroup.com.au Some minor faults can be fixed by referring to the instructions given in this Troubleshooting section. - Page 25 User Manual Troubleshooting (Continued) Problem Possible Cause Solution Dishwasher doesn't start Fuse blown, or the circuit break tripped Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher. Power supply is not turned on Make sure the dishwasher is turned on and the door is closed securely.
- Page 26 User Manual ODWF6015X Troubleshooting (Continued) Problem Possible Cause Solution Knocking or rattling noise A spray arm is knocking against an item Interrupt the program and rearrange in the dishwasher or items of crockery are loose the items obstructing the spray arm.
-
Page 27: Purchase Details
User Manual Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS Store Name Address Telephone Purchase Date PRODUCT DETAILS Model No. -
Page 28: Warranty Information
User Manual ODWF6015X Warranty Information WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY DISHWASHERS ‘acceptable quality’ as referred to in clause 10 of This document sets out the terms and conditions of this warranty has the same meaning referred to in the product warranties for Residentia Group Appliances. - Page 29 User Manual Warranty Information (Continued) You will bear the cost of transportation, travel and delivery of For Appliances and services provided by Residentia Group in Australia, the Appliances come with a guarantee by Residentia the Appliance to and from Residentia Group or its ASR. If you reside outside of the service area, you will bear the cost of: Group that cannot be excluded under the Australian Consumer Law.
- Page 30 User Manual ODWF6015X Notes...
- Page 31 User Manual Notes...
- Page 32 E S T . 1 9 8 1 Designed to Enhance...
