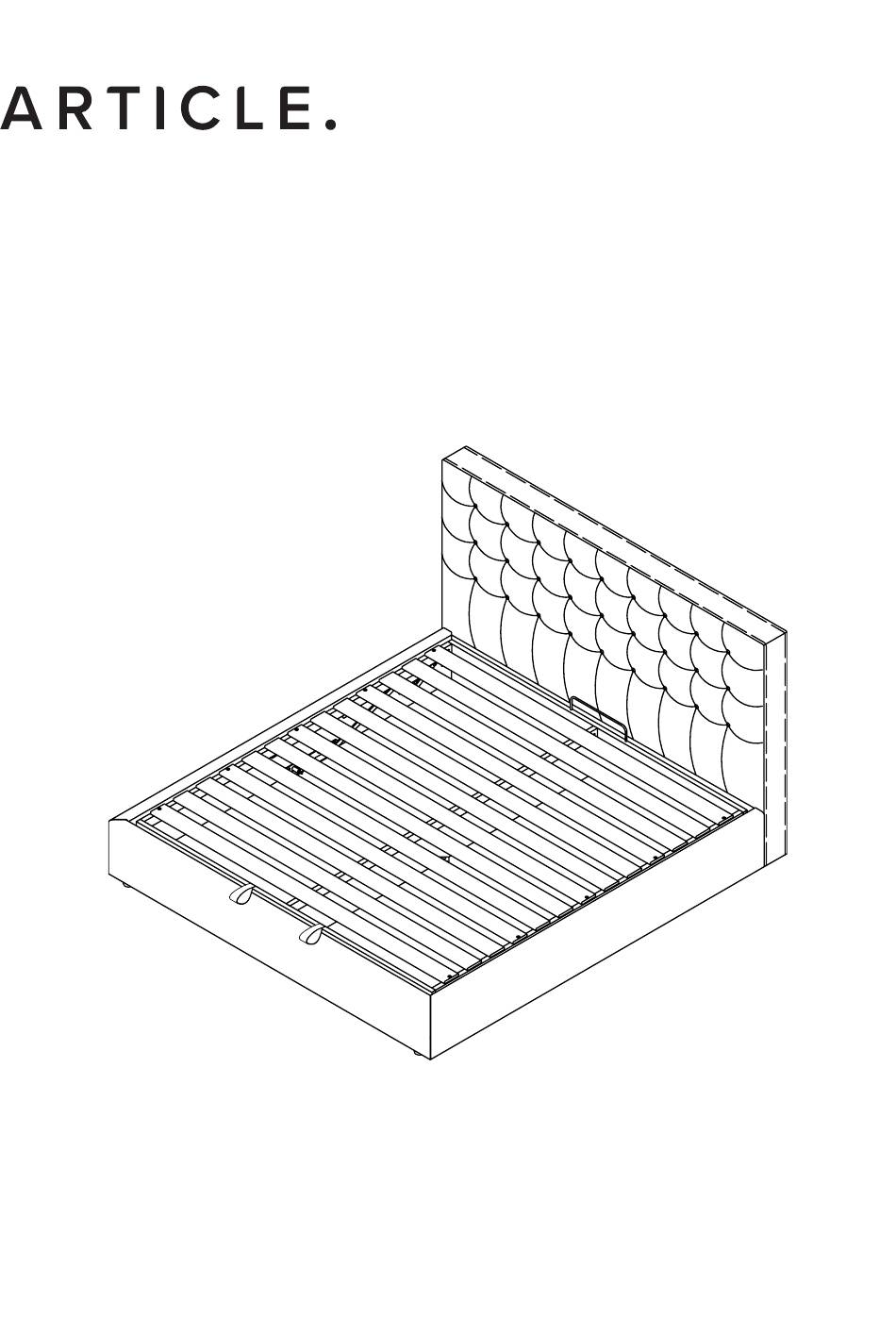

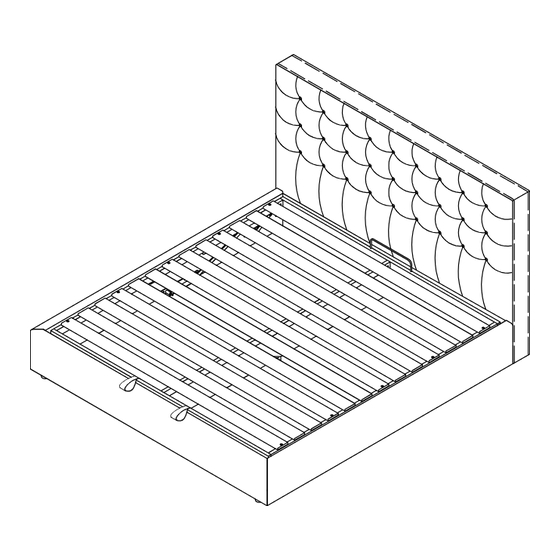

- Page 1 VERSION 1.0 Assembly Instructions SVEN Storage Bed...
- Page 2 If you’re having difficulty, our friendly Customer Care team is always here to help. Call us at 1.888.746.3455 during business hours, email service@article.com or chat live at article.com. TAPE MEASURE PARTS INVENTORY PARTS INVENTORY CONT.
-
Page 3: Parts Inventory
If you’re having difficulty, our friendly Customer Care team is always here to help. Call us at 1.888.746.3455 during business hours, email service@article.com or chat live at article.com. PARTS INVENTORY PARTS INVENTORY CONT. -
Page 4: Before You Start
SVEN Storage Bed Page 4 of 24 BEFORE YOU START Please check that all parts are present before you start the assembly of your furniture, as once assembled, the furniture is exempt from our home approval policy. 2. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step. - Page 5 SVEN Storage Bed Page 5 of 24...
- Page 6 SVEN Storage Bed Page 6 of 24 Do not fully tighten bolts. ×4 100% ×2 Fully tighten bolts with L support bracket (L).
- Page 7 SVEN Storage Bed Page 7 of 24 Do not fully tighten bolts. ×4 100% ×2 Fully tighten bolts with L support bracket (L).
- Page 8 SVEN Storage Bed Page 8 of 24 100% Fully tighten bolts with ×4 L support bracket (L).
- Page 9 SVEN Storage Bed Page 9 of 24 Hook the side rail brackets Tighten the bottom scew. over the bolts on footboard. Step 1 Step 2 Step 3 Tighten the upper screw. Make sure the side rail and footboard is square before tightening the screw.
- Page 10 SVEN Storage Bed Page 10 of 24 Hook the side rail brackets over the bolts on both sides.
- Page 11 SVEN Storage Bed Page 11 of 24...
- Page 12 SVEN Storage Bed Page 12 of 24 Fully tighten the bolts with the center support leg #7.
- Page 13 SVEN Storage Bed Page 13 of 24 Make sure all the frame corners are at 900 angle. Fully tighten all the bolts in headboard, footboard and side rail.
- Page 14 SVEN Storage Bed Page 14 of 24 STEP 1 TURN HOLD HOLD STEP 2...
- Page 15 SVEN Storage Bed Page 15 of 24 ×8 STEP 1 STEP 2...
- Page 16 SVEN Storage Bed Page 16 of 24 Carefully place the lift-up mechanism on the side rail hook bracket and L support bracket.
- Page 17 SVEN Storage Bed Page 17 of 24 Fully tighten the bolts with the lift-up mechanism frame. ×5 ×5...
- Page 18 SVEN Storage Bed Page 18 of 24 To attach the strap handle (K), insert and hold the nut screw (C) while tightening the allen head screw (B). ×2...
- Page 19 SVEN Storage Bed Page 19 of 24 ×10...
- Page 20 SVEN Storage Bed Page 20 of 24 To attach the gas cylinder (M) to the lift up mechanism, push the gas cylinder to the mechanism stopper. Use nut (I) and spanner (J) provided as shown. Fully tighten all bolts. ×4...
- Page 21 SVEN Storage Bed Page 21 of 24 Step 2 Step 1 Step 4 Step 3...
- Page 22 SVEN Storage Bed Page 22 of 24 SAFETY WARNING: Please do not allow children or pets inside the storage area. SAFETY WARNING: Please becareful when lifting. Only with mattress on top. To be operated by adults only.
- Page 23 SVEN Storage Bed Page 23 of 24 SAFETY WARNING: Please do not allow children or pets inside the storage area. SAFETY WARNING: Please do not press down on the mattress when the bed frame is in the lift up position. The bed frame top must only be closed by using both center handles.
- Page 24 SVEN Storage Bed Page 24 of 24...
