Sense it. Manage it.
Product Overview

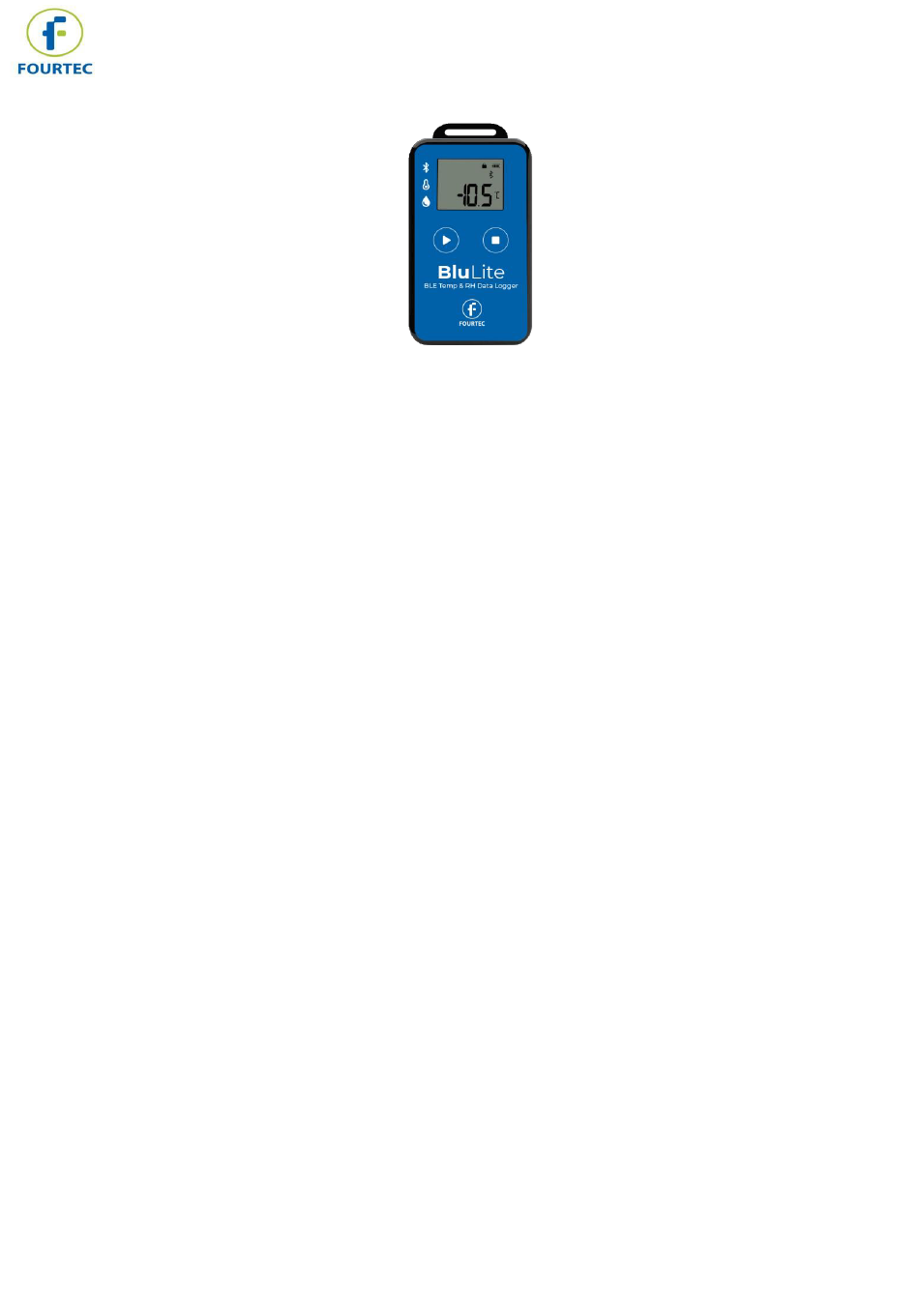

BluLite is a Bluetooth Low Energy temperature & humidity data logger with the
latest Bluetooth 5.0 technology. It can collect and record the environment's
temperature & humidity. BluLite can store up to 32,000 records display data and
alarm in real time on LCD screen. The logger connects to DataSuite app for
Windows and FourtecLite for Android that enable manage and monitor the data as
well as add a sound alarm.
The logger is a small-sized, low-weighted, easily portable and highly accurate
device for wide use in the cold chain logistics, archives, labs, museums, etc.
Product application
• Food Manufacturing
• Catering, ready meal kits and hospitality
• Agriculture & aquaculture, pre & post harvesting
• Pharmaceutical manufacturing sites
• Pharmacies
• Laboratories
• Warehouse & museums
• Industrial applications
• Wholesale & retail
• Export, in land & last mile delivery transportation
User Manual
March 2024
1
V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BluLite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fourtec BluLite

  • Page 1 March 2024 Product Overview BluLite is a Bluetooth Low Energy temperature & humidity data logger with the latest Bluetooth 5.0 technology. It can collect and record the environment’s temperature & humidity. BluLite can store up to 32,000 records display data and alarm in real time on LCD screen.
  • Page 2: Product Features

    Sense it. Manage it. Product Features ✓ High accuracy and stability ✓ Bluetooth 5.0 ✓ Built-in highly sensitive temperature & humidity sensor ✓ Real-time broadcast temperature & humidity, can view the temperature & humidity in real time on the LCD ✓...
  • Page 3: Operation

    Sense it. Manage it. Caution • Proximity to metal objects may weaken the signal due to interference • Make sure the logger and mobile device meet the manufacturer recommended distance on order to guarantee the accuracy of receiving • Keep away from water and corrosive objects. User Guides Device Instructions Device Buttons...
  • Page 4 Sense it. Manage it. Instructions Instructions √ measurement in threshold Bluetooth indication × measurement is/was out of threshold during the current run ▶ readings are saved in logger Bluetooth is communicating ■ logger is on, measures are not saved. ↑ the measurement is Reading Value higher than the maximum range...
  • Page 5 Android mobile device. The user can connect the BluLite logger to FourtecLite application with Bluetooth. Both efficient and user-friendly, FourtecLite is designed for different users in various processes and industries, offering flexibility and precision in data handling on the go: •...
  • Page 6: Connect Your Device

    After connection the application will open Important notes: • The default name of the device is BluLite[7 last digits of ID number]. You can find the ID at the back of your device • In case you changed the name in the settings it will appear according to the...
  • Page 7 Sense it. Manage it. Disconnect your device Go to BLE devices A list of all devices will appear on screen. Click connect/disconnect form the selected device.
  • Page 8: Configure Device

    Sense it. Manage it. Configure device Click setup button to set the device. The screen will open as in the picture on the right: Instructions Device name- The name is visible in DataSuite and FourtecLite and is used for connection and reports>...
  • Page 9 Sense it. Manage it. Cyclic Run The logger is in cycling mode - rewriting new measurements on old measurements when reaching the full capacity of the memory. Interval The interval between samples Recording time The current recorded time. When stop mode it shows the last log recorded When in run mode it shows the current recorded time.
  • Page 10: Start/Stop Recording

    Sense it. Manage it. Start/Stop recording "Run"/"Stop" button – starts measurement recording or stops the recording. Note: Once clicking "Start", historical data will be deleted.
  • Page 11 Sense it. Manage it. Calibration The device is calibrated. However, when necessary, the BluLite device can be calibrated. Go to setup, and scroll down to “Sensor Calibration” section Turn on the switch: Enter the password “1234” and then press “Done”:...
  • Page 12 Sense it. Manage it. If the BluLite device is already calibrated, the “Reset Calibration” button appears, press on it Insert two reference points and two reading points respectively, then press “Send”: Then the device is ready to use.
  • Page 13: Download And Install

    It is possible to connect a few BLE devices at the same time. Important note: There is a limit of 4 active BluLite devices at the same time due to Windows and BlueTooth limitations. Further info can be found below in the next...
  • Page 14 Important note: when launching DataSuite, it connects automatically to loggers that are activated in the software. If connection fails, BluLite might be out of range or off. When an activated BluLite comes to range or on, it will connect automatically after a short while.
  • Page 15 Sense it. Manage it. Sensors’ Tool tip Active and not Running – Icon is colored and the reading is displayed Active and Running – icon is colored and the progress bar is active Deactive – icon is greyed.
  • Page 16 Sense it. Manage it. Configure device Right click on the BluLite icon then select setup The setup has 3 tabs for configuration properties, sensors and boomerang report. At the bottom of the window you can find: • OK and Run – Save the changes and start a run.
  • Page 17 Sense it. Manage it. Instructions Device name- The name is visible in DataSuite and FourtecLite and is used for connection and reports> It is editable – edit the text in the text box Product name Firmeware Level of Battery The units of the measurement Interval The interval between samples Recording time...
  • Page 18 Sense it. Manage it. NO. Instructions Sensor Configuration A: sensor name The box is ticked by default. It shows that the sensor is activate B: turning it on, activates that alarm for this sensor C: minimum threshold for the alarm D: maximum threshold for the alarm Boomerang Report...
  • Page 19: Display Data

    Sense it. Manage it. NO. Instructions Settings General information about the sensor that will appear in the report Email Contacts A: Add contacts from your contacts list. B: write an email address you C: click + to add the email to the list of contacts for the Boomerang report.
  • Page 20: Download Data

    Download data downloads the data in the current run or last run on device and saves it on your pc. Calibration The device is calibrated. However, when necessary, the BluLite device can be calibrated. Right click on the device on map-view and select: Entre your password (the default password is 1234)
  • Page 21 Sense it. Manage it. Select the sensor and send calibration NO. Instructions In case the logger has more than 1 sensor, please select the relevant sensor for calibration Information about the logger Calibration A: the relevant reference point B: the current value of the logger C: If you are performing an online calibration e.g.
