MicroLogPRO II Quick Start Guide
2012

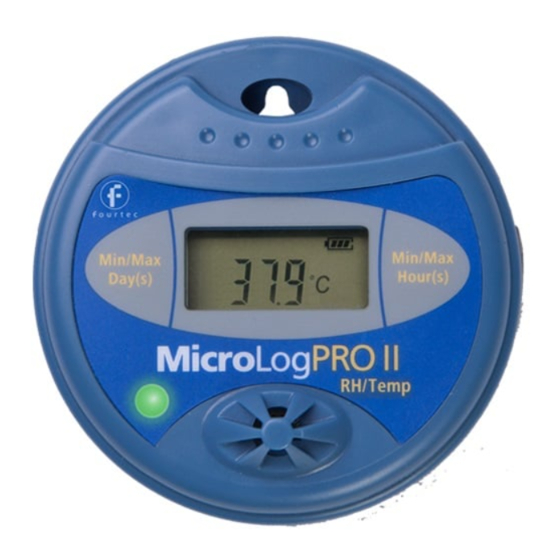

MicroLogPRO II Layout
LCD screen
Min/Max Days button
Mini-USB input
Bi-color LED
* RH/Temp sensor for EC850 model only
General Specifications
EC800
Internal Sensor Range: Temp:
-40 to 80 C
Internal Temperature ±0.3˚C @ 0 to 60 ˚C
Accuracy: ±0.3 ˚C @ -40 to 0 ˚C and 60
to 80 ˚C after calibration only
Temperature Resolution: 0.02 °C
or better
Internal Humidity NA
Accuracy & Resolution:
External Sensor Accuracy: NTC Temperature: 0.3 ˚C ; 4-20 mA: ±20 µA ; 0-10 V: ±5 mV
External Sensor NTC Temperature: 0.03 ˚C ; 4-20 mA: 1 µA (display), 4.0 µA
Resolution: (software) ; 0-10 V: 1 mV (display), 4.0 mV (software)
Memory Capacity: 52,000 samples (over 3 channels)
Sampling Rate: Minimum - Once every second; Maximum - Once every 18 hours
Dew Point: NA
LED: Bi-color Alarm
Power Supply: 2/3 AA 3.6V Lithium battery
Standards Compliance: CE, IP65
www.fourtec.com | support@fourtec.com
Cradle for wall mounting
Min/Max Hours button
External sensor input
RH/Temp sensor
location
EC850
Temp: -40 to 80 C
RH: 5 to 95 %
± 0.3 °C
0.015 C
± 2%, 0.05 %
LCD and Software indication
CE, IP54
Page 1
Rev B, Jan-14, © Fourtec – Fourier Technologies
Installing the DataSuite Software
1. DataSuite software is used to configure the MicroLogPRO II as well as download
and analyze the recorded data. Download the DataSuite software from the
www.fourtec.com homepage.
2. Run the setup file to install the Windows ® software on Windows XP, Vista or 7
(32 or 64-bit). Follow the instructions to complete the installation.
3. Double-click the DataSuite desktop shortcut to launch the software. After the
configuration screens are completed, connect the logger to the computer.
Detecting the MicroLogPRO II
1. Only once the DataSuite software has been installed, connect the data logger
via the mini-USB cable.
2. The logger will be automatically detected by the software and the logger icon
will appear in the main DataSuite window, indicating it is ready for use:
Configuring the MicroLogPRO II using DataSuite Software
1. Right-click on the logger icon in the DataSuite window and select Setup.
2. In the Properties tab, configure the relevant parameters e.g. sampling rate,
temperature scale, operation mode, cyclic mode, unit comment, etc.
3. In the Sensors tab, select the relevant sensors and configure low and high
alarm levels, if necessary.
4. From any tab, click Setup and Run to start logging. The MicroLogPRO II icon will
appear as follows when in Run mode:
5. To stop the logger when connected to the computer, right-click the
MicroLogPRO II icon and select Stop from the context menu.
.
.
