LD Didactic 758 212 Instructions For Use

08/21-W2016-Wei
○
1
○
4
1 Description
The plug-in element is used for circuits that are built on the
DIN A4 or DIN A3 plug-in boards. With this module, the
basics of obstacle detection can be examined with the help
of laser-based optical systems. The sensor unit is
equipped with a modulated laser for high-speed recording
of measured values and has a CAN bus interface for data
exchange with external control devices or the PC.
It is imperative that you read these instructions
completely before commissioning the device!
2 Technical specifications

Supply voltage: U = 11.5 - 13.5 V =

Revolutions: <330 1 / min (5.5 Hz)

Detection range: α = 360 °

Range: 12 m
LD DIDACTIC GMBH  Leyboldstrasse 1  D-50354 Huerth  Phone +49 (0) 2233 604-0  Fax +49 (0) 2233 604-222  e-mail: info@ld-didactic.de
 by LD Didactic GmbH
○
2
○
5
Instructions for use 758 212
CAN bus LIDAR, STE 6/100/200
○
3
○

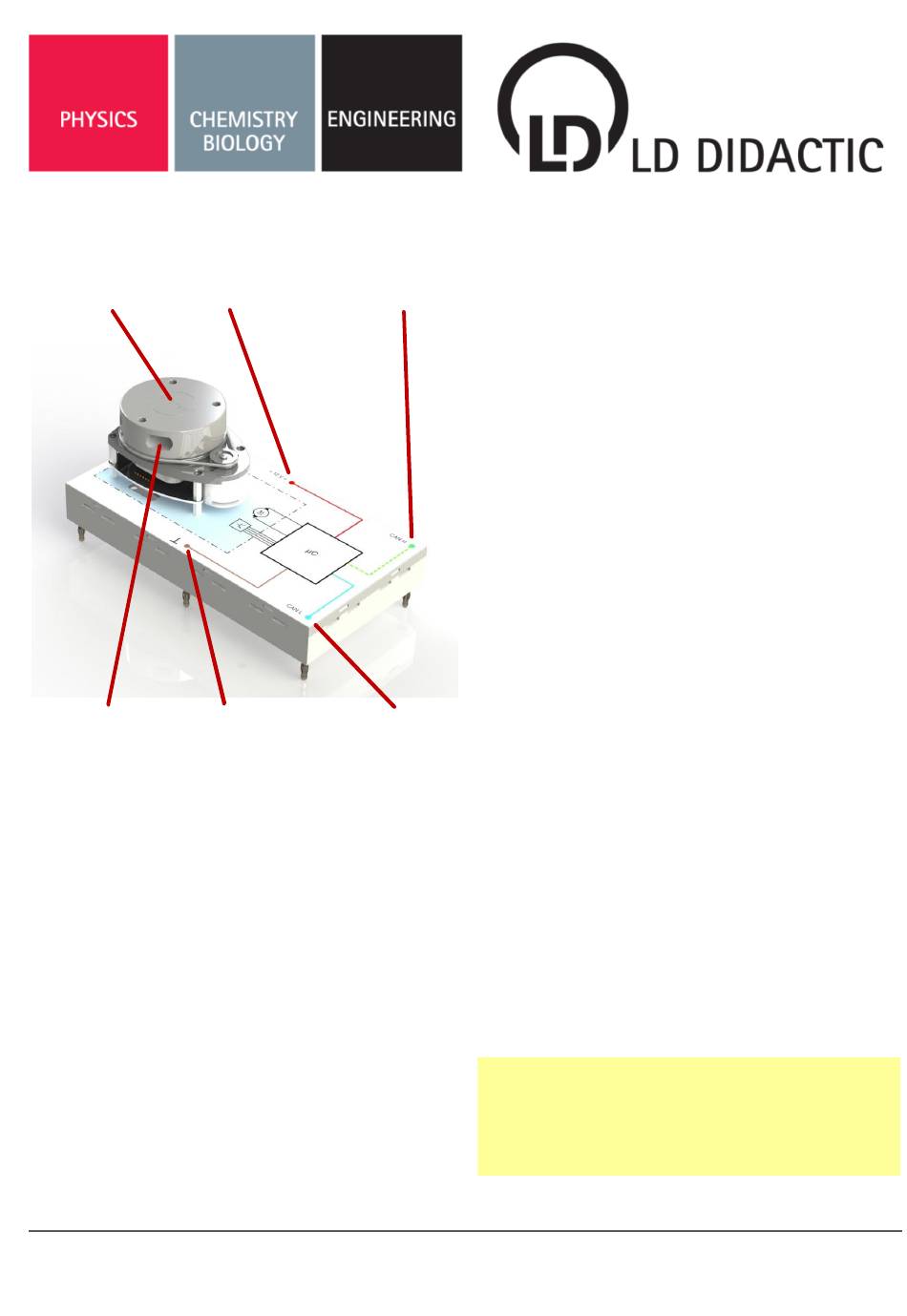

1 LIDAR scan head
○
2 Power supply +12 V.
○
3 CAN high
○
4 Laser exit port
○
5 Ground
○
6 CAN low
○
6

Sampling rate:> 4000 Sa / s

Angular accuracy: 1 °

Distance accuracy: 5 cm

CAN bus: Class C, 500 kbps

Laser: Class I, P <5 mW

Wavelength: λ = 785 nm

Laser pulse duration: t
3 Safety instructions
- Only operate the device with a suitable power supply!
- Make sure the connections are correct!
- The device is only suitable for use in dry interior rooms!
- The device must not be put into operation if it shows visible
damage!
<300 µs
P
Printed in the Federal Republic of Germany
Technical alterations reserved
