ISTRUZIONI PER L'USO
ED IL MONTAGGIO
INSTRUCTIONS DE MONTAGE ET D'UTILISATION
INSTRUCTIONS FOR FITTING AND USE
GEBRUIKS- EN MONTAGE-INSTRUCTIES
GEBRAUCHS- UND MONTAGEANWEISUNG
INSTRUCCIONES PARA EL USO Y MONTAJE
Piano di cottura ad induzione da incasso in vetroceramica
con comandi Touch Control
Plaque de cuisson vitrocéramique à induction à encastrer
avec commande Touch-Control

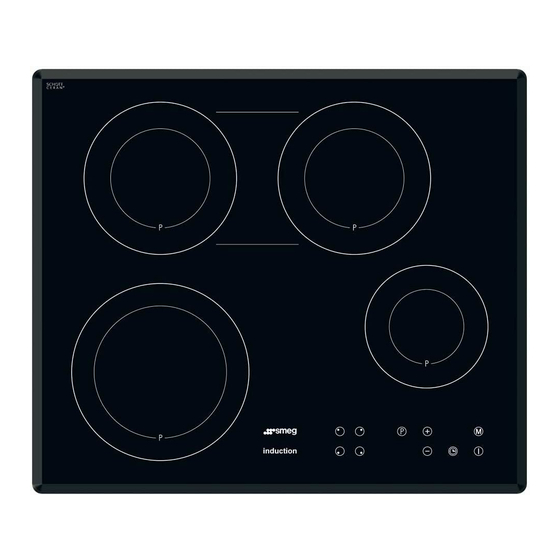

Built-in glass ceramic induction hob with Touch-Control switches
Keramische inbouw-inductiekookplaat met tiptoetsbediening
Einbau-Glaskeramik-Induktionskochfeld mit Touch-Control-Bedienung
Encimera de vitrocerámica por inducción incorporada con mando Touch Control
224244 K41
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smeg SE2642ID
Summary of Contents for Smeg SE2642ID
- Page 1 Touch Control Plaque de cuisson vitrocéramique à induction à encastrer avec commande Touch-Control Built-in glass ceramic induction hob with Touch-Control switches Keramische inbouw-inductiekookplaat met tiptoetsbediening Einbau-Glaskeramik-Induktionskochfeld mit Touch-Control-Bedienung Encimera de vitrocerámica por inducción incorporada con mando Touch Control 224244 K41...
-
Page 2: Table Of Contents
You now own an induction glass ceramic hob with sensor keys. Chapters 2 and 3 of these Operating Instructions contain information on how you can make sure that your hob gives many years of service. These Operating Instructions are for use with several types of hobs. The rating label on the front of these Instructions will show you which type you have bought. -
Page 3: Operations
In all cases the complete control system can be switched off at any time by pressing the on/off key Pressing locking key prevents all the keys - with the exception of the on/off key - from being operated by mistake. - Page 4 . During the next 10 minutes the pan detection will identify a pan that has been placed and it will switch on the selected level. In the same way, the power supply to the cooking zone is interrupted, if the pan is removed from the cooking zone.
-
Page 5: Things To Watch Out For
The glass is not directly heated, though it becomes hot due to the effect of heat reflected by the pan. When the cooking zones are switched off, a hot cooking zone is indicated by the flashing “H” (residual heat indicator). In induction cooking zones, heating is achieved by means of an induction coil installed below the ceramic hob which produces an electromagnetic field. -
Page 6: General
When preparing food with fat or oil stay nearby. Overheated oil can ignite. Never pour water into burning fat or oil. Risk of burning! Cover the dish in order to extinguish the fire and switch off the cooking hob. Let the dish cool down on the cooking zone. -
Page 7: Cleaning And Maintenance
3. Cleaning and maintenance Always clean the glass surface after it has cooled down. Even the slightest amount of dirt will burn into the surface the next time you switch it on. Use only recommended cleaners. Steel wool, sponges and powdered cleaning agents must not be used since they may scratch the surface. -
Page 8: Fitting By Trained Personnel
Before installing the hob, check that the all-round hob seal has no gaps. If the induction hob is installed in a worktop with a ceramic or similar cover (tiles), remove the hob seal and seal the hob from the worktop with a plastic seal, such as heat-resistant silicone rubber. -
Page 9: Electrical Connection
Always disconnect the appliance from the mains before carrying out repairs, this means the cut-out device must be opened. If you have to contact our service department, always quote the type and make numbers. You can find these numbers on the rating label or on page 1 of the Operating Instructions. Each time the induction hob is removed from the worktop, check the seals and replace if necessary. - Page 10 Types: SE 2642 ID, SE 2742 ID, SE 2842 ID Type: SE 2642 ID Fig. 1 Fig. 2 Type: SE 2742 ID Fig. 1 Fig. 2 Type: SE 2842 ID Fig. 1 Fig. 2 Minimum distances to adjacent walls Cut-out dimension...
- Page 11 Types: SE 2642 ID, SE 2742 ID, SE 2842 ID Fig. 3 Fig. 4 224244...
