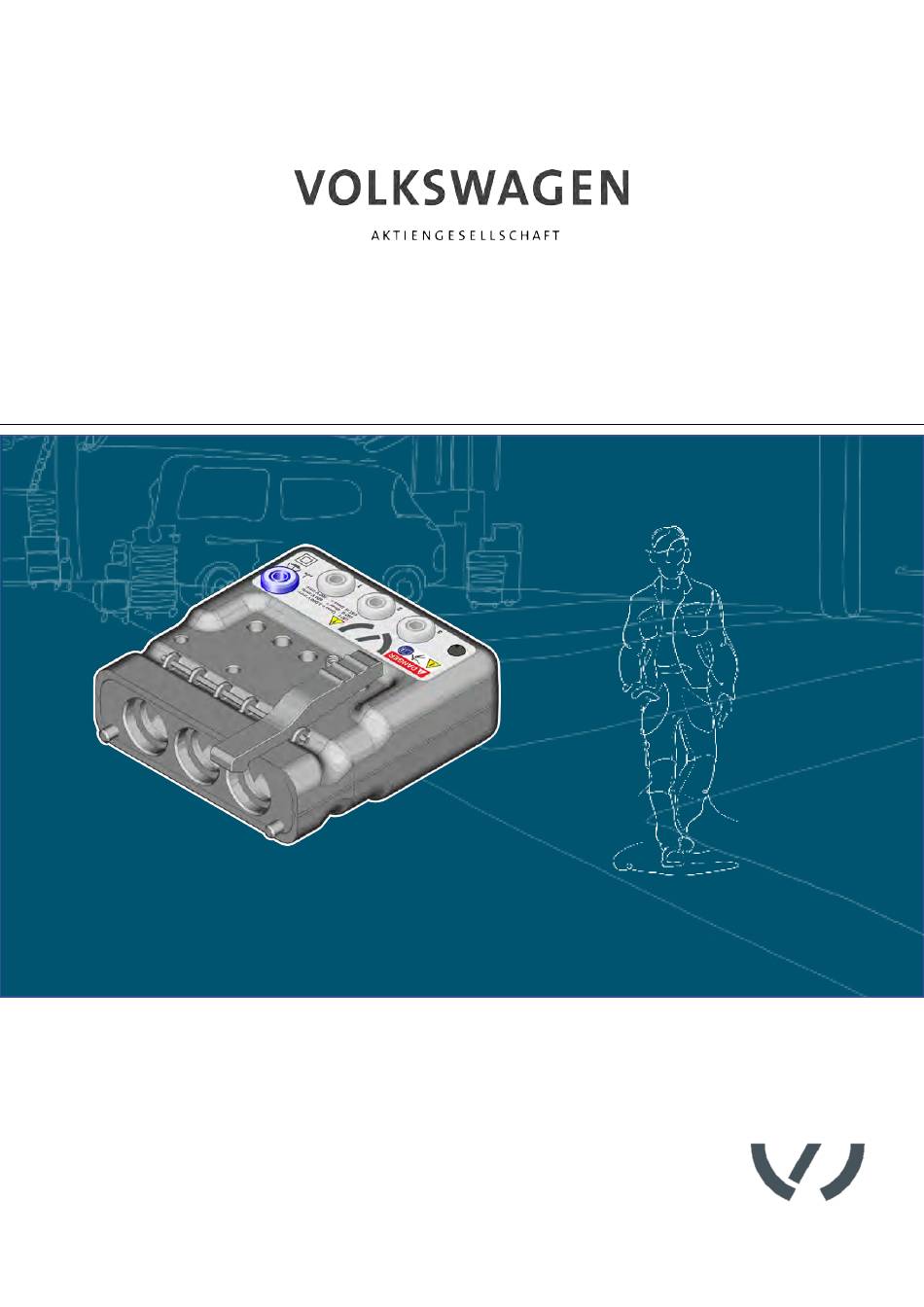

- Page 1 H i g h - v o lt a g e m e a s u r e m e n t a d a p t er V A S 6 5 5 8 / 9 - 3 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 3: Table Of Contents
Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Connection area for IPT screw connector Wiring diagram Technical data OPERATION Startup Detaching the plug connections Cleaning Storage and transportation Disposal Maintenance HELP Warranty Customer service 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 4: Introduction
With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. CAR-connect GmbH – Experience, Expertise and Innovation – MADE IN GERMANY 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22102188 Designation High-voltage measurement adapter VAS 6558/9-3 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 7: Intended Use
• Continuity measurement In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group Only qualified personnel may work with this product! -
Page 8: Product Description
(1) High-voltage measurement adapter, IPT, 3-way (2) USB stick with operating manual Design Product design: (1) Connection area for triple IPT screw connector (2) Retaining lever (3) Test sockets for IPT screw connectors (see wiring diagram) 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 9: Symbols And Connections
The manufacturer is listed under the number E114561 at the Eurofins testing labs. Indicates that the product is intended for measurements up to a maximum of 1000 V in accordance with IEC 61010-31. 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 10: Connection Area For Ipt Screw Connector
The connection area is connected to the following test sockets: Connector Function Ground socket Test socket for triple IPT screw connector (cable 1) Test socket for triple IPT screw connector (cable 2) Test socket for triple IPT screw connector (cable 3) 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 11: Wiring Diagram
Max. 2000 m No limitation. Humidity Max. 80 % up to 31° C, Max. 85 % decreasing linearly to 50 % at 40° C Condensation not permitted. Maximum permissible relative humidity: 60 % in environments with corrosive gas/air. 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 12: Operation
• Use the product only on high-voltage systems and components that have been certifiably de-energized! WARNING Danger of fatal electric shock! The electrical voltage in high-voltage systems is lethal and can cause death by electric shock! • Use the product only for the applications intended by the vehicle manufacturer! 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 13: Startup
3. Make sure that the lever engages behind the triple IPT screw connector. 4. Connect the high-voltage measurement module to the IPT test sockets according to the guided fault finding. You can now perform measurements in accordance with the guided fault finding. 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 14: Detaching The Plug Connections
Before you pull the IPT screw connector out of the socket, you must release the locking mechanism. Press and hold down the lever on the side with the grip. Pull the IPT screw connector out of the socket. The plug connection is now detached. 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 15: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... -
Page 16: Help
Always include the serial number with any product queries. This number is found on the product. CAR-connect GmbH Am Egelingsberg 8 38542 Leiferde, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@car-connect.cc www.car-connect.cc 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3... - Page 17 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 12 / 2020 12.VW.2210.2188_BA_V01_EN VAS 6558/9-3...
