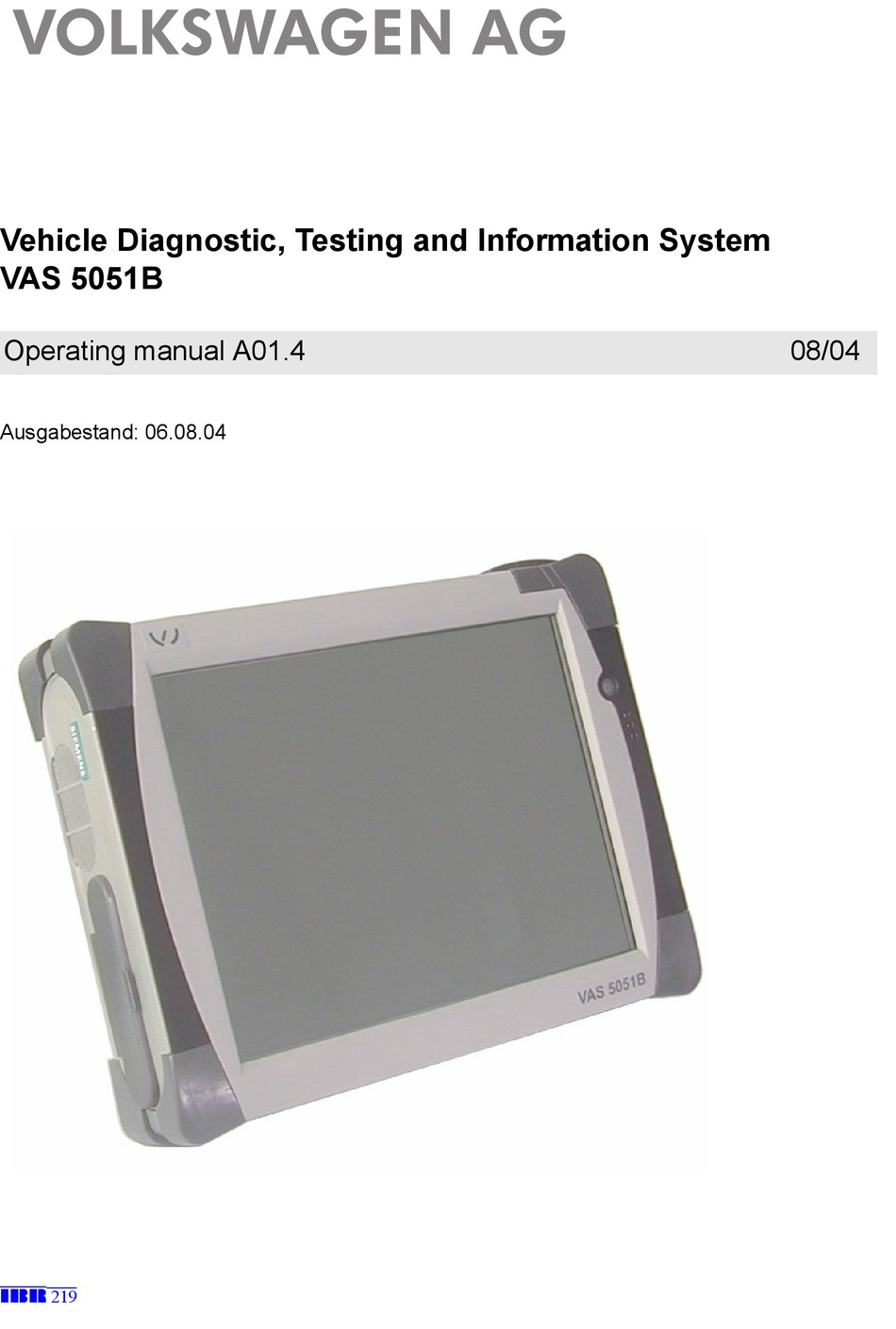

Vehicle Diagnostic, Testing and Information System
VAS 5051B
Operating manual A01.4
08/04
Ausgabestand: 06.08.04
IBR 219

Advertisement

loading
Need help?

Need help?

Do you have a question about the VAS 5051B and is the answer not in the manual?

Questions and answers

Related Manuals for Volkswagen VAS 5051B

Summary of Contents for Volkswagen VAS 5051B

  • Page 1 Vehicle Diagnostic, Testing and Information System VAS 5051B Operating manual A01.4 08/04 Ausgabestand: 06.08.04 IBR 219...
  • Page 2 Operating Manual. Therefore read the Operating Manual before use. Safety instructions may also appear on the screen of the tester. Follow all the instruc- tions displayed. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...

  • Page 3: Important Safety Instructions

    This equipment has internal arcing or sparking parts wich should not be exposed to flammable vapour. This equipment should be located at least 460 mm (18 inches) above the floor. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 4 Operation from the front seat is too dangerous, e.g. in the event of airbag activation. VAS 5051 To supply the VAS 5051 with power from the vehicle battery, use only the 3 m diagnostic cable. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 5 Operating Manual. 16. Caution! when connecting other vehicle makes The VAS 505x diagnostic devices were developed for vehicles from the Volkswagen group. If the tester is connected directly to vehicles from other manufacturers, damage to the vehicle could result. Therefore if vehicles of other makes are to be tested using the general OBD functions in...
  • Page 6 2. this device must accept any interference received, including interference that may cause undesired operation. 20. Warning! FCC 15.21: Changes or modifications made to this equipment not expressly approved by COMPANY may void the FCC authorization to operate this equipment. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 7 (2) this device must accept any interference received, including interference that may cause undesired operation. Note A Bluetooth interface application for communication with external devices, e. g. diag- nostic head VAS 5054 is projected. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...

  • Page 8: Technical Data

    Pollution Degree II Overvoltage category I Power supply Power is supplied by one of the following, depending on the application: - Power adapter - Battery - Vehicle electrical system Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 9 Protection The input is protected against disturbance variables to DIN 40839 part 1, test pulses 1 to 4, test severity IV. The input is protected against polarity reversal. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...

  • Page 10: Power Adapter

    Rated voltage range AC 100 to 240 V Rated frequencies 50 - 60 Hz DC cable The DC cable (approx. 1.2 m) is permanently connected to the power adapter. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 11 Plug type Plug for non-heating apparatus type C13, EN60320/C13 Variant 1: Schuko plug, Type VII as per CEE(7) Variant 2: USA plug, Type 498 G as per NEMA 5-15 Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...

  • Page 12: Test Instruments

    ±1.5 % of m. ±1 mA 500 Hz, crest factor max. 3, 0 to 2 A 0.001 A ±1.5 % of m. ±10 mA Ri ≤ 250 mΩ) via U/R/D/I measuring lead Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 13 -1800 to +1800 A ±5.5 % of m. ±2 A ±3.5 % of m. ±2 A bis ±1500 A The accuracy of the current pick-up is given only after calibration. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 14 ±4.5 % of m. ±80 mV 0 to 160 V 0.1 V ±4.5 % of m. ±275 mV 0 to 400 V 0.1 V ±4.5 % of m. ±550 mV Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 15 Bandwidth 100 kHz (±3 dB) Resolution 10 Bit Accuracy DC to 10 kHz ±1 %; 100 kHz -3 dB Measurement range selec- Manual or automatic in Auto Setup tion Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 16 ±0.4 V 50 mV/DIV ±1.6 V 200 mV/DIV ±4 V 500 mV/DIV ±16 V 2 V/DIV ±40 V 5 V/DIV ±160 V 20 V/DIV ±400 V 50 V/DIV Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04//...
  • Page 17 5 s/DIV 10 Hz 10 s/DIV 5 Hz 20 s/DIV 2.5 Hz 50 s/DIV 1 Hz 100 s/DIV 0.5 Hz In channel 1 mode Only in Draw mode Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04// 2-10...
  • Page 18 1 % measu- rement range increments Trigger delay Pre-trigger and post- trigger, adjustable in 10 % deflection increments Trigger mode Single, Normal, Auto, Auto Level, Auto Setup, Draw mode Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04// 2-11...
  • Page 19 (VDE 0805, EN 60950, IEC 950, UL 1950, CSA 22.2 No. 950) For operation in the USA and Canada, use a UL cable, an oil resistant cable or a CSA-approved mains power cable. Operating manual VAS 5051B A01.4 08/04 All rights reserved. A5E00309941 //6.8.04// 2-12...
