Sebo ET-1, ET-2 - Vacuum Cleaner Manual

TECHNICAL DETAILS

PRODUCT FEATURES

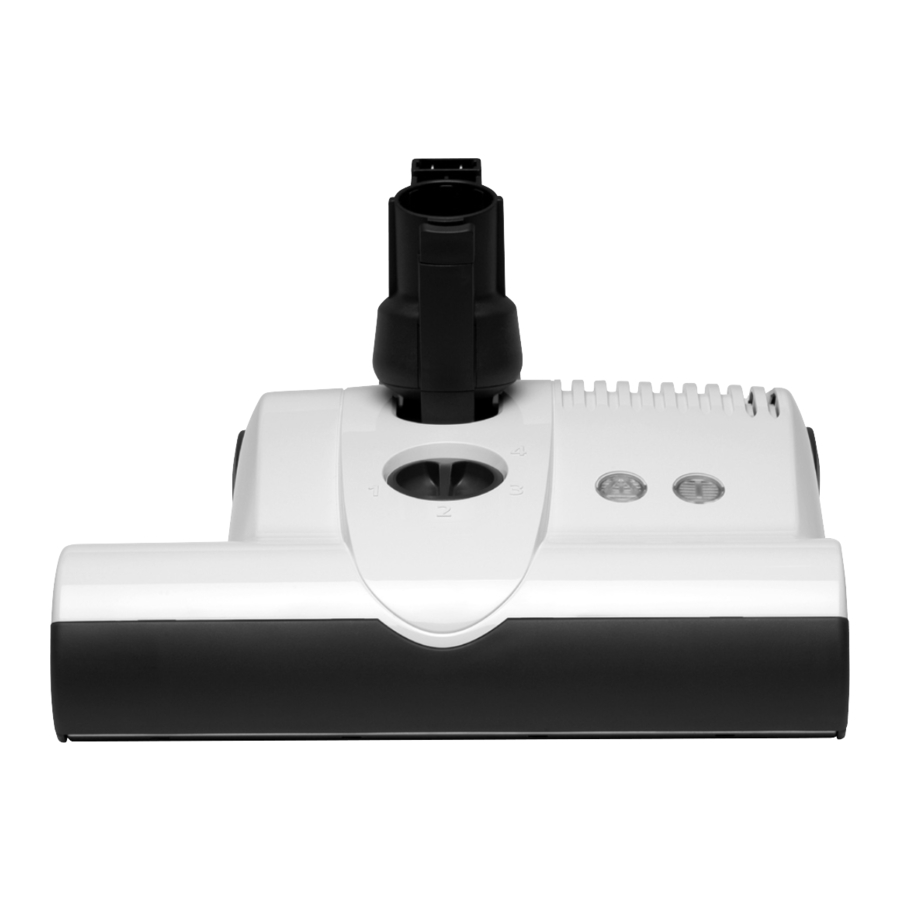

Your SEBO ET-1 and ET-2 Power Heads are designed for use with SEBO canister vacuum cleaners and central vacuum units. Please note: The on/off foot switch is not available on some models.

The SEBO ET-1 (12 inches wide, 10 1⁄2-inch cleaning path) and ET-2 (14 3⁄4 inches wide, 13-inch cleaning path) – This model comes in two widths and has four-level manual brush height adjustment. It aggressively cleans carpets, but the brush roller may be switched off by pressing the green illuminated on/off switch on the power head, or the switch located on the handle, so delicate rugs and hard floors can be cleaned with straight suction. Its amazing 180° steering ability provides maneuverability around furniture, and the extension side of the L-shaped head makes cleaning edges and under counters easy.

Brush Obstruction Light & Auto Shut Off – If an obstruction be-comes jammed in the brush roller, a red brush-warning light will quickly flash, the brush roller will immediately stop spinning and the vacuum will shut off. The user should turn the power switch off, unplug the machine, and immediately remove the obstruction. If the user restarts the machine without removing the obstruction, the power head will again shut off and the red light will flash. This prevents the belt from breaking and protects the motor and carpet from damage.

Incorrect Height Setting or Brush Deterioration Light – To ensure optimum cleaning at all times, a red brush-warning light will illuminate, to indicate when the brush height is set too high for effective cleaning or when the brush roller should be replaced due to excessive wear.

Manual Height Adjustment - The ET power head brush height may be adjusted for high carpet (dial setting 4) and progressively lower to bare floor (dial setting 1). The brush-warning light located on top of the power head will illuminate red if the height setting is too high or if the brush roller is worn. Dial down to the next number until the red light turns off.

Manual and Automatic Brush Shut Off – The ET power head can clean delicate rugs or hard floors with straight suction because the brush roller can be manually switched off by pressing the green illuminated on/off switch on power heads equipped with the foot switch. On power heads without the foot switch, the brush roller can be switched off on the handle. Also, the brush roller automatically shuts off when the suction hose from an attached vacuum is removed from its housing port or when the swivel neck of the power head is in its upright-locked position.

Stationary Use - When the power head swivel neck is in the upright-locked position, it is designed to shut off the brush roller. The on/off light* illuminates yellow when in the upright locked position. The green light will illuminate only in the operating position. An operating power head should not stand stationary on the floor for inappropriate periods of time.

Easy Brush Removal and Cleaning – Cleaning hair or other debris from the brush roller or replacing it when its bristles are worn is quick and easy, and no tools are required! This feature ensures consistently effective brush agitation of the carpet pile.

Easy Maintenance – The clog removal door and brush roller are easy to access on the power head.

CENTRAL VAC WAND

The optional SEBO Central Vac Wand, part #6272CA, fits on SEBO ET-1 and ET-2 power heads and can attach to most existing central vacuum handle/hose units. The telescopic wand can be adjusted from 24" to 37" in length to accomodate the correct operating height for individual users.
The wand is made of stainless steel and highquality plastic that is durable and reliable.

IDENTIFICATION OF PARTS

1. Power head
2. Brush height adjustment
3. Swivel neck
4. Connection plug
5. Brush obstruction light
6. On/off brush switch and power light for models with foot switch
   Brush power light for models without foot switch
7. Brush roller end cap
8. Foot Pedal
9. Telescopic tube release button
10. Brush roller release button

ASSEMBLY

Attaching the Power Head to the Telescopic Tube of your Unit Canister or the Central Vac Wand

Insert the base of the telescopic tube (11) or central vac wand into the power head swivel neck (3). Make sure that the connection tab (12) is properly aligned with the connection plug (4) in the swivel neck.(figure 1)

Attaching the Brush Clip Adapter to the Telescopic Tube

1. Pull the telescopic tube at least 3 to 5 positions above the fully-lowered position (figure 1). Press the adapter (14) over the telescopic tube (11) until it snaps on to the tube. The adapter will lock into the indented lines on the tube.
2. Lay the telescopic tube (11) with the adapter attached (14) on a stable surface (e.g. a table) and press the brush clip (13) over the adapter (figure 2). The outer ridges of the brush clip adapter hold the brush clip (13) in place.


Attaching the Central Vac Adapter

See Figure 3.

1. Locate the "stop groove"(16) inside the adapter (15).
2. Loosen the two screws (17) on the adapter (15), but do not remove. Insert the wand into the tube of the adapter until it rests FIRMLY against the "stop groove" (16). The tube MUST be fully inserted up to the "stop groove." If necessary, place the adapter against a soft stationary surface and use a RUBBER mallet to GENTLY tap the adapter onto the tube until it rests against the "stop groove."
   NOTE: The tube MUST be FULLY inserted.
3. Tighten the screws (17) but do not overtighten them.

OPERATING INSTRUCTIONS

Operating The Device Without Foot Switch

See Figures 4, 5 & 6

1. The power head may be switched on by pressing the button on the handle of the telescopic tube (figure 5). When the power head is switched on with the swivel neck (#3, figure 6) in the upright locked position, the brush roller will not spin. To release the power head from the upright locked position, press down on the foot pedal (#8, figure 6) and lower the swivel neck into the normal operating position. The brush roller will then start spinning and the on/off light on the power head will illuminate in green. The handle can be lowered to a horizontal position useful for vacuuming under beds.
2. To switch from brushing action to straight suction for delicate floors, press the brush roller on/off switch (#18, figure 5) on the handle of the telescopic tube. This will power off the brush roller on the power head. The brush roller indicator light on the power head will turn off until the on/off switch is turned on again.

Operating The Device With Foot Switch

1. When the power head is switched on with the swivel neck (#3, figure 6) in the upright locked position, the brush roller will not spin and the on/off light will illuminate in yellow. To release the power head from the upright locked position, press down on the foot pedal (#8, figure 6) and lower the swivel neck into the normal operating position. The brush roller will then start spinning and the on/off light on the power head will illuminate in green. The handle can be lowered to a horizontal position useful for vacuuming under beds.
2. To clean delicate or hard floor surfaces with straight suction only, the power head is equipped with an on/off foot switch (#6, figure 4). When this switch is used to turn off the brush roller, the green light will change to yellow, indicating to the user that the brush roller is not turning. Pushing the button again will turn on the brush roller and the light will turn green.

The Brush Height Adjustment Feature

See Figure 4.
To adjust the brush height, rotate the dial (2) for high carpet (dial setting 4) and progressively lower (bare floor is dial setting 1). The brush obstruction light located on top of the power head (5) will illuminate in red if the height setting is too high. Dial down to the next number until the light is no longer illuminated. If the red light does not turn off, the brush roller may be worn.

Indicator Lights

The use of a power head is recommended for the optimal cleaning of carpets. The rotating of the swivel neck (figure 7) allows the power head to steer left and right.

By pushing the foot pedal (#8, figure 6) and lowering the swivel neck, you activate the power head and the brush begins spinning. Failure to use the foot pedal will cause lasting damage to the machine. The electronic brush control constantly monitors the status of the brush, communicating the status through the lights on top (figure 4).

The quality, condition, coating, texture, age and manufacturing technique of all floor surfaces vary. Therefore, power heads with rotating brushes, including your SEBO, may damage some floor coverings or surfaces. Some types of highgloss hardwood floors, cushion vinyl, berber carpets, long shag, and delicate or hand-woven carpets are particularly vulnerable to damage by rotating brushes. When possible, consult the materials supplied by your flooring manufacturer for information on proper upkeep and cleaning. To ensure that your new SEBO power head is compatible with your floor, please test the power head on each type of flooring surface in a small inconspicuous area to determine if any damage occurs. If damage occurs, stop using the power head immediately!

MAINTENANCE

Always disconnect power head from power source before dismantling any part of the machine!

Removing the Brush Roller

To remove the brush roller, press the button marked "PRESS" (10) and turn the brush roller end cap (7) downward. Turn the brush (19) slightly to the right and pull it out. We recommend regular removal of threads and hair which have wound around the brush roller. See Figure 8.

Cleaning the Brush Roller

Disconnect power head from power source before attempting to clean the brush.
The brush should be cleaned regularly. Fibers and hair can be pulled out of the brush while manually rotating the roller, or the roller can be removed from the power head to clean it.

Brush Roller ET-1
12-inch
Part #5010AM

Brush Roller ET-2
15-inch
Part #2838AM

CLOG REMOVAL

Clogs in the Airflow Pathway

Many clogs can be removed by accessing the airflow pathway via the orange colored access door (20) located on the underside of the power head. See Figure 9.

Clogs in the Swivel Neck

See Figure 10.
Check the swivel neck regularly for blockages. Do not open the machine. To check for a clog in the swivel neck (3), remove the telescopic tube by pressing the release button (9). Pull the tube out of the swivel neck. Push the obstruction down the neck with a stick or long screwdriver and remove it through the orange access door (#20, figure 9).

For clogs not in the power head, please refer to your canister vacuum or central vac unit owner's manual.

TROUBLE-SHOOTING GUIDE

Always disconnect the power head before dismantling any part of the machine!
PROBLEM	REASON	SOLUTION
The unit does not turn on	Telescopic tube not inserted properly.	See "Assembly".
	Not plugged into good outlet.	Use another outlet.
	The internal switch in the swivel neck is off because the machine is in the upright locked position.	Release the foot pedal and lower the suction neck to operating level. See "Operating instructions"
	Models without foot switch: The on/off switch on the handle of the telescopic tube is in the off position. Models with foot switch: The on/off switch on the power head is off.	Models without foot switch: Press the on/off switch on the handle of the telescopic tube to turn the power head on. See figure 5 in "Operating instructions" Models with foot switch: Press the power head brush on/off switch. See figure 4 in "Operating instructions"
Red brush-warning light is on	Reduced brush action.	Brush is not fully in contact with the floor. Lower the height setting.
	Brush worn.	Replace brush. See "Maintenance".
No light is illuminated (Models without foot switch) Yellow on/off light is illuminated (Models with foot switch)	The internal switch in the swivel neck is off because the handle is in the upright locked position.	Release the foot pedal and lower the suction neck to operating level. See "Operating instructions"
	The brush roller on/off button is switched off.	Press the on/off switch. See "Operating instructions"
Red brush-warning light is flashing and brush stops spinning	Jammed brush roller.	Remove brush roller obstruction. See "Maintenance".
	Overload shut down from excessively deep but loose carpet pile (e.g., long shag carpet).	If carpet pile is too deep and loose, then use a "shag rake" attachment instead of the ET-1 or ET-2 power head.
Does not pick up	Telescopic tube of vacuum not inserted properly into power head.	See "Assembly".
	Clog in airflow pathway or swivel neck.	Remove clog. See "Clog Removal".

SCHEMATIC AND PARTS LIST

ET-1 POWER HEAD WITHOUT FOOT SWITCH SCHEMATIC AND PARTS LIST

ET-1 POWER HEAD WITH FOOT SWITCH SCHEMATIC AND PARTS LIST

ET-2 POWER HEAD WITHOUT FOOT SWITCH SCHEMATIC AND PARTS LIST

ET-2 POWER HEAD WITH FOOT SWITCH SCHEMATIC AND PARTS LIST

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
SAVE THESE INSTRUCTIONS.

To reduce the risk of fire, electric shock, or injury:

1. Do not leave power head while plugged in. Unplug when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not use near small children or pets. Do not allow to be used as a toy. Use of this product by children should always be supervised by an adult.
4. Use only as described in this manual. Use only manufacturer-recommended attachments.
5. If power head is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a SEBO service center.
6. Do not plug in if switch is in the ON position.
7. Always carry the power head over steps and sills.
8. Do not handle power head with wet hands.
9. Do not put any object into openings. Do not use machine with any openings blocked. Keep openings free of lint, hair, and anything that may reduce air flow.
10. Do not remove any screws from power head.
11. Do not vacuum up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
12. Turn off all machine controls before storing.
13. Use extra care when cleaning on stairs.
14. Machines can cause a fire when operated near flammable vapors or materials. Do not operate this power head near flammable fluids, dust or vapors or vacuum up flammable or combustible liquids such as gasoline.
15. Maintenance and repairs must be done by qualified personnel.
16. Use only original SEBO replacement parts.
17. Do not use power head as a step.
18. Do not leave power head standing in one place with machine turned on.
19. Keep hair, loose clothing, fingers, and all parts of body away from power head openings and moving parts. Do not place fingers or other body parts under power head unless it is unplugged.
20. Do not place the power head over rug edges or fringe.
21. The brush motor has a manual reset electronic protec- tor. If the brush roller is jammed, the power head will shut down automatically. Turn the power head off and unplug it before removing the obstruction. Once the obstruction is removed you may plug it in and turn on the power head.
22. Store the power head in a dry place at room temperature.
23. Use this power head only in combination with a SEBO vacuum cleaner or a SEBO central vac adapter.
24. Do not connect power head to a malfunctioning or damaged vacuum cleaner, central vac adapter or central vac system.
