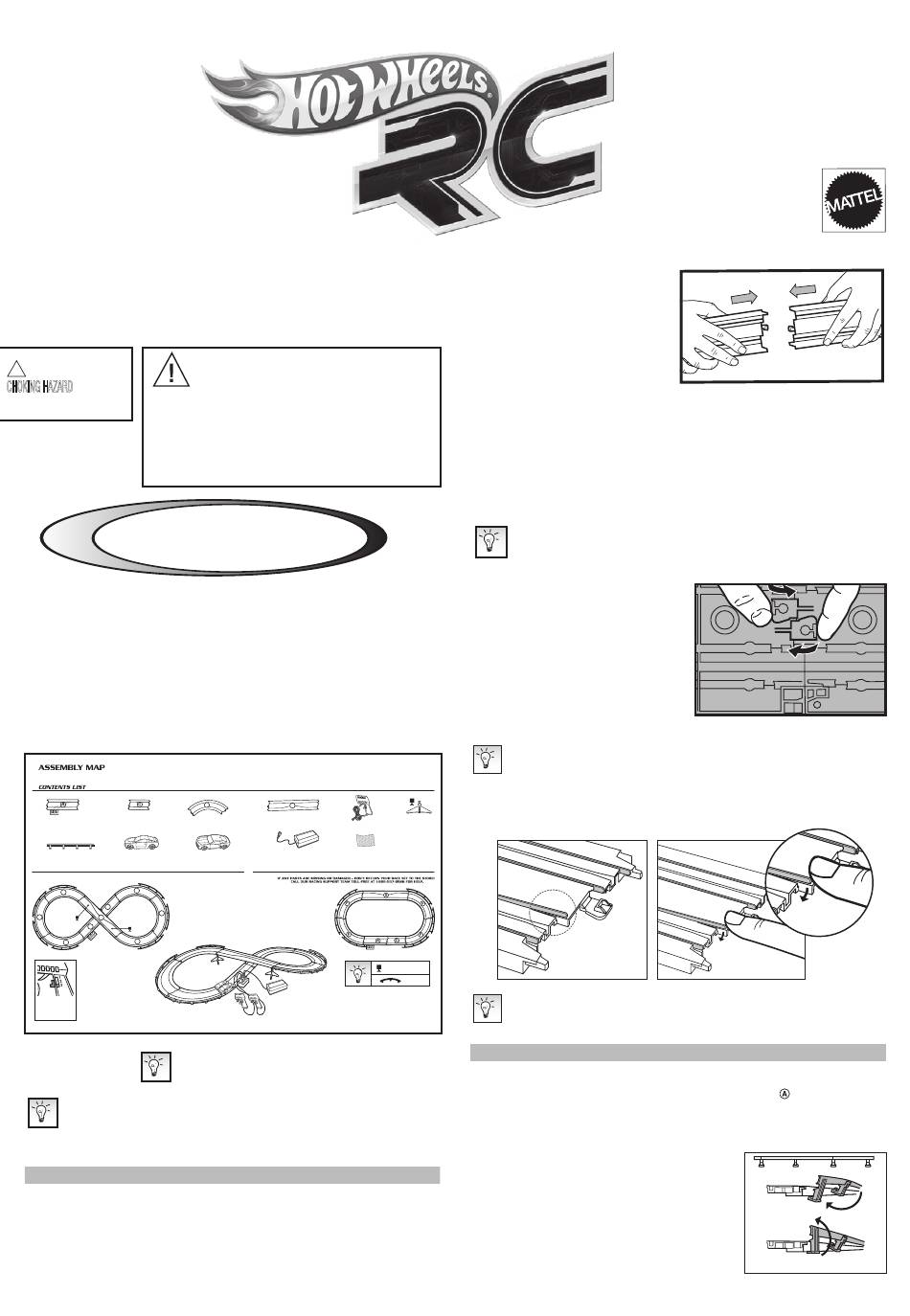

Mattel HotWheels RC V0168 Instruction Manual

INSTRUCTION MANUAL
Keep these instructions for future reference,
as they contain important information.
WARNING:
!
CHOKING HAZARD –
Small parts.
Not for children under 3 years.
START HERE!
ADULT ASSEMBLY REQUIRED.
Follow the step-by-step instructions to set up your race set.
Please separate the "Assembly Map" page, and keep it handy during assembly.
This page contains the contents list and large-scale Layout Drawings of the
fully-assembled track. You'll need to refer to it as you go.
The Assembly Map looks like this:
1x 1x
6" STRAIGHT
9" TERMINAL TRACK
7x
1x
GUARDRAILS FORD MUSTANG
MAIN LAYOUT DRAWING
Use a guardrail on the outside of the curves.
F
F
C
F
F S
1
A
1
F
F
1 = Beginner
2 = Average player
3 = Skilled player
Look for this symbol throughout this manual. It indicates important
information.
Be sure to check out the Troubleshooting Guide on the back of the
Assembly Map.
I. BASIC TRACK ASSEMBLY
Start out on a clean, hard, flat racing surface – not carpeting.
Take out all the track pieces (and other parts) and check them
carefully against the contents list on the Assembly Map.
CAUTION:
This product
contains a sharp edge(s).
For adult assembly only.
Take extra care during
unpacking and assembly.
This page shows the contents list and large-scale Layout
Drawings of the fully-assembled track (tracks are not drawn to scale).
You'll need to refer to it as you assemble your race set.
Refer to the Instruction Sheet for detailed step-by-step instructions
for setting up and using your race set.
6x
2x
1x
F S
15" SQUEEZE
9" RADIUS CURVE
CONTROLLERS
1x
1x
1x
BATTERY PACK
CHEVY CAMARO
Refer to the package
for color photographs
ALTERNATE LA YOUT DRAWING
of the assembled layouts.
1. There are letters molded into each
track piece. These letters are used
in these instructions to indicate
which track piece goes where.
Following the layout drawings on
the Assembly Map, you may want
to lay out your track – without
connecting any track pieces. That
way you'll be able to see how the
track layout goes together.
2. To connect track pieces: working on the flat surface, push the ends of the
track pieces together. Make sure they snap together securely – you'll hear a
click when they're properly connected.
Remember: if the track connections aren't right, electric power won't
flow from one track section to the next.
3. To disconnect track pieces, simply
reach underneath where the track
pieces meet and press the locking tabs
together with thumb and forefinger
as shown.
Occasionally the metal track rails will stick up too far from the surface of a
track piece, as shown. This may interfere with vehicle movement. To correct,
simply press the rail back down with your finger. If the problem persists,
please contact Customer Service toll-free at 1-888-557-8926.
2 x
1
#2 SUPPORTS
SANDPAPER
1
= TRACK SUPPORTS
= GUARDRAILS
Sometimes brand-new track may need a quick cleaning for best performance.
V0168-0920
© 2010 Mattel, Inc. All Rights Reserved.
Check the Maintenance section of this manual for more information.
II. DETAILED TRACK ASSEMBLY
a. Your race set makes two different layouts. Refer to the Assembly Map for
detailed track assembly. Start with the Terminal Track
adding track pieces until your layout is complete.
b. Once your layout is assembled, you'll need to add guardrails. Refer to
the Assembly Map for placement. To attach
a guardrail: gently flex the guardrail before
attaching it. Carefully attach the bottom of
the guardrail first. Then pull up and snap into
place. Don't force guardrails into place.
5+
®
V0168-0920
and continue
