WURM FKD003 Instruction Manual

Field module for installation in refrigeration units for cold locations

Advertisement

Quick Links

1 FKD003

Field module for installation in refrigeration units for cold locations
1.1

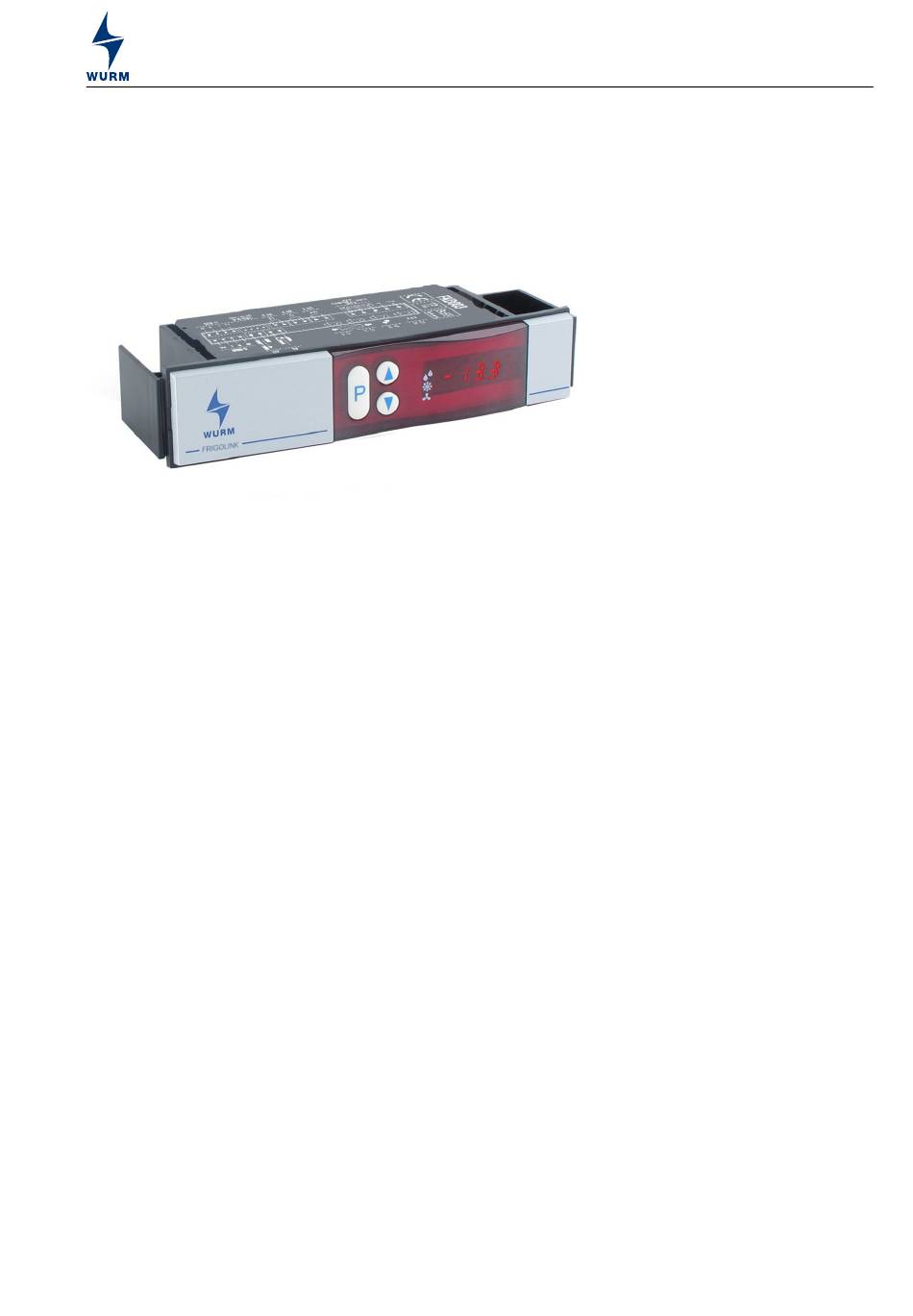

Front view

Fig. 1: Front view
1.2

Features

Operation of electronic expansion valves, pulsed via ATV230 (valve controller 230V~/=)
Control of one evaporator per module
Integrated temperature display
Tool-free front installation
Fixed input/output assignment for sensors, control inputs and relays
Emergency program in case of CAN bus errors
External power supply via TR9-9-4
Secure connection via pre-assembled accessories (ZCB)
Front panel with sealing frame for increased splash protection
Connection to master module via Wurm CAN field bus (F-BUS)
FKD003_V2.2_PI_2024-03_EN
Field module for installation in refrigeration units for cold locations
Subject to technical changes
FKD003
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FKD003 and is the answer not in the manual?

Questions and answers

Summary of Contents for WURM FKD003

  • Page 1: Fkd003

    Emergency program in case of CAN bus errors • External power supply via TR9-9-4 • Secure connection via pre-assembled accessories (ZCB) • Front panel with sealing frame for increased splash protection • Connection to master module via Wurm CAN field bus (F-BUS) FKD003_V2.2_PI_2024-03_EN Subject to technical changes...
  • Page 2: Safety Instructions

    Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
  • Page 3: Table Of Contents

    FKD003 ........
  • Page 4: Installation / Connections

    All connections are designed as plugs for pre-assembled cable. Fig. 4: Connections for pre-assembled cables The following cables, CAN bus adapters and terminating resistors are available for the FKD003. Cables Application ZCB-C/TR-0.6...
  • Page 5: Display Elements And Control Elements

    FKD003 Field module for installation in refrigeration units for cold locations Display elements and control elements Fig. 5: Display elements and control elements Parameter change approved Advanced level Value/parameter number Defrost; cooling; fan Down key Confirm key Up key Device operation The setting menu is divided into 2 distinct function areas, the standard level and the advanced level.
  • Page 6: Set Module Number

    FKD003 Field module for installation in refrigeration units for cold locations When changing the parameters, it is not necessary to re-enable access to make further value adjust- ments. Actual values are simply displayed. They cannot be adjusted even if the LED "Parameter change ap- proved"...
  • Page 7: Parameter

    FKD003 Field module for installation in refrigeration units for cold locations Parameter Standard level: actual value Fac- Parameter Min. Max. Description tory Control actual value Current actual value of temperature control Advanced level: actual value and setpoint Fac- Parameter Min.
  • Page 8: Error Messages And Emergency Programs

    FKD003 Field module for installation in refrigeration units for cold locations Error messages and emergency programs In case of a fault, the display flashes with the fault code. Monitoring function and emergency pro- Display Cause grams Address conflict on the CAN bus The set module number is already assigned.
