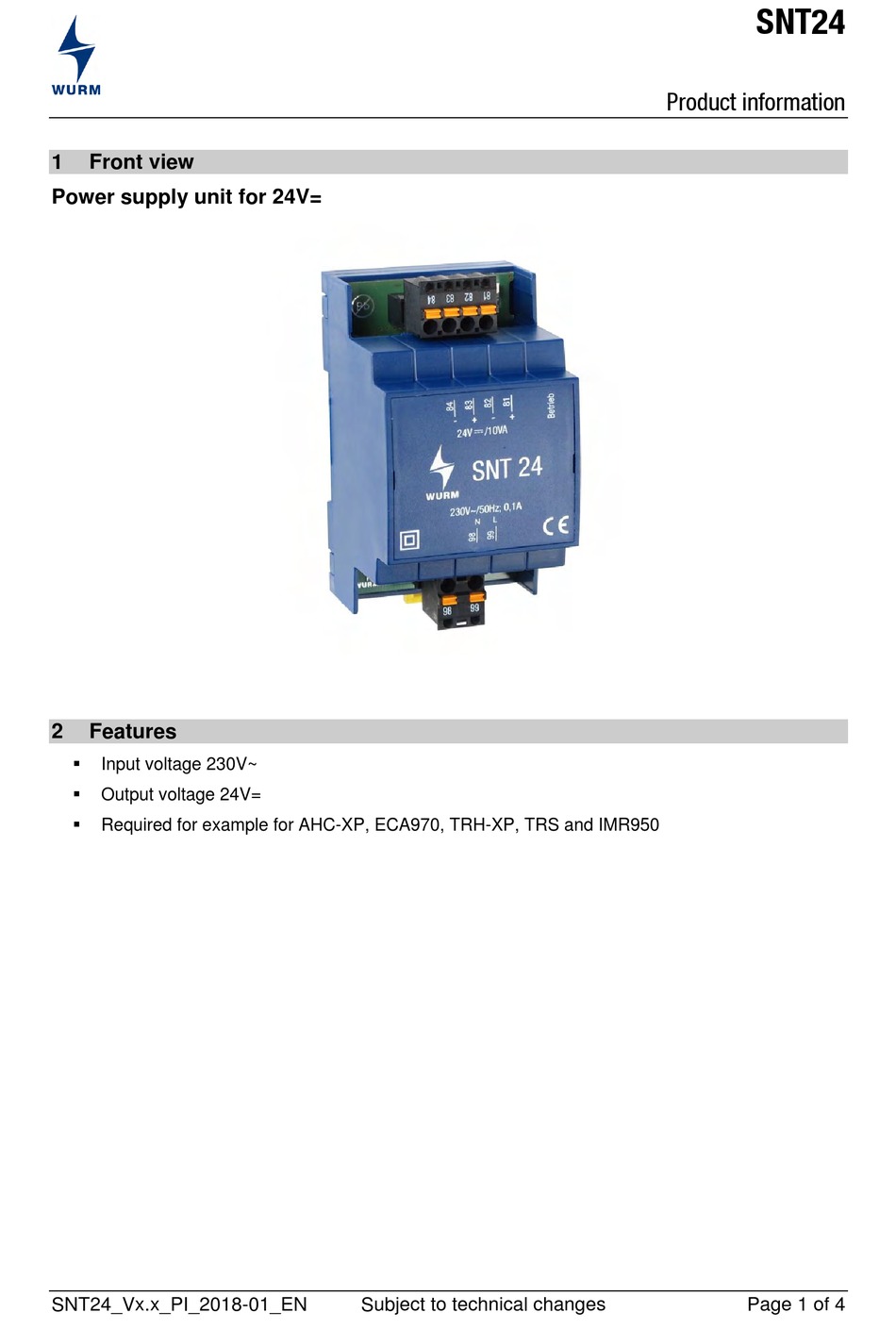

- Page 1 SNT24 Product information Front view Power supply unit for 24V= Features Input voltage 230V~ Output voltage 24V= Required for example for AHC-XP, ECA970, TRH-XP, TRS and IMR950 SNT24_Vx.x_PI_2018-01_EN Subject to technical changes Page 1 of 4...
- Page 2 Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
- Page 3 SNT24 Product information Connection diagram Fig. 1: Connection diagram Installation This device is designed for top-hat rail installation. The housing is a standard size and is also suitable for installation in fuse boxes, distribution switch boxes or electric boxes of refrigeration units.
- Page 4 SNT24 Product information Technical data Power supply 230V~, +10% / -20% Output voltage 24V=, controlled (±5%) Output current Max. 410mA, temperature controlled, not reversible Power output 10VA Ripple <5% Dimensions (WxHxD) 53 x 90 x 58mm (DIN 43880) Electrical connection Push-in terminals 2.5mm²...
