WURM FGT003 Product Information

Field module for building technology solutions

Download this manual

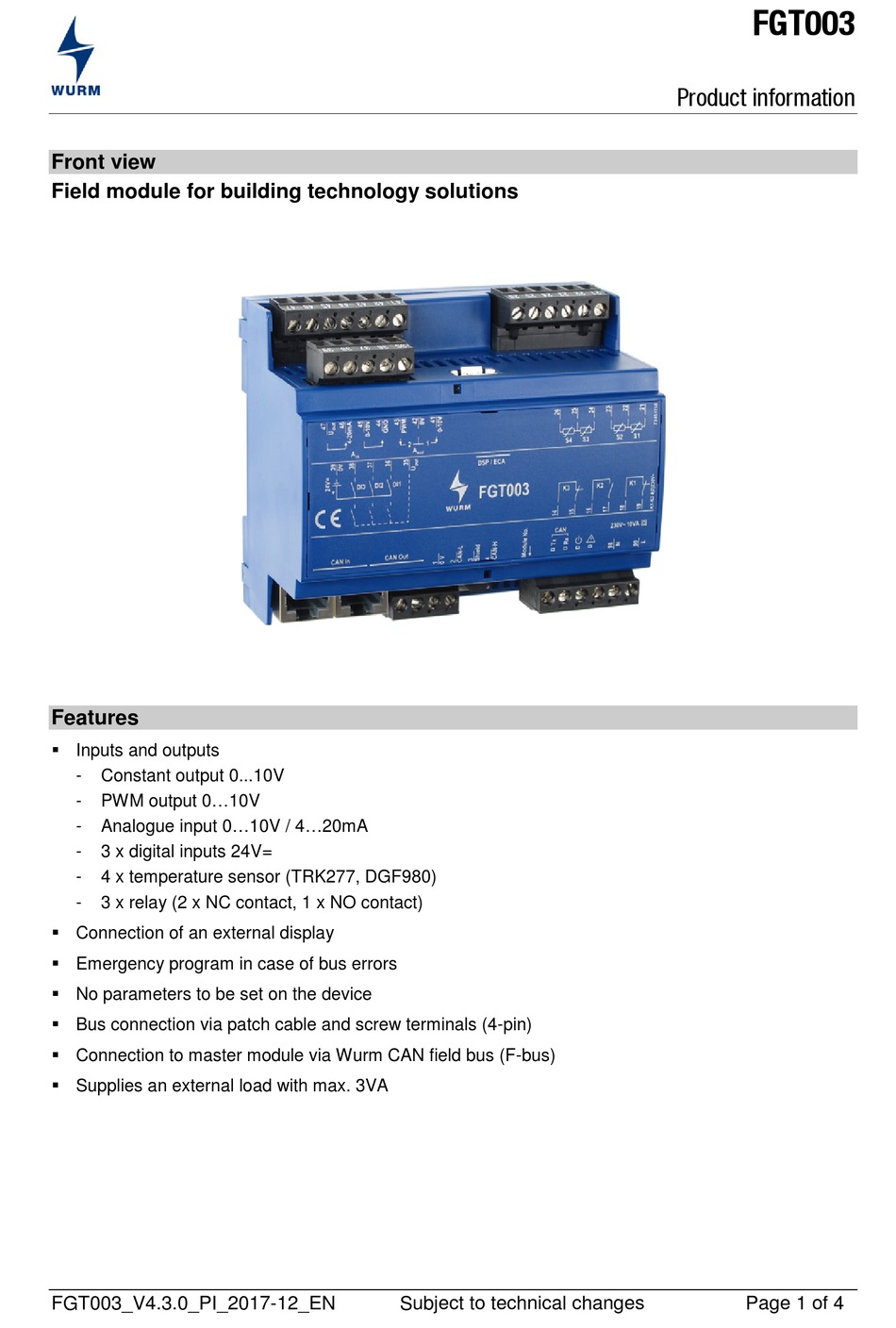

Front view

Field module for building technology solutions

Features

 Inputs and outputs

Constant output 0...10V

PWM output 0...10V

Analogue input 0...10V / 4...20mA

3 x digital inputs 24V=

4 x temperature sensor (TRK277, DGF980)

3 x relay (2 x NC contact, 1 x NO contact)

 Connection of an external display

 Emergency program in case of bus errors

 No parameters to be set on the device

 Bus connection via patch cable and screw terminals (4-pin)

 Connection to master module via Wurm CAN field bus (F-bus)

 Supplies an external load with max. 3VA

FGT003_V4.3.0_PI_2017-12_EN

Subject to technical changes

FGT003

Product information

Page 1 of 4
