Service Hotline： 18820958861
Email： services@portkeys.com
Website： www.portkeys.com
Company Address： 1406, 14th Floor, Block D, Building 3,
Cloud Park, Longgang District, Shenzhen, Guangdong, China
Factory Address： 2nd Floor, Building A, Jingjiang Industrial Park,
NO.101, Shangwei Road, Longhua District, Shenzhen,Guangdong, China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PortKeys LH7P
Summary of Contents for PortKeys LH7P
- Page 1 Service Hotline： 18820958861 Email： services@portkeys.com Website： www.portkeys.com Company Address： 1406, 14th Floor, Block D, Building 3, Cloud Park, Longgang District, Shenzhen, Guangdong, China Factory Address： 2nd Floor, Building A, Jingjiang Industrial Park, NO.101, Shangwei Road, Longhua District, Shenzhen,Guangdong, China...
-
Page 2: Table Of Contents
Contents Product Information Product Introduction Packing List Basic Parameters Signal Specifications Function Interface Function Interface Gesture Switching Function Introduction Custom Function Keys Settings Basic Operation Settings Interface Settings Interface Gesture Switching Image Settings Display Flip Settings System Settings 3D LUT Settings Volume Settings Version Settings Camera Control Interface... -
Page 3: Product Information

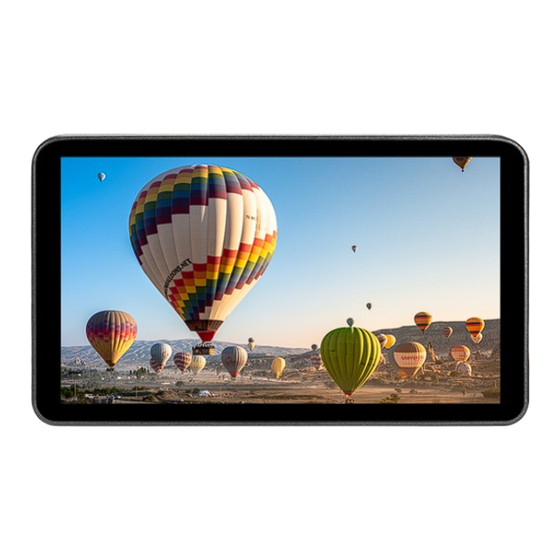

Product Information Product Introduction 7 ” 103.8mm 176.2mm Touch Screen Lock Power Switch 18.4MM Custom Function Keys Battery Lock Audio Headphone Output DC 7~24V 1/4" Threaded Insert USB-A HDMI IN HDMI OUT 1/4" Threaded Insert Operating temperature range: 0 ℃ ~ 40 ℃... -
Page 4: Packing List
Product Information Packing List Customer Feedback Card X1 LH7P Monitor X1 Screen Cleaning Wipe X1 Micro USB Flash Drive X1 HDMI to HDMI Cable X1 Safety Box X1... -
Page 5: Basic Parameters
Product Information Basic Parameters Screen Size 7" Color Gamut Rec.709 Resolution 1920x1080 1000nit Brightness Contrast Ratio 1000:1 Dimension 176.2x103.8x18.4mm Weight 245g Viewing Angle 85 /85 /85 /85 Material PC+ABS Input Voltage 7-24V USB-A Upgrade Firmware /Load LUT Support Battery Model SONY NP-F970/F960/F750/F550 Maximum Power Quiet... -
Page 6: Signal Specifications
Product Information Signal Specifications Supported input resolution and frame rate HDMI Signal 4096×2160p@24Hz 3840×2160p@23.97Hz , 24Hz , 25Hz , 29.97Hz , 30Hz 1920×1080p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz 1920×1080psf@23.97Hz , 24Hz , 25Hz , 29.97Hz , 30Hz 1920×1080i@50Hz , 59.94Hz , 60Hz 1280×720p@50Hz , 59.94Hz , 60Hz 720×576p@50Hz 720×576i@50Hz 720×480p@50Hz , 59.94Hz , 60Hz... -
Page 7: Function Interface
Function Interface Brightness Contrast Chroma Sharpness Tint [Function interface gesture switching] Swipe right on any interface to adjust to the function setting interface; After Off HDMI (the function setting interface) -
Page 8: Function Introduction
Function Interface After Off HDMI [Function Introduction] Software Features; Battery Level; HDMI Signal; Loading 3D LUT Before and After Data; 3D LUT ON/OFF; Screen Brightness (1-10); Quickly Enter the Software Function List; Quickly Enter the Software Debugging;... -
Page 9: Custom Function Keys Settings
Function Interface Peaking Zebra False Color Vertical Luma Extension Waveform Waveform Audio Luma 3D LUT Rectangular Image Image Meters Histogram Crop Capture Overlay HDR(HLG) Camera Check Guides Cross Hair Grids Record Field ( Picture 1 ) [Custom Function Keys Settings] Select the function icon to replace;... -
Page 10: Basic Operation
Function Interface [Basic Operation] Long press “ ” ， the function parameter setting shows at the bottom(Picture Original Style Sensitivity Peaking ( Picture 5 ) Swipe the icon “ ” to the right and enter the function menu, you could replace or delete functions(Picture After Off... -
Page 11: Settings Interface
Setting Interface After Off HDMI [Settings interface gesture switching] Swipe left on any interface to adjust to the system settings interface； Brightness Contrast Chroma Sharpness Tint ( the system settings interface) -
Page 12: Image Settings
Setting Interface Brightness Contrast Chroma Sharpness Tint 1.00X 6500K Anamorphic Backlight Color Temperature [Image Settings] 1. Click “ ” ； Parameter setting information； Parameter setting information(Next page )； Display the number of the page of Image parameter setting; Swipe left or right in the bottom information area to switch pages；... -
Page 13: Display Flip Settings
Setting Interface Display Flip Mode H Flip V Flip [Display Flip Settings] 1. Click “ ” ； Display flip setting information；... - Page 14 Setting Interface English OSD-Language System Reset Battery Voltage... Gesture Zooming Live Mode [System Setting] 1. Click “ ” ； System parameter setting information;...
- Page 15 Setting Interface Stored from USB USB Looks Reset LUT 3D LUT [3D LUT Setting] 1. Click “ ” ； 3D LUT setting information；...
- Page 16 Setting Interface Volume [Volume Setting] 1. Click “ ” ； Volume setting information；...
-
Page 17: Version Settings
Setting Interface LH7P-V1.07.13.B34 Run Time Version Information Update （ USB） [Version Setting] 1. Click “ ” ； View version information and upgrades；... -
Page 18: Camera Control Interface
Camera Control Interface After Off HDMI [Camera control interface gesture switching] Swipe down on any interface can be adjusted to the camera control settings interface； Wi-Fi BMPCC(BLE) (the camera control settings interface) -
Page 19: Camera Model Settings
Camera Control Interface Wi-Fi BMPCC(BLE) [Camera Model Setting] 1. Click “ ” ; Camera model options： Wi-Fi、 BMPCC4K(BLE); Currently selected “Wi-Fi”... -
Page 20: Bluetooth Connection
Camera Control Interface 4K DCI 4096×2160 Bmpcc My device Add new device Disconnect [Bluetooth Connection] 1. Select “ BMPCC4K(BLE)” ; 2. Click “ ” ; Select “ ” ， For bluetooth connection(Record of My device successful bluetooth connection); Select “ ”... -
Page 21: Function Usage
Camera Control Interface 4K DCI 4096×2160 Bmpcc FOCUS [Function Usage] 1. Click “ ” ; Focus; Record; Adjust the parameter on the progress bar;... -
Page 22: Warnings
Warnings Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
