Summary of Contents for PortKeys LH5P
- Page 1 Servlce Hotline： 18820958861 Email： services@portkeys.com website： www.portkeys.com Company Address： 1406 Cloud Park 3D Longgang District Shenzhen China Factory Address： No.2nd Floor Building A Jingjiang Industrial Park NO.101 Shangwei Road Longhua District Shenzhen Guangdong China...
-
Page 2: Table Of Contents

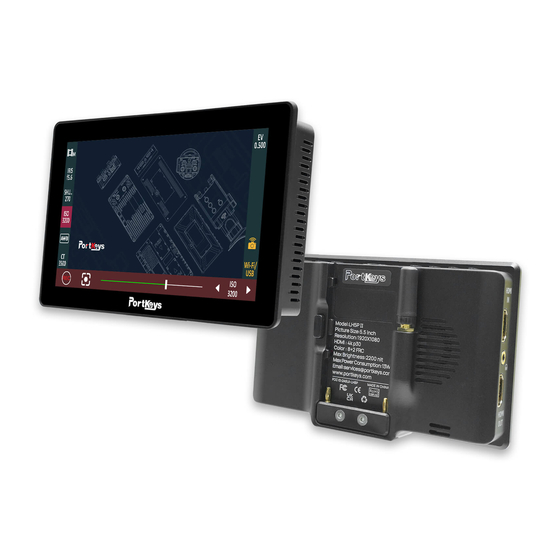

Contents Product Information Product Wireframe Product Accessories Product Parameters Product Signal Specifications Function Interface Function Interface Gesture Switching Function Setting Custom Function Settings Basic Operation Settings Interface Set Interface Gesture Switching Image Settings System Settings LUT Settings Version Settings Camera Control Interface Camera Control Interface Gesture Switching Camera Model Settings Bluetooth Connection... - Page 3 EXIT / Long press for 3 seconds to switch the state of touch control Power Switch Antenna HDMI Input Audio Model : LH5P Headphone Picture Size : 5.5 inch Resolution : 1920X1080 HDMI : 4K p30 Output Color : 8+2 FRC...
- Page 4 Product Information Standard Accessories LH5P Monitor X1 U Disk X1 Power Cord (Aviation Safety Box X1 Port - DC) X1 Warm Prompt Card X1 Short Antenna X1 LANC Control Cable X1 Elbow Short Antenna X1 TYPE-C Control Cable X1...
- Page 5 When Using NPF battery can output 5V1A USB-A： voltage to power other device 5pin Aviation 7~24V power supply or battery can be used to power LH5P Power Input： Support wired control the functions of REMOTE-A： Z CAM, Canon, Sony, Panasonic and BMD Support wired control Tilta Nucleus-N/M REMOTE-B：...
- Page 6 Product Information Signal Specifications Supported input resolution and frame rate HDMI Signal 4096×2160p@24Hz 3840×2160p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz 1920×1080p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz 1920×1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz 1920×1080i@50Hz,59.94Hz,60Hz 1280×720p@50Hz,59.94Hz,60Hz 720×576p&720×576i@50Hz 720×480p&720×480i@50Hz,59.94Hz,60Hz Supported output resolution and frame rate HDMI Signal 4096×2160p@24Hz 3840×2160p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz 1920×1080p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz 1920×1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz 1920×1080i@50Hz,59.94Hz,60Hz 1280×720p@50Hz,59.94Hz,60Hz 720×576p&720×576i@50Hz 720×480p&720×480i@50Hz,59.94Hz,60Hz...
- Page 7 Function Page Brightness Contrast Chroma Sharpness Tint [Function settings page switch] Swipe right on any page to adjust to the function setting page. HDMI (the function setting page)
-
Page 8: Function Setting
Function Page HDMI [Function Setting] Add function icon. HDMI signal. 3D LUT ON/OFF. Screen brightness (1-10). Fan strength (Low /Middle/High). Battery level. -
Page 9: Custom Function Settings
Function Page Check Guides Cross Hair Grids Peaking False Color Field Zebra UnderScan Luma Luma Audio Histogram Waveform Waveform Meters Zooming (Picture 1) [Custom Function Settings] 1. Click “ ” add shortcut functions to the left and right sides; If the function icons on the left and right have been added (Picture 2);can swipe down in the shortcut function title area to continue adding. -
Page 10: Basic Operation
Function Page [Basic operation] Long press “ ” ， the function parameter setting shows at the bottom(Picture Check Field ( Picture 5 ) Swipe the icon “ ” to the right and enter the function menu, you could replace or delete functions(Picture Check Field Check Field... - Page 11 Setting Page 关 HDMI [System settings page switch] Swipe left on any page to adjust to the system settings page. Brightness Contrast Chroma Sharpness Tint ( the system settings page)
-
Page 12: Image Settings
Setting Page 1.00X 6500K Anamorphic Backlight Color Temperature [Image Settings] 1. Click “ ” . Parameter setting information. Parameter setting information(Next page ). Display the number of the page of Image parameter setting. Swipe left and right in the bottom information area to switch pages. - Page 13 Setting Page English OSD-Language OSD-Transparancy System Reset Screen Color Cali.. [System Setting] 1. Click “ ” . System parameter setting information.
- Page 14 Setting Page Stored from USB USB Looks Reset LUT 3D LUT [LUT Setting] 1. Click “ ” . LUT setting information.
-
Page 15: Version Settings
Setting Page LH5P V1.05.26.C11.B17 Update（USB） Version Information [Version Setting] 1. Click “ ” . View version information and upgrades. - Page 16 Camera control Page HDMI [Camera control settings page switch] Swipe down on any page can be adjusted to the camera control settings page. 4K DCI 4096×2160 CxxxLong10toRec.. Wi-Fi / USB Z CAM E2(LANC) BMPCC(BLE) BMPCC(LANC) Canon(LANC) (the camera control settings page)
-
Page 17: Camera Model Settings
Camera control Page 4K DCI 4096×2160 CxxxLong10toRec.. Wi-Fi / USB Z CAM E2(LANC) BMPCC(BLE) BMPCC(LANC) Canon(LANC) [Camera Model Setting] 1. Click “ ” . Camera model options： Wi-Fi/USB、 Z CAM E2(LANC)、 BMPCC4K(BLE)、 BMPCC(LANC)、 Canon(LANC)、 Sony(MUTI)、 Sony(LANC)、 Panasonic （ Remote） . Currently selected “BMPCC4K(BLE)”... -
Page 18: Bluetooth Connection
Camera control Page 4K DCI 4096×2160 Bmpcc My device Add new device Disconnect [Bluetooth Connection] 1.Click “ ” . 2.Select “ ” ， Make bluetooth connection( Successfully My device connected bluetooth record). 3.Select “ ” ,turn on the BMPCC4K/6K Bluetooth function Add new device and record the passcode (picture 1),enter the passcode on the monitor(Picture 2 and 3)，... - Page 19 Camera control Page 4K DCI 4096×2160 Bmpcc FOCUS [FOCUS Setting] 1. Click “ ” . Adjust the parameter on the progress bar. Record.
- Page 20 Camera control Page [Wirelessly Connect Sony A7M iii to Portkey Monitor] 1.Turn the camera ON， select the "MENU" tab. 2.Go to the Network settings, select （Network 1） > 【Ctrl w/ Smartphone 】 (Picture Network 1 Toe!up!Tnsuqio!Gvod Tfoe!up!Dpnqvufs GUQ!Usbotgfs!Gvod Wjfx!po!UW Dusm!x0!Tnbsuqipof Bjsqmbof!Npef NFOV (Picture...
-
Page 21: Motor Control
Motor Page HDMI [Motor control settings page switch] Swipe up on any page can be adjusted the motor control settings page. NO： 1 NO： 2 NO： 3 (the motor control settings page) - Page 22 Motor Page NO： 1 NO： 2 NO： 3 [Motor Setting] 1. Click to select channel options “ ” . 2.Select the channel option to set the channel parameters. Record. Adjust the motor stroke.
