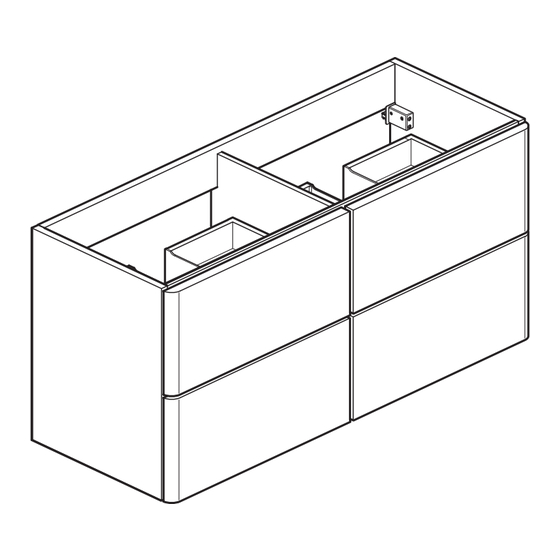

Installation Guide
Vanity Unit
CAM-F1200
This instruction booklet covers these models:
CAM-F1200
(All finish options)
CAM-F1200
Vado
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel 01934 744466.
fax 01934 744345
aftersales @ vado.com
www.vado.com
Keep for future reference
Version 1, 1-1-24
Advertisement
Related Manuals for VADO CAMEO CAM-F1200
Summary of Contents for VADO CAMEO CAM-F1200
- Page 1 Installation Guide Vanity Unit CAM-F1200 This instruction booklet covers these models: CAM-F1200 (All finish options) CAM-F1200 Vado Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466. fax 01934 744345 aftersales @ vado.com www.vado.com Keep for future reference Version 1, 1-1-24...
- Page 2 VADO reserves the right to make technical improvements and enhance the appearance of the products included in this instruction manual. Please read these instructions carefully before starting the installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation.
- Page 3 570mm 95mm 579mm Outline of unit 420mm Decide on the position and height of the unit. The recommended basin height is between 800 and 900mm from floor to top of basin. Mark the bracket fixing holes onto the wall. NOTE: The dimensions are for the maximum width over the brackets. Wall plugs Bracket 595mm...
- Page 4 Locking pin Latch Bracket Pin locks into side of drawer (Drawer not shown) Remove the drawers prior to fitting the unit on to the wall. Pull out a drawer so it’s With two people lift the unit over and onto the brackets, make sure that the that both latches are over the brackets before releasing the unit.
- Page 5 If required, the vanity can also be xed in the position shown below. 4 holes in top brace Apply a non-acidic silicone along the top Apply a bead of silicone along the back 4 holes also on bottom brace edge of the unit and carefully position the and sides of the countertop.
- Page 6 Apply silicone non-acidic to the side and front edges of the unit. Carefully position the Locator basin down onto the unit ensuring that it is centrally positioned and flush at the back. Place the drawer onto the botttom extended runners. Slide the drawer back until the locator is in the hole on the back of the drawer.
- Page 7 The coating on this product is finished to the highest standard. Due care needs to be CAM-HAN12L & CAM-HAN12R handles taken to ensure the appearance is retained. Line up the handle on the drawer Middle of unit We recommend cleaning all products with a soft damp cloth ONLY and advise strongly making sure the edges are flush with the against the use of all aggressive/corrosive cleaning products i.e.
- Page 8 In situations where like-for-like replacements are not possible, VADO will endeavour to provide the closest alternative. E&OE. NOTES: [1] Labour via our engineer network is only available in the UK. Attendance by a VADO engineer or sub-contract engineer will be under our standard terms and conditions. [2] Excludes any electrical components.
