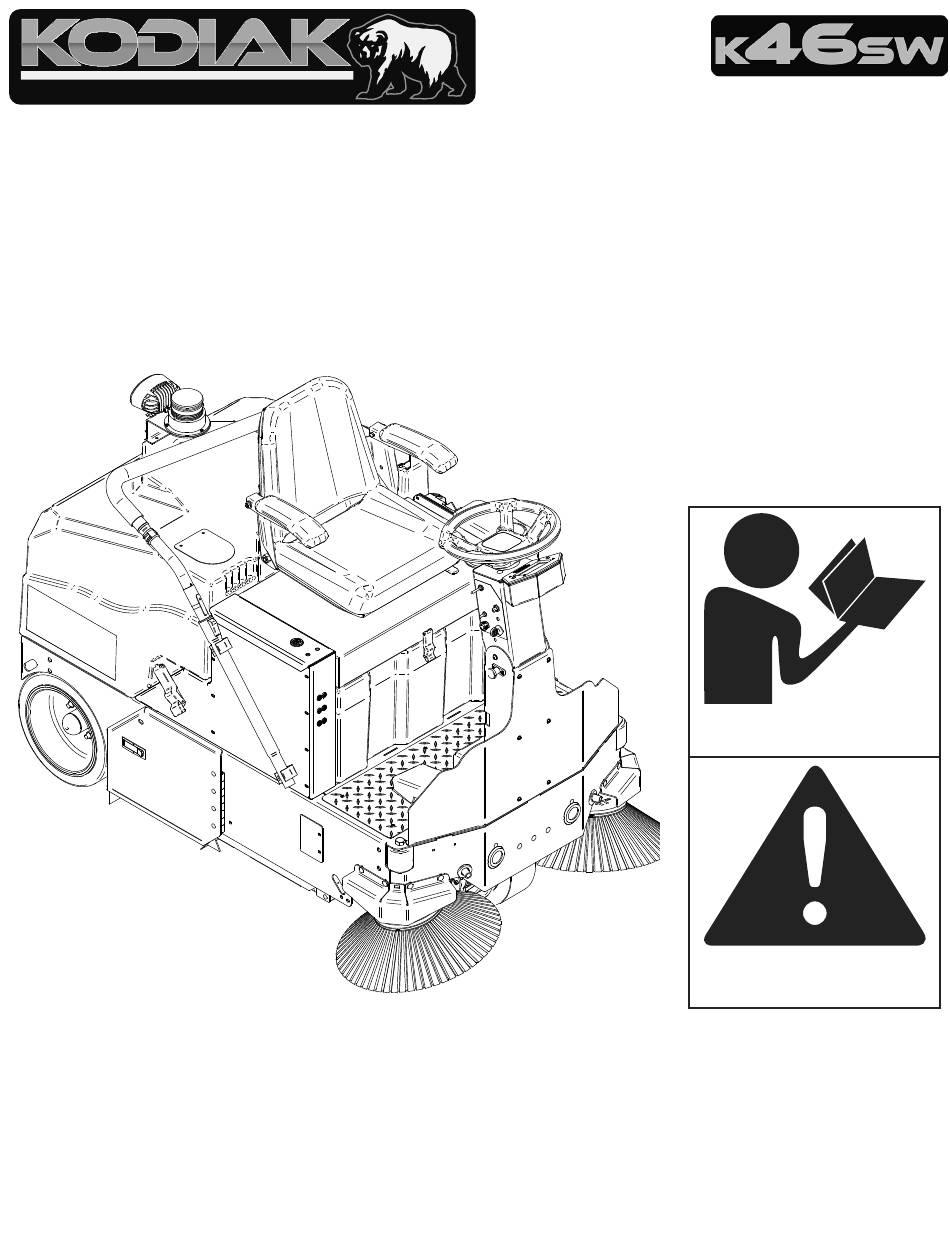

- Page 1 Imported From Wisconsin - USA Operator Manual (EN) Read the Operators Manual before using the machine. Read the Safety Messages before servicing machine. www.kodiakequip.com 1711 South Street Racine, WI 53404 (USA) 262-833-4025 | (855) 965-0011 V23.212 © 2023 RPS Corporation K-K46SW-OP-EN...
-
Page 2: Introduction
Intended use The Kodiak K46SW Ride On Sweeper is intended for industrial applications with hard floor surfaces such as concrete, VCT, tile and grout, stone, ect. This machine is not designed to clean carpets or sand wooden surfaces. Use only OEM pads/brushes and commercially available floor cleaning detergents. -
Page 3: Table Of Contents
..22 Battery Water Level ..23 ERROR CODES Status Light Guide ..24 KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 4: Safety
Tank or pick up. to explode. Serious personal injury or property damage could occur. Only charge the Batteries in this machine in a well ventilated area. KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 5: Safety Labels
Do not operate this machine if any parts have been controller. damaged or removed. CAUTION To avoid damage to the electronic control components of this machine, Do not store this machine outdoors. Do not pressure wash this machine. KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 6: Operation Machine Overview
5. Foot Pedal 6. Electrical Panel 7. Blower Motor 8. Rear Wheels 9. Front Wheel Drive + Parking Brake 10. Hood Latch 11. Charger 12. Main Broom 13. Hopper 14. Side Brooms KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 7: Central Command Overview
Mist to Side Broom (Optional) Military Battery Gauge / Hour Meter Combo Military Down Pressure Gauge Headlight indicator 10. E-stop 11. Headlights 12. Horn 13. Vac Wand (Optional) 14. Dual USB KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 8: Parking Brake
Do not operate this machine outdoors or on uneven surfaces. WARNING Understand the dynamic braking system before you operate the machine on ramps. Machine may coast. KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 9: Steering Controls
OPERATION Steering Controls EMERGENCY STOP KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 10: Headlights (Optional)
OPERATION Headlights (Optional) HEADLIGHTS ON HEADLIGHTS ON KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 11: Installing Main Broom
OPERATION Installing Main Broom 9/16th'' Rotate after 25 hrs KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 12: Battery Setup
If battery acid gets on your face or in your eyes, flush the area immediately with cold water and Batteries are a possible environmental hazard. Consult seek medical attention. your Battery supplier for safe disposal methods. KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 13: Charging
OPERATION Charging KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 14: Forward Drive
OPERATION Forward Drive 0 - 3.3mph (0 - 5.3 kph) KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 15: Reverse Drive
OPERATION Reverse Drive 0 - 1.6mph (0 - 2.6 kph) KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 16: Fill Solution Tank
OPERATION Fill Solution Tank See pg. 7 for touch screen controls ON (I) OFF (O) KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 17: Sweeping
OPERATION Sweeping See pg. 7 for touch screen controls KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 18: Filter Shaker
OPERATION Filter Shaker KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 19: Empty Hopper
OPERATION Empty Hopper KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 20: Filter Bypass
OPERATION Filter Bypass KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 21: Removing Baghouse Filter
OPERATION Removing Baghouse Filter Remove screws and metal strips KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 22: Battery Chargers
Please refer to OEM Charger Operating Instructions for more information. Onboard / AGM / International Chargers: AC Power: 80-270VAC / 50-60Hz DC Power OUT: 24VDC / 27A Please refer to OEM Charger Operating Instructions for more information. KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 23: Battery Water Level
MONTHLY MAINTENANCE (OR 100 HRS) Battery Water Level 24 Vdc PROBLEM PAIR PROBLEM ___________________________________________________ KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... -
Page 24: Error Codes
Make sure the controller connections are secure. 10 Flash An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections. KODIAK K46SW V23.212 Questions? Call 855-965-0011 Use OEM Parts... - Page 25 BLANK THIS PAGE WAS INTENTIONALLY LEFT BLANK...
