Teletek electronics TFT Quick Installation Manual

IRIS/SIMPO Repeater Panel, Model: TFT
Quick Installation Manual

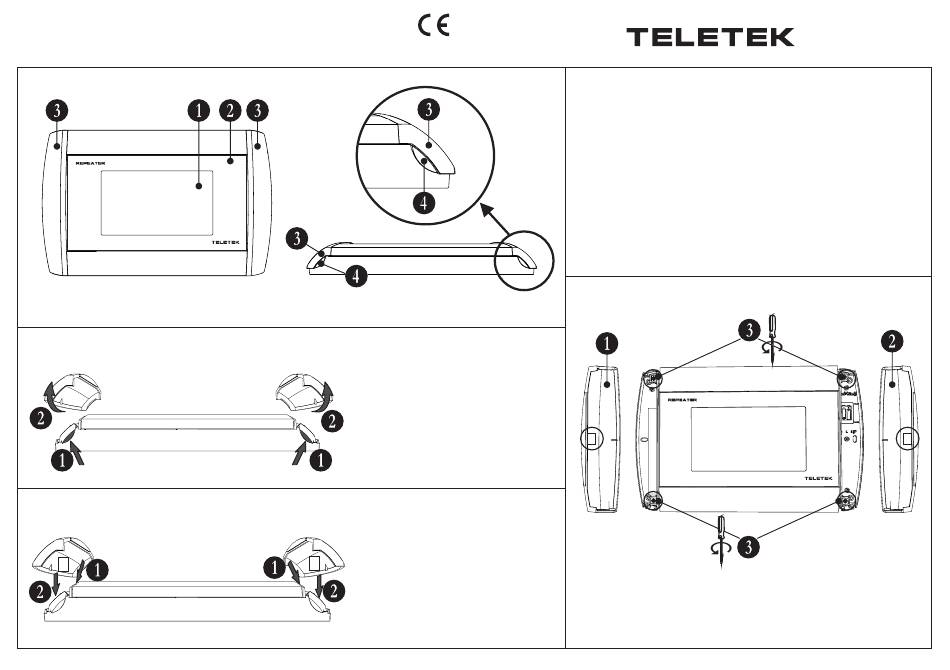

Enclosure Box
1 - TFT color screen; 2 - Front cover; 3 - Side covers; 4 - Clip
Opening
Closing
1
21
1293
DoP No: 138
1 - Press the clip;
2 - Pull up the side covers
1 - Mount the top of the side
cover to the box bottom;
2 - Press down the side
2 cover until a click is heard.
Note: Observe the position of
the side covers on the back -
1 is the left covers and 2 is the
right cover.
ATTENTION!
Operation with Repeater Panel, model TFT,
is supported for the following revisions:
IRIS Fire Alarm Panel
LCD PCB Hardware revision: 2.4 and higher
MAIN Board Firmware revision: 4.2 and higher
SIMPO Fire Alarm Panel
MAIN Board Firmware revision: 2.8 and higher
iRIS8 Fire Alarm Panel
MAIN Board Firmware revision: 1.0 and higher
Removing the front cover
1
1 - Left side cover. Mark "1" on the back.
2 - Right side cover. Mark "2" on the back.
3 - Undo the screws to remove the front cover.
Note: Be careful not to damage the TFT screen!
Teletek Electronics JSC
Address: 14A Srebarna Str,
1407 Sofia, Bulgaria
2
18021097, RevB, 07/2022
