Alphacool GPX-N Eiswolf Pro 2080Ti Manual

Advertisement

Quick Links

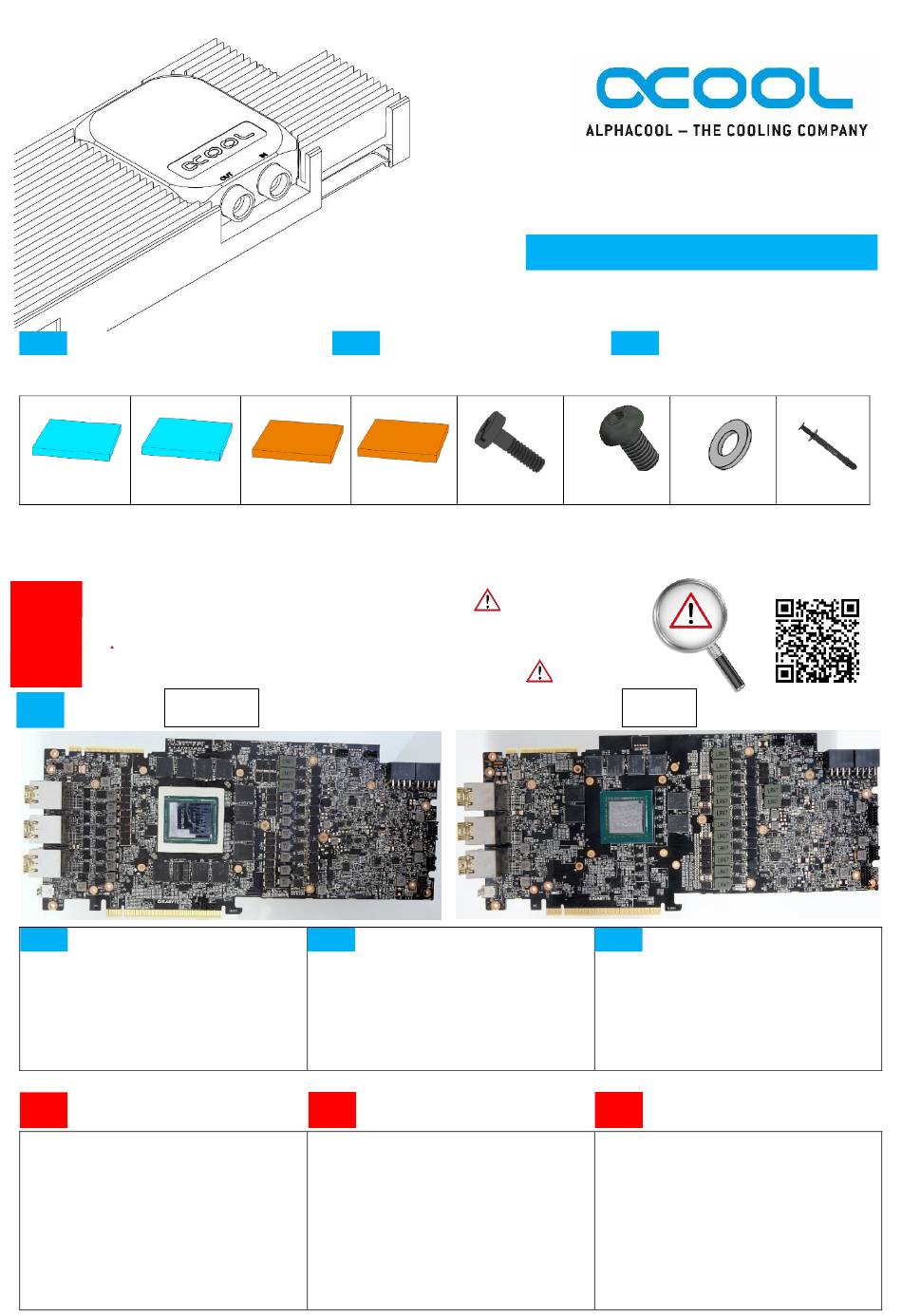

ACCESSORIES
EN
N
11x
6x
15 x 15 x 1mm
30 x 30 x 1mm
thermal pads
thermal pads
EN
Read the safety instructions before starting the installation
DE
Lesen Sie die Sicherheitshinweise, bevor Sie mit der Installation beginnen.
FR
Lisez les instructions de sécurité avant de commencer l'installation.
2080 Ti
1.
Put the hardware on an antistatic mat. Begin
EN
dismantling the original cooler. Depending
on the structure of the cooler, remove the screws at
the back of the card and carefully unhook the fan
connector first. If the original cooler uses thermal glue,
extreme care should be taken as you can easily damage
parts. Pick up all the items carefully. Next, clean the
hardware of thermal paste or pad residues with a
solvent (e.g. alcohol).
!
Before starting the cooler assembly, compare your card
with the picture above. The cooler is constructed
specifically for this layout. Occasionally, graphics card
manufacturers may revise the design of their card
slightly, causing the cooler not to fit on later models.
During assembly, please make sure taller parts have
enough space around them and that the cooler does
not damage your graphics card.
Alphacool International GmbH is not liable for
assembly errors occurring due to negligence,
such as selecting an incompatible cooler.
DE
2x
11x
x
15 x 15 x 2mm
30 x 30 x 2mm
thermal pads
thermal pads
Legen Sie die Hardware auf eine antistatische
DE
Unterlage. Beginnen Sie mit der Demontage
des Original-Kühlers. Je nach Aufbau des Kühlers sind
zuerst die Schrauben des Lüfters zu entfernen und die
Blenden zu lösen. Bei aufgeklebten Kühlern ist äußerste
Sorgfalt geboten. Es können leicht Bauteile abgerissen
werden. Heben Sie alle Einzelteile sorgfältig auf.
Reinigen Sie anschließend die Hardware von Resten der
Wärmeleitpaste oder Pads mit einem Lösemittel (z.B.
Spiritus).
!
Bevor Sie mit der Montage des Kühlers beginnen,
vergleichen Sie Ihre Platine mit dem vorliegenden Foto.
Der Kühler wurde speziell für dieses Layout
konstruiert. Es kommt vor, dass Grafikkartenhersteller
über Revisionen den Aufbau leicht abändern und damit
der Kühler auf spätere Modelle nicht mehr passt.
Achten Sie auch bei der Montage darauf, dass hohe
Bauteile frei liegen und der Kühler die Grafikkarte nicht
beschädigt.
Alphacool International GmbH haftet nicht bei
fahrlässigen Montagefehlern, wie die Wahl eines
inkompatiblen Kühlers.
GPX–N Eiswolf Pro 2080Ti / 2080 M11
ZUBEHÖR
9x
2x
M3x11
M3x6
screws
screws
.
FR
refroidisseur d'origine. Selon la configuration du
radiateur les vis du ventilateur et les caches doivent
être enlevés d'abord. S'il s'agit d'un refroidisseur collé il
faut travailler très doucement. Sinon des composants
peuvent s'arracher. Conservez tous les pièces
soigneusement. Ensuite, nettoyer le matériel de résidus
de la pâte thermique ou de pads avec un solvant (alcool
par ex.).
Avant de commencer l'installation merci de vérifier que
votre carte ressemble bien a celle sur l'image. Le
refroidisseur a été conçu spécialement pour cette
disposition des composants. Il est possible que le
fabricant change des détails dans la disposition de ses
composants lors d'une révision et que le bloc de
refroidissement ne soit plus compatible. Veillez lors de
l'installation au fait que les composants hauts ne
touchent pas le bloc de refroidissement et que le bloc
n'endommage pas la carte graphique.
Alphacool International GmbH n'est pas
responsable ni des erreurs d'installation ni du
choix d'un refroidisseur incompatible.
ACCESSOIRES
FR
1x
2x
M3
washers
2080
Posez le matériel sur un tapis antistatique.
Commencez par le démontage du
!
thermal
grease
