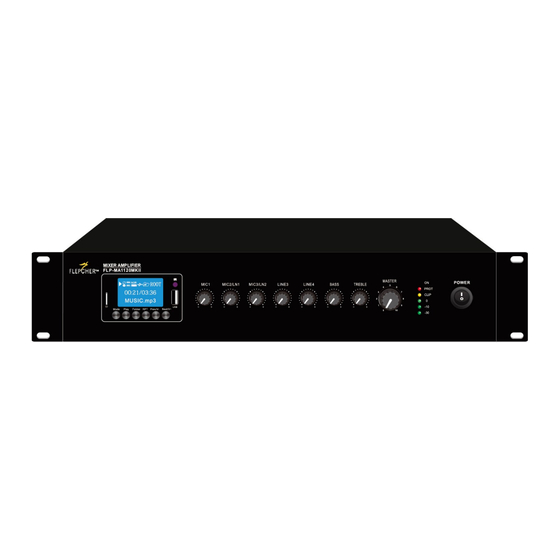

- Page 1 INSTALLATION AND OPERATION MANUAL FLP-MA1120MKII FLP-MA1240MKII Mixer Amplifiers with Mp3/FM/Bluetooth Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
-
Page 2: Safety Warnings
SAFETY WARNINGS! Read and keep these instructions. Heed all warnings and follow all instructions. Do not use this apparatus near water. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. - Page 3 INTRODUCTIONS Description The Mixer Amplifier with MP3, FM tuner, blue tooth, its rated power output from 120W and 240W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with three audio sources, pre amplifier and mixer power amplifier into one unit, which is economy but of high reliable performance.
-
Page 4: Front Panel
FRONT PANEL Mp3/FM/Blue tooth media player module. Treble Mic1 Attenuator. Master Volume Control Mic/Line Input 2 Attenuator. 10. Power on indicator Mic/Line Input 3 Attenuator. 11. Protection indicator in red Line Input 3 Attenuator. 12. Clip indicator in yellow Line Input 4Attenuator. 13. -
Page 5: Speaker Terminals
AMPLIFIER OPERATION GUIDANCE 100V Line System For 100V line systems, connect the amplifier to the first speaker in the system using double-insulated speaker wire which has adequate current rating to handle the total output of the amplifier. Connect the “100V” output terminal to the positive (+) connection of the speaker and “COM” output to the negative (-) connection of the speaker. -
Page 6: Operation Steps
Operation Steps When all connections to the amplifier are made, turn all rotary controls down and switch on the power and a power “ON” LED will illuminate. Turn BASS and TREBLE controls to the 12 o’clock position (pointing straight up) and turn MASTER rotary control up part way for testing. -
Page 7: Usb/Sd Playback
Use the Previous/Next buttons to select an appropriate channel memory. Press PLAY/PAUSE again to confirm and store the station into the selected channel memory. Auto search can be stopped at any time by pressing the Forward/Reverse seek buttons. SPECIFICATION FLP-MA1120MKII FLP-MA1240MKII Model Description... -
Page 8: Troubleshooting
TROUBLESHOOTING Ensure IEC lead is in good condition and connected properly If 12Vdc power input is being used, check battery is charged No power LED on control panel Check mains inlet fuse Ensure POWER switch is on Check input signals and condition of input connection leads Power LED is on but no other LEDs and no output Check MASTER, MIC, LINE IN or MEDIA controls are turned up...
