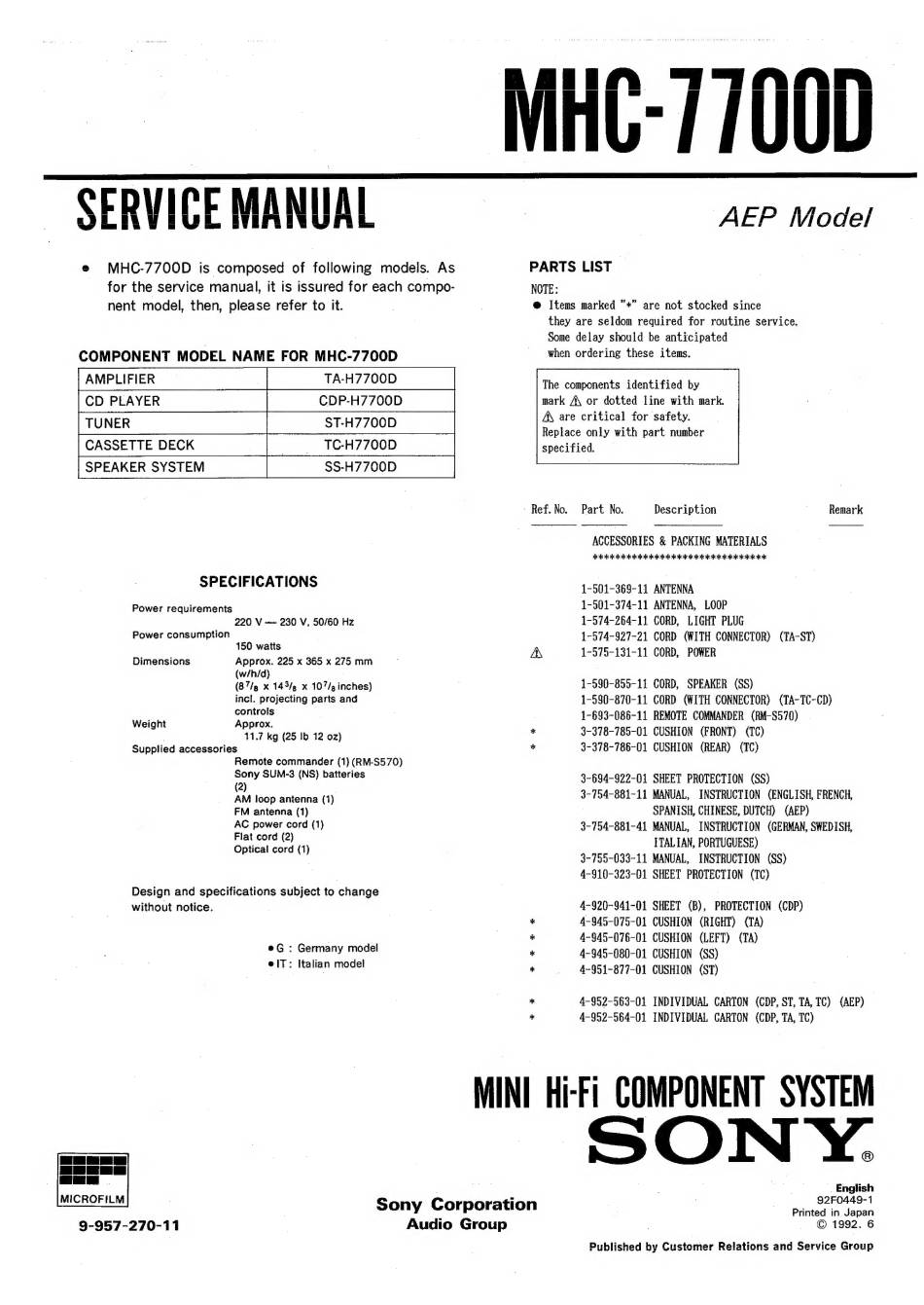

SERVICE MANUAL
BALIN
e
MHC-7700D
is composed
of following models. As
for the service manual, it is issured for each compo-
nent model, then, please refer to it.
COMPONENT
MODEL NAME FOR MHC-7700D
AMPLIFIER
CD PLAYER
TUNER
CASSETTE DECK
SPEAKER SYSTEM
SPECIFICATIONS
Power
requirements
220 V — 230 V, 50/60 Hz
Power consumption
150 watts
Approx. 225 x 365 x 275 mm
(w/h/d)
(87/g x 143/g x 107/g inches)
incl. projecting parts and
controls
Approx.
11.7 kg (25 Ib 12 oz)
Supplied accessories
Remote commander (1) (RM-S570)
Sony SUM-3 (NS) batteries
(2)
AM loop antenna (1)
FM antenna (1)
AC power cord (1)
Flat cord (2)
Optical cord (1)
Dimensions
Weight
Design and specifications subject to change
without notice.
eG:
Germany model
e@lT: Italian model
MICROFILM
9-957-270-11
77000
AEP
Mode/
PARTS LIST
NOTE:
@ Items marked "*" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
The components identified by
mark A\ or dotted Line with mark.
A\ are critical for safety.
Replace only with part number
specified.
Ref. No.
Part No.
Description
Remark
ACCESSORIES & PACKING MATERIALS
JERS OS OSD OI OS IOI IO ISOS OU
iofoto
1-501-369-11 ANTENNA
1-501-374-11 ANTENNA, LOOP
1-574-264-11 CORD, LIGHT PLUG
1-574-927-21 CORD (WITH CONNECTOR)
(TA-ST)
A
1-575-131-11 CORD, POWER
1-590-855-11 CORD, SPEAKER (SS)
1-590-870-11 CORD (WITH CONNECTOR)
(TA-TC-CD)
1-§93-086-11 REMOTE COMMANDER (RM-S570)
*
3-378-785-01 CUSHION (FRONT)
(TC)
*
3-378-786-01 CUSHION (REAR) (TC)
3-694-922-01 SHEET PROTECTION (SS)
3-754-881-11 MANUAL,
INSTRUCTION (ENGLISH, FRENCH,
SPANISH, CHINESE, DUTCH) (AEP)
3-754-881-41 MANUAL,
INSTRUCTION (GERMAN, SWEDISH,
ITALIAN, PORTUGUESE)
3-755-033-11 MANUAL,
INSTRUCTION (SS)
4-910-323-01 SHEET PROTECTION (TC)
4-920-941-01 SHEET (B), PROTECTION (CDP)
4-$45-075-01 CUSHION (RIGHT) (TA)
4-945-076-01 CUSHION (LEFT) (TA)
4-945-080-01 CUSHION (SS)
4-951-877-01 CUSHION (ST)
ve
F He &
4-952-563-01 INDIVIDUAL CARTON (CDP, ST, TA, TC) (AEP)
*
4-952-564-01 INDIVIDUAL CARTON (CDP, TA, TC)
MINI Hi-Fi COMPONENT SYSTEM
Sony Corporation
Audio
Group
English
92F0449-1
Printed in Japan
© 1992.
6
Published by Customer Relations and Service Group
