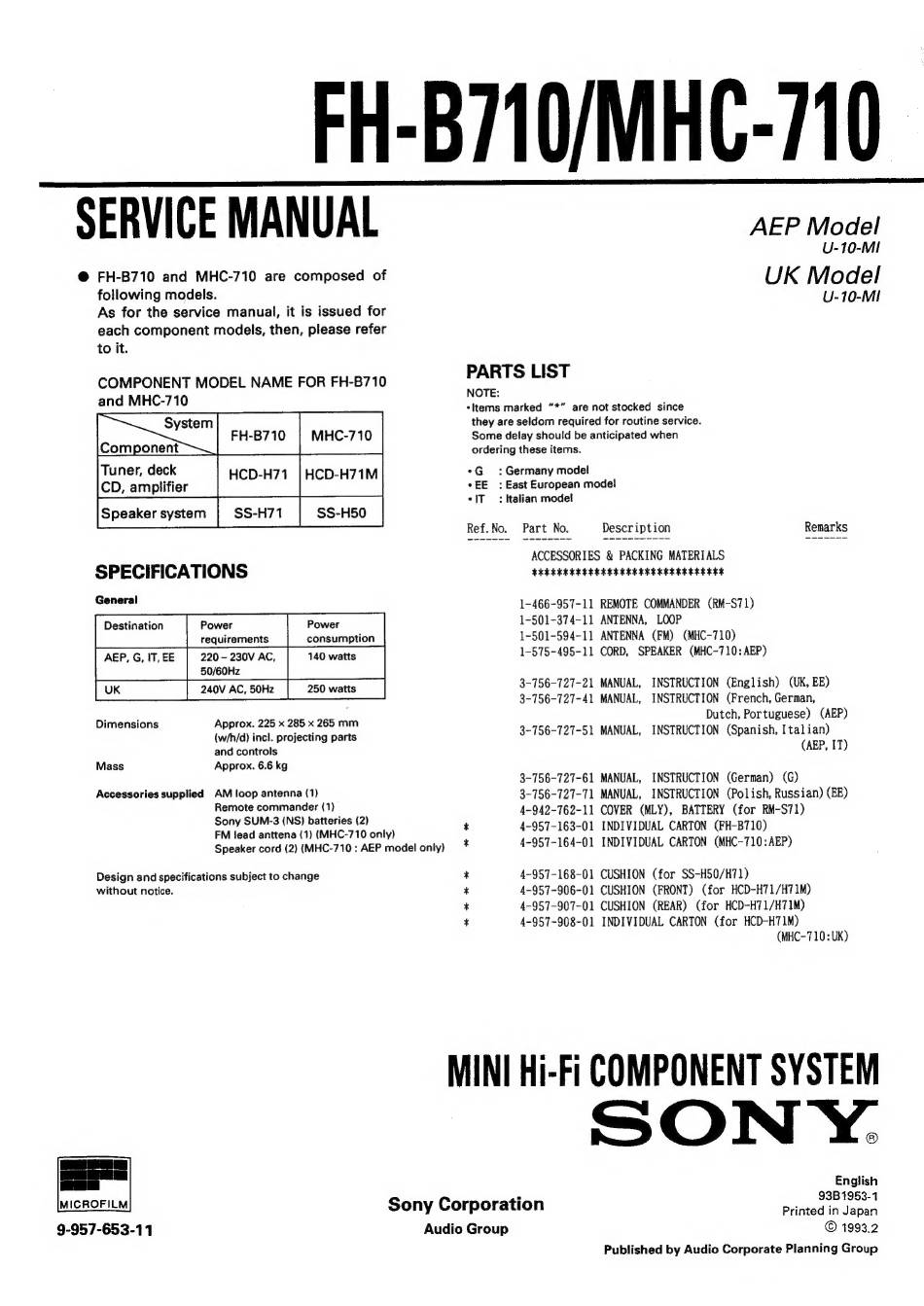

Sony FH-B710 Service Manual

FH-B710/MHC-710
SERVICE MANUAL
@ FH-B710 and MHC-710 are composed of
following models.
As for the service manual, it is issued for
each component models, then, please refer
to it.
COMPONENT MODEL NAME FOR FH-B710
and MHC-710
aoe FH-B710 | MHC-710
Tuner, deck HCD-H71 | HCD-H71M
CD, amplifier
Speaker system SS-H71 | ss-Hs0_|
SPECIFICATIONS
General
Destination Power Power
requirements consumption
AEP, G, IT, EE 220 - 230V AC, 140 watts
50/60Hz
Dimensions Approx. 225 x 285 x 265 mm
(w/h/d) incl. projecting parts
and controls
Mass Approx. 6.6 kg
Accessories supplied AM loop antenna (1)
Remote commander (1)
Sony SUM-3 (NS) batteries (2)
FM lead anttena (1) (MHC-710 only)
Speaker cord (2) (MHC-710 : AEP model only)
Design and specifications subject to change
without notice.
MICROFILM
9-957-653-11
AEP Model
U-10-MI
UK Model
U-10-MI
PARTS LIST
NOTE:
*ltems marked "*" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
*G : Germany model
*EE : East European model
*{IT : Italian modet
Ref.No. Part No. Description Remarks
ACCESSORIES & PACKING MATERIALS
EKE KARE RE RE AEE EER ARE EERE REE E EE
1-466-957-11 REMOTE COMMANDER (RM-S71)
1-501-374-11 ANTENNA, LOOP
1-501-594-11 ANTENNA (FM) (MHC-710)
1-575-495-11 CORD, SPEAKER (MHC~710:AEP)
3-756-727-21 MANUAL, INSTRUCTION (English) (UK, EE)
3-756-727-41 MANUAL, INSTRUCTION (French, German,
Dutch, Portuguese) (AEP)
3-756-727-51 MANUAL, INSTRUCTION (Spanish, I tal ian)
(AEP, IT)
3-756-727-61 MANUAL, INSTRUCTION (German) (G)
3-756-727-71 MANUAL, INSTRUCTION (Polish, Russian) (EE)
4-942-762-11 COVER (MLY), BATTERY (for RM-S71)
4-957-163-01 INDIVIDUAL CARTON (FH-B710)
4-957-164-01 INDIVIDUAL CARTON (MHC-710:AEP)
4~957-168-01 CUSHION (for SS-H50/H71)
4-957-906-01 CUSHION (FRONT) (for HCD-H71/H71M)
4-957-907-01 CUSHION (REAR) (for HCD-H71/H71M)
4-957-908-01 INDIVIDUAL CARTON (for HCD-H71M)
(MHC-710: UK)
"ee HM HM
MINI Hi-Fi COMPONENT SYSTEM
SONY.
English
: 93B1953-1
Sony Corporation Printed in Japan
Audio Group © 1993.2
Published by Audio Corporate Planning Group
