Mounting on DIN Rail

Prerequisite: The EC-BOS is securely mounted on a 35mm DIN rail, with adequate room left to mount the module.

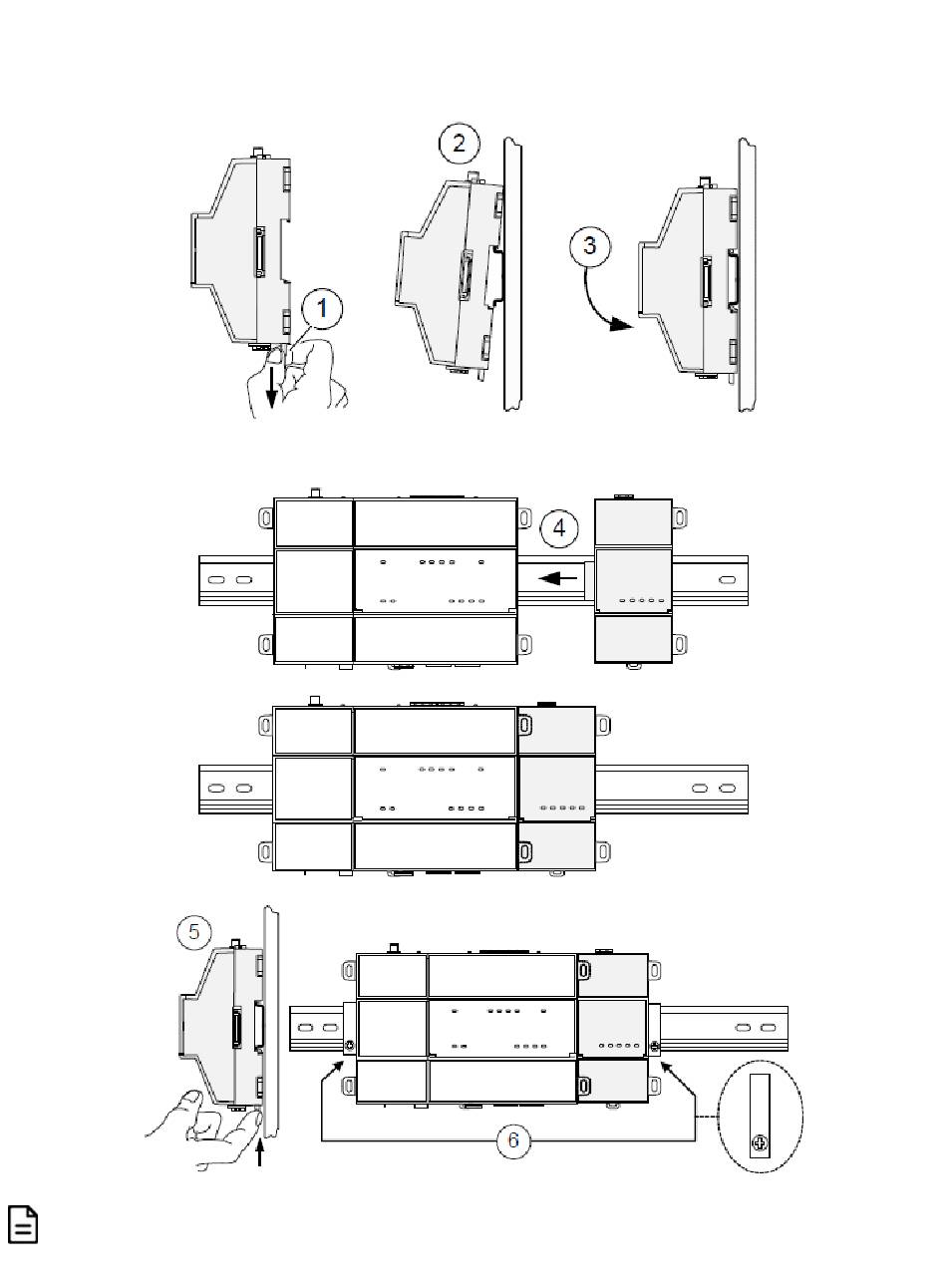

1. Pull the option module's locking clip down.
2. Tilt the module to hook over the DIN rail.
3. Push down and in on the unit, fastening to the rail.
4. Slide the module firmly into the EC-BOS's connector (or existing option module) to seat. Repeat for other modules as needed (4 maximum).
5. Push up the locking clip on all modules.
6. Carefully secure both ends of the final assembly with DIN rail end-clips provided by the DIN rail vendor.
To remove a unit from the DIN rail, pull down its locking clip. Slide the unit away from other devices, then swing the
bottom out and lift away from the rail.
