I n s t a l l a t i o n G u i d e
Dual RS232 Option Module

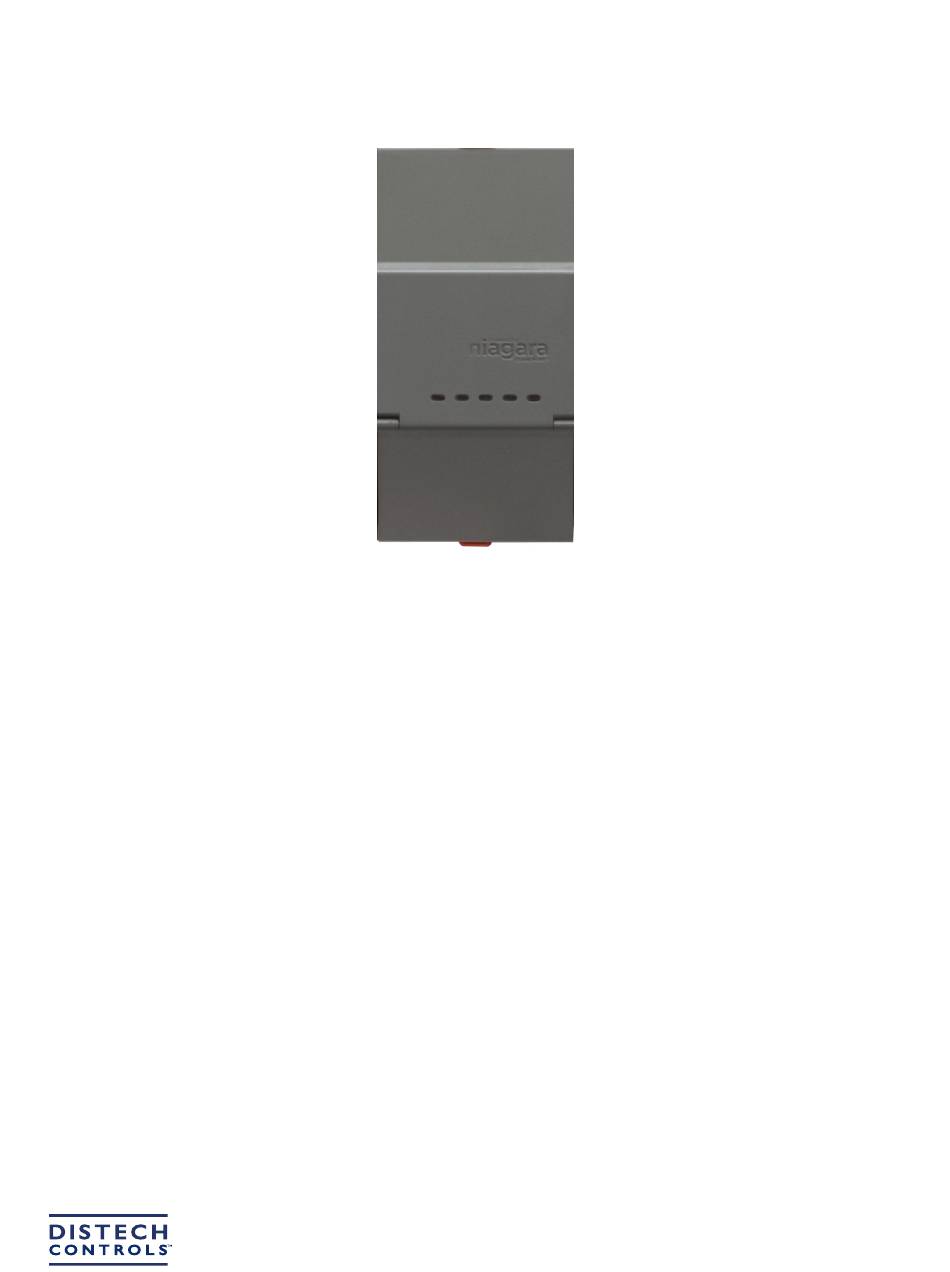

Figure 1:
RS-232 Option module
Product Description
The RS232 is a single port, electrically isolated adapter with DB9 male connector for the EC-BOS-8 and EC-BOS-9. An onboard UART supports baud
rates up to 115200. LEDs verify power from the controller and indicate RS232 message traffic.
Module Combinations
A maximum of four RS232 modules are supported. The controller supports a maximum total of four option modules across all option types. If two Dual
RS485 modules are used, only one additional non-RS485 module may be added for a maximum total of three modules.
COM Port Assignments
The EC-BOS has two onboard RS485 ports that always operate as COM1 and COM2. Installed serial option modules continue COM port numbering
based on proximity to the controller, where the option module closest to the controller base operates as the next available serial COM port(s). For exam-
ple, if attached directly to the controller, this RS232 option module operates as COM3.
For related details, see
"COM Port Usage
[pg. 4]," page 3.
Related topics such as the mounting and wiring of the EC-BOS or other option modules, installation of EC-Net™ 4 software, and usage of the various
RS-485-based drivers are in other documents. See
"Related Documentation
[pg. 5]," page 4.
Included in this Package
Included in this package:
£
One RS232 option module
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Distech Controls RS232
Summary of Contents for Distech Controls RS232
- Page 1 Module Combinations A maximum of four RS232 modules are supported. The controller supports a maximum total of four option modules across all option types. If two Dual RS485 modules are used, only one additional non-RS485 module may be added for a maximum total of three modules.
-
Page 2: Materials And Tools Required
RS-232 Option module This document covers the mounting and wiring of the RS232 option module for an EC-BOS. RS232 port with standard DB9 male (plug) connector. Operates as COMn ( next available ). For example, COM3 Precautions The following are warnings relating to the installation of the EC-BOS option module. -
Page 3: Mounting On Din Rail
Mounting on DIN Rail Prerequisite: The EC-BOS is securely mounted on a 35mm DIN rail, with adequate room left to mount the module. 1. Pull the option module’s locking clip down. 2. Tilt the module to hook over the DIN rail. 3. - Page 4 COM Port Usage The RS232 option adds one COM port on the installed EC-BOS. The EC-BOS has two integral RS485 ports. In an EC-Net 4 station running on the EC- BOS, these two ports always operate as COM1 and COM2.
-
Page 5: Related Documentation
©, Distech Controls Inc., 2015 - 2024. All rights reserved. Specifications subject to change without notice. Distech Controls, the Distech Controls logo, Innovative Solutions for Greener Buildings, EC-Net, ECO-Vue, Allure, and Open-To-Wireless are trademarks of Distech Controls Inc.; LonWorks, LON, and LNS are registered trademarks of Echelon Corporation;...
