Eltako matter EUD62NPN-IPM/110-240V Manual

GB
30 062 007 - 1
Universal dimming actuator IP
EUD62NPN-IPM/110-240V
Only skilled electricians may install this
electrical equipment otherwise there is
the risk of fi re or electric shock!
Temperature at mounting location:
-20°C up to +50°C.
Storage temperature: -25°C up to +70°C.
Relative humidity:
annual average value <75%.
ELTAKO Connect App download:
https://eltako.com/redirect/eltako-connect
Universal dimming actuator IP via Wi-Fi.
Matter-certifi ed, REST-API. With power
MOSFET. Dimmable 230 V LED lamps in
'phase cut-off' mode up to 300 W or in
'phase control' mode up to 100 W depending
on ventilation conditions. 230 V incandescent
lamps and halogen lamps up to 300 W
depending on ventilation conditions. No
minimum load. Only 0.7 watt standby loss.
For installation. 49 x 51 mm wide, 25 mm deep.
The terminals are plug-in terminals for
conductor cross-sections of 0.2 mm
2
2.5 mm .
Zero passage switching with soft ON and
soft OFF to protect lamps.
Supply voltage, switching voltage and control
voltage local 110-240 V.
The brightness level is stored on switch-off
(memory).
If supply voltage fails, the device is switched
off in defi ned mode.
Automatic electronic overload protection and
overtemperature switch-off.
With control input for a mains voltage control
button that may be installed in front of it.
Glow lamp current is not permitted.
This actuator is Matter certifi ed and can there-
fore be taught-in into different ecosystems
and operated in parallel.

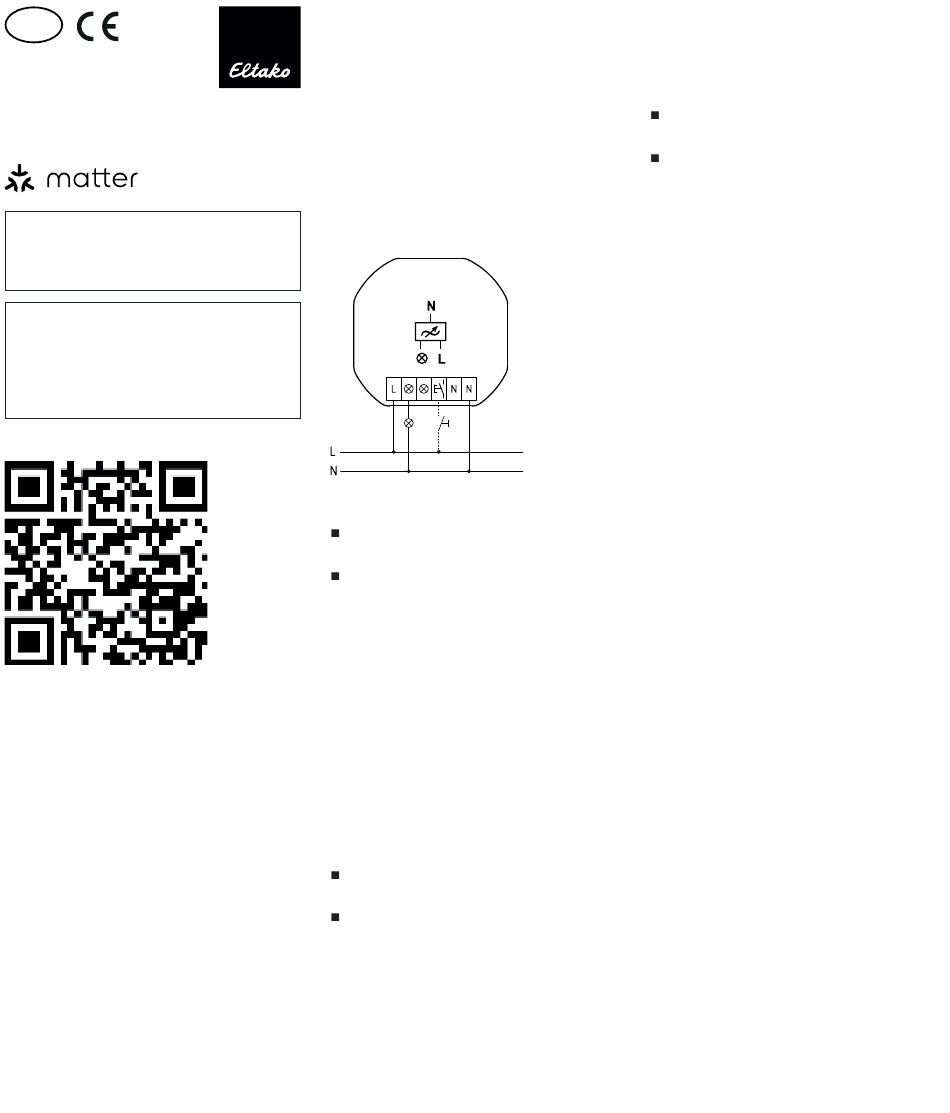

Typical connection
First setup with Apple Home:
Only 2.4 GHz Wi-Fi frequency bands are
supported.
Recommended: Commissioning close to
the main router.
1. Apply mains voltage and wait for the signal
tone.
2. Wait 15 seconds until the device has started.
3. Open the Apple Home app.
4. In the upper right corner press the '+' symbol
and select ' A dd device'.
5. Scan the Matter QR code. It can be found
on the back of the device and on the QR
code card in the packaging.
6. The Apple Home app will guide you through
the remaining steps.
First set up with Google Home:
Only 2.4 GHz Wi-Fi frequency bands are
supported.
Recommended: Commissioning close to
the main router.
2
to
1. Apply mains voltage and wait for the signal
tone.
2. Wait 15 seconds until the device has started.
3. Download and open the Google Home app.
4. Click on 'Devices' at the bottom of the
screen.
5. Press '+ Add' in the bottom right corner.
6. Now click on 'New device'.
7. The Apple Home app will guide you through
the remaining steps.
First setup with Amazon Alexa:
Only 2.4 GHz Wi-Fi frequency bands are
supported.
Recommended: Commissioning close to
the main router.
1. Apply mains voltage and wait for the signal
tone.
2. Wait 15 seconds until the device has started.
3. Download and open the Amazon Alexa app.
4. Click on 'Devices' at the bottom of the
screen.
5. In the bottom right corner press the '+'
symbol and select ' A dd Device.
6. Click on your automatically recognised
ELTAKO device.
7. The Amazon Alexa app will guide you
through the remaining steps.
Important!
If an update is available and the device is idle,
the installation will occur immediately, fol-
lowed by a device restart.
Factory reset:
3 short and 3 long beeps will beep to confi rm
the reset:
Option 1:
Via the ELTAKO Connect app.
Option 2:
1. Apply supply voltage
(time window of 5 minutes begins)
2. Connected switch/button: press 8x briefl y
(< 1 sec.) and 1x long (> 1.5 sec. and < 5 sec.).
A signal tone sounds for the last two short
closing actions. The reset confi rmation
beeps are delayed by 15 seconds with this
option.
Outside of the time window, the device is
simply restarted!
Option 3:
1. The device is disconnected from the supply
voltage.
2. Apply supply voltage, wait for the signal
tone and disconnect the supply voltage
within 5 seconds.
3. Repeat step 2 a total of 5 times.
4. The sixth time the supply voltage is
switched on, the successful factory reset
is confi rmed by 3 short and 3 long beeps.
