Safety Precautions
IMPORTANT:
READ CAREFULLY BEFORE INSTALLING THE DEVICE. RETAIN FOR FUTURE REFERENCE.
GENERAL:
•
Upon receipt of the device, thoroughly inspect for any freight damage which should be brought to the attention of the delivery
carrier.
•
Turn off electrical power at fuse or circuit breaker box before wiring fixture.
•
Turn off the power when you perform any maintenance.
•
Verify that supply voltage is correct by comparing it with the device label information.
•
All wiring connections should be capped with UL approved wire connectors.
•
Account for small parts and destroy packing material, as these may be hazardous to children.
•
Risk of burn. Disconnect power and allow device to cool before handling it.
Trouble Shooting Checklist
–
Check your power source.
–
Check electrical connections.
–
Refer to commissioing guide and FAQ document.
Installation Instructions
1.
Use an Octagonal Junction Box to mount the sensor to the ceiling (make a cut to the ceiling tile to mount the senor onto the
junction box).
2.
Pull the high voltage wires into the J-Box through the conduit knockout.
3.
Connect the high voltage wires to the appropriate terminals on the sensor.
4.
Loosen the appliance mounting screws attached to the J-Box.
5.
Align the sensor in the J-Box so that the mounting screws on the box match the key holes on the sensor's rear housing.
6.
Push the sensor up into the J-Box and twist it so that the mounting screws are seated in the keyhole slots.
7.
Tighten the two screws to secure the sensor to the J-Box.
8.
Snap the front cover onto the sensor.
9.
Please refer to the commissining guide below for programming.

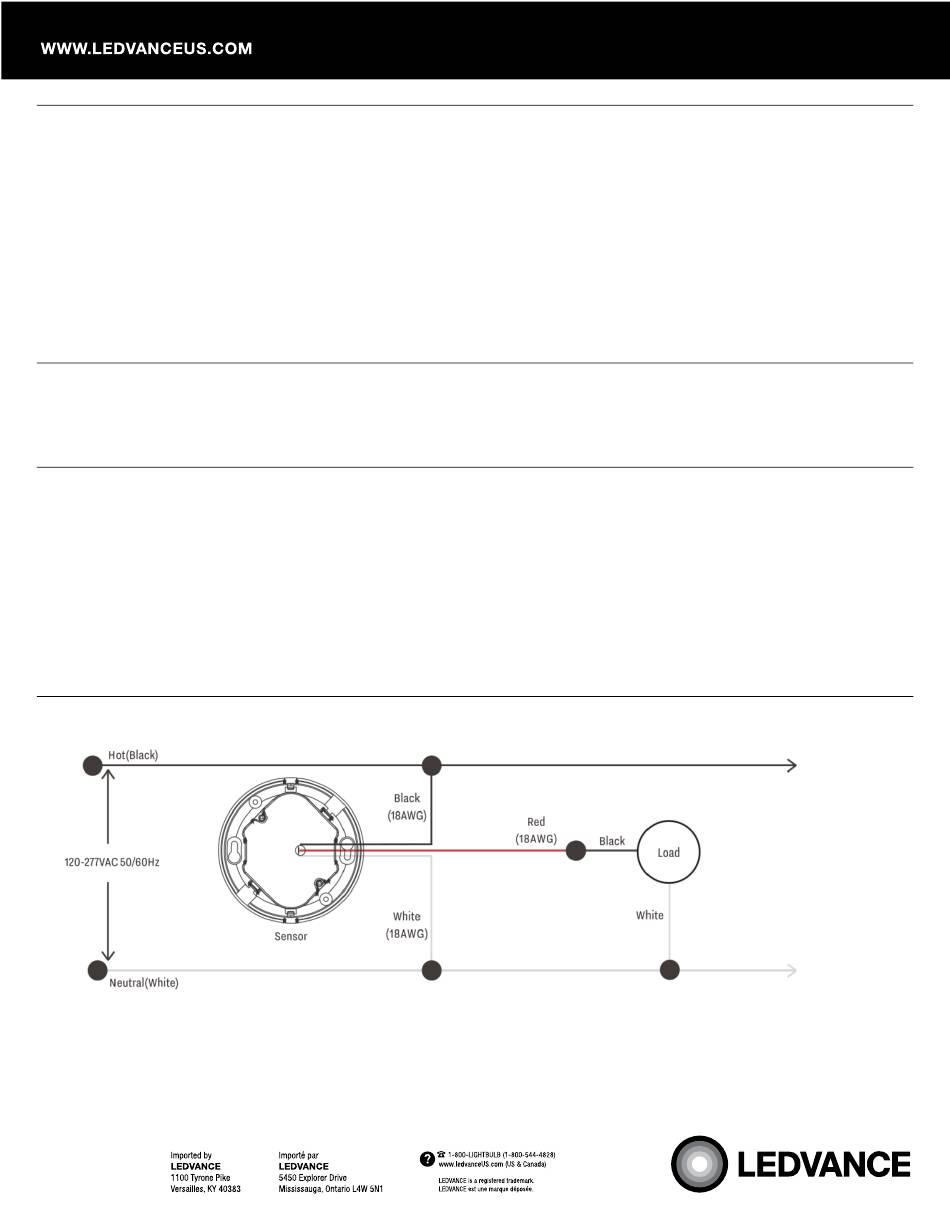

General Wiring Diagram
4134402
