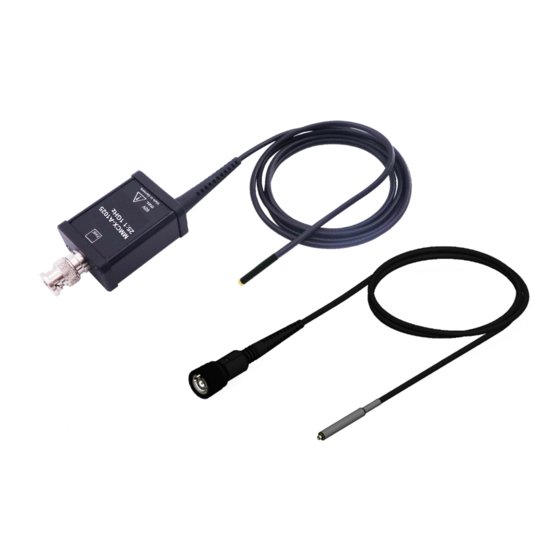

- Page 1 Allice Messtechnik GmbH DE | MMCX Probe Series with Universal BNC Interface Up to 1 GHz, <4pF ±42V , 60V DC Preliminary Instruction Manual...
-
Page 2: Manufacturer
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Copyright © 2023 PMK - All rights reserved. Manufacturer PMK Mess- und Kommunikationstechnik GmbH Königsteiner Str. 98 65812 Bad Soden, Germany Tel: +49 (0) 6196 999 5000 Internet: www.pmk.de E-Mail: sales@pmk.de... -
Page 3: Table Of Contents
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Table of Contents Manufacturer ................................. 2 Warranty ..................................2 Declaration of Conformity ............................. 2 WEEE/ RoHS Directives ..............................2 IEC Pollution Degrees..............................4 IEC Safety Symbols ................................. 4 Safety and Handling Information ..........................5 About MMCX Probes .............................. -
Page 4: Iec Pollution Degrees
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual IEC Pollution Degrees Definitions and Examples: Overview of measurement categories according to IEC 61010-01 O = No Measurement Category (Other circuits that are not directly connected to mains) Pollution Degree 1 No POLLUTION or only dry, nonconductive POLLUTION. -
Page 5: Safety And Handling Information
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Safety and Handling Information The overall safety of any measurement setup incorporating this probe is the responsibility of the user. Prevent personal injury, fire and product damage. To avoid personal injury and to prevent fire or damage to this product or products con- nected to it, review and comply with the following safety precautions. -
Page 6: About Mmcx Probes
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual About MMCX Probes Over the last years MMCX has developed as the standard connectivity solution for repeatable measurements with highest signal fidelity. Where traditional passive probes have long ground leads meaning a high inductance causing a ground loop, the compact MMCX design overcomes these traditional obstacles. -
Page 7: Specifications
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Specifications Read the Instruction Manual before first use and keep it for future reference. A digital copy of the latest Instruction Manual revision can be downloaded at www.pmk.de. Do not exceed the specifications. Allow the probe to warm up for 20 minutes. This probe comes with 1 year warranty. -
Page 8: Environmental Specifications
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Environmental Specifications Parameter Specification Temperature Operating -40 °C to +60 °C Range Non-Operating -40 °C to +71 °C Maximum Operating 80 % relative humidity for temperatures up to +31 °C, Relative decreasing linearly to 40 % at +45 °C, non-condensing... -
Page 9: Typical Frequency Response
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Typical Frequency Response The frequency response plot shown here is for the probe series without any accessories. Frequency responses with specific accessories are available on request. Typical Frequency Response – MMCX-P0725 - normalized... -
Page 10: Typical Input Impedance
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Typical Input Impedance The input impedance of the probe decreases as the frequency of the applied signal increases. Typical Differential Input Impedance – MMCX-P0725, MMCX-P0610(RO) qqqq MMCX-P0725 PML-711A 100k MMCX-P0610 100k... -
Page 11: Mmcx Handling Information
Allice Messtechnik GmbH MMCX Probe Series Instruction Manual MMCX Handling Information When using MMCX connectors, insert the probe’s MMCX plug straight into the mating socket until a “click” sound occurs to indicate a proper connection between the plug and socket. - Page 12 Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Step 2: Select Additional Accessories The specific frequency derating of each accessory is coming soon. Note that any additional accessory degrades the probe’s performance. Always observe the Maximum Input Voltage of the probe’s input. Do not use any other accessories.
- Page 13 Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Step 3: Select Power Supply (Active Models only) A wall plug power supply or multi-channel power supply with power supply cable are required for the models MMCX-A only, and available separately. The probe series has no functionality for remote control.
- Page 14 Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Notes _____________________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________ _____________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ _________________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________________________________________________________________ ____________________ _____________________________________________________________________________________________________________________________ _______________________________________________________________________________________________________________ _________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________ _______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ ______________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________________________ _____________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________________________________________________________________________________ _____________________________________________________ ______________________________________________________________________________ _______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________ _______________________________________________________________________________________________________________________________________________________________________________________________...
- Page 15 Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Notes _____________________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________________________________________________________________________________________________________________________ _____________ _____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ _________________________________________________ _____________________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ __________________________ _____________________________________________________________________________________________________________________________ _______________________________________________________________________________________________________________ _________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________ _______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ ______________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________________________ _____________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________ ___________________________________________________________________________________________________________________________________________________ _____________________________________________________ ______________________________________________________________________________ _______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________ _______________________________________________________________________________________________________________________________________________________________________________________________...
- Page 16 Allice Messtechnik GmbH MMCX Probe Series Instruction Manual Copyright © 2023 PMK - All rights reserved. Information in this publication supersedes that in all previously published material. Specifications are subject to change without notice. Informationen in dieser Anleitung ersetzen die in allen bisher veröffentlichten Dokumenten.
