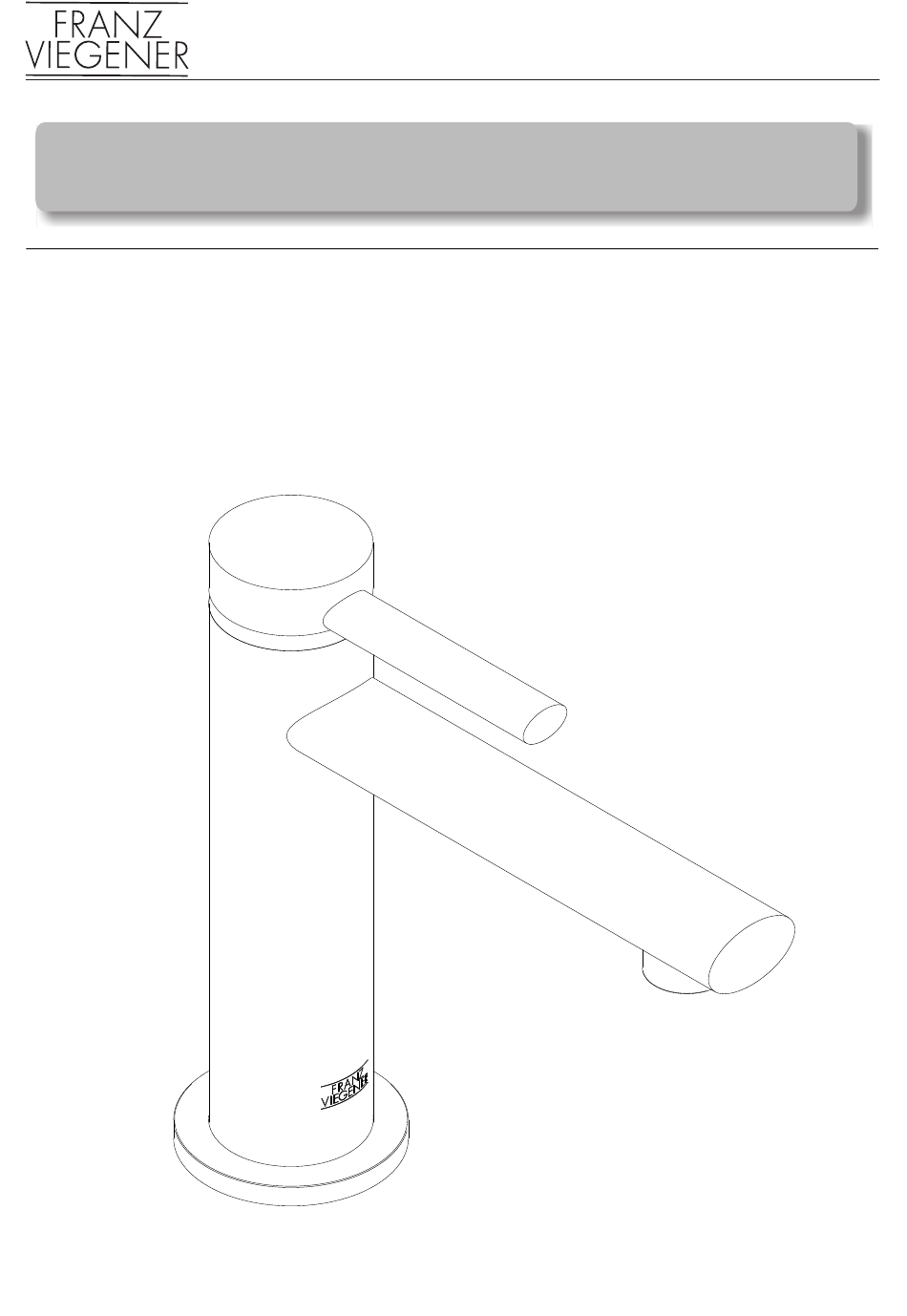

Nerea
Installation and maintenance / Instalación y mantenimiento
Before connecting the faucet to the water supply, flush the tubing
thoroughly to eliminate any residue /
Antes de conectar la grifería a la distribución de agua, purgue muy bien la cañería
a fin de eliminar partículas extrañas.
FV182/59-59P-59K-59D-59R-59V
Single handle lavatory set with soft touch drain/Monocomando para lavatorio con sopapa soft touch
FV181/59-59P-59K-59D-59R-59V
FV181.01/59-59P-59K-59D-59R-59V
FV181.02/59-59P-59K-59D-59R-59V
Single handle lavatory set, cylinder handle with push down drain assembly /
Monocomando para lavatorio, con volante cilíndrico y desagüe “push down”
Advertisement
Related Manuals for FRANZ VIEGENER Nerea FV182/59
Summary of Contents for FRANZ VIEGENER Nerea FV182/59
- Page 1 Nerea Installation and maintenance / Instalación y mantenimiento Before connecting the faucet to the water supply, flush the tubing thoroughly to eliminate any residue / Antes de conectar la grifería a la distribución de agua, purgue muy bien la cañería a fin de eliminar partículas extrañas.
- Page 2 Before you start / Antes de comenzar Required installation tools / Herramientas necesarias para la instalación Provided / Provistas Not Provided / No Provistas Aerator Tool Phillips screwdriver Aireador Destornillador Phillips Channelock Llave pico de loro Sealant Tape Teflón Handles / Volantes FV181/59P FV181/59K FV181/59D...
- Page 3 Exploded view / Vista explotada Aaerator Aireador Aaerator tool Aireador O´ring Rubber washer Arandela de goma Metal washer COLD Arandela metálica Tuerca Flexible hose Flexible Screw Rubber washer Tornillo Arandela de goma Rubber washer Rubber washer Arandela de goma Arandela de goma Plastic washer Arandela plástica Filter container...
- Page 4 Measures / Medidas FV181.02/59 FV181.02/59D FV181.02/59P FV181.02/59R FV181.02/59K FV181.02/59V 6" (152,4mm) FV181.01/59 FV181.01/59D FV181.01/59P FV181.01/59R FV181.01/59K FV181.01/59V FV181/59 FV181/59D FV181/59P FV181/59R 6" FV181/59K FV181/59V (152,4mm) FV182/59 FV182/59D FV182/59P FV182/59R FV182/59K FV182/59V 4 1/2" (114,3mm) 1 5/16" 1 5/16" 1 5/16" 2"...
- Page 5 Installation / Instalación Single handle installation / Instalación de monocomando...
- Page 6 Installation / Instalación Flexible connector installation / Instalación de flexible NOT INCLUDED NO INCLUÍDO Opening Temperature rate Rango de temperatura Apertura Cold Caliente Fria...
- Page 7 Installation / Instalación Drain installation / Instalación de sopapa FV182/59-59P-59K-59R-59D-59V...
-
Page 8: Installation / Instalación
Installation / Instalación OPEN CLOSED POSITION POSITION Cerrado Abierto Subjection-Set. Cojunto de sujecion... - Page 9 Installation / Instalación Drain installation / Instalación de sopapa FV181 - FV181.01 - FV181.02/59-59P-59K-59R-59D-59V...
- Page 10 Installation / Instalación Finished installation / Instalación finalizada...
-
Page 11: Notes / Notas
Notes / Notas... - Page 12 4000 Porett Drive - Gurnee, IL, 60031-USA. about this line. www.franzviegener.com Follow us on social media! FRANZ VIEGENER reserve the right to make revisions without notice in the design of faucets and bathroom accessories or in packaging. FOLLFV182/59 / February, 2024.
