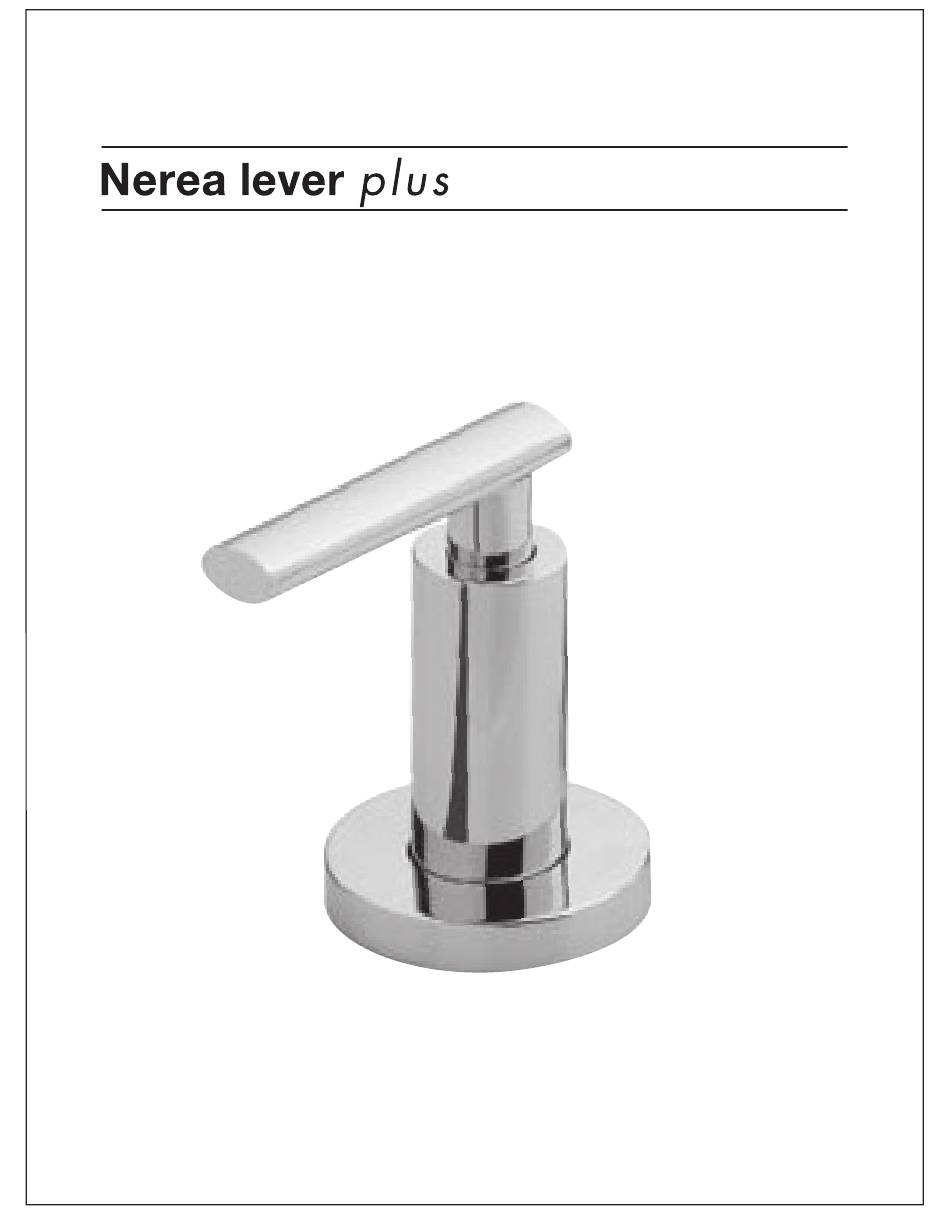

- Page 1 FRANZ VIEGENER i n s t a l l a t i o n a n d m a i n t e n a n c e...
- Page 2 CONGRATULATIONS ! This product has been subjected to stringent tests for its quality, performance and finish. We guarantee years of trouble free operation. We thank you for your choice and above all for the trust you are placing in us. This trust is what motivates us to improve every day. Required instalation tools Not provided Provided...
- Page 3 2 - Once the valve is in place, the wall is closed and the tile installation is Wall Limit completed, measure the valve extension that is protruding through the wall. Your finished dimension should be between 7/8” to 1”. If your finished dimension is correct, continue to step 4.
- Page 4 5- Place the connector on the stem and tighten with the provided allen wrench as shown in the picture. 6 - After the connector is in place, re- mount the brass extension tube back onto the valve. 7 - Turn the connector clockwise until it stops.
- Page 5 8- Slide the escutcheon onto the valve assembly. Slide the handle assembly onto the valve with the handle in the desired off position. Hold the handle in place and tighten the assembly by threading the escutcheon tube clockwise onto the connector.
- Page 6 10- If you are unable to achieve the proper position, remove the handle and escutcheon from the valve, loosen the allen screw on the connector and remove it from the valve stem. Reposition the connector on the valve stem one nocht to the right or left, as needed to position your handle correctly.
