Summary of Contents for FRANZ VIEGENER FV247.BASE

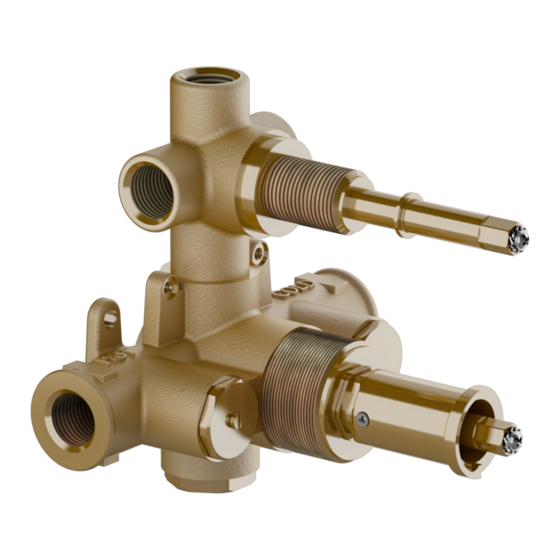

- Page 1 Before connecting the faucet to the water supply, flush the tubbing/piping thoroughly to eliminte any debris FV247.BASE 1/2” thermostatic rough-in valve only, with integral three port non-sharing diverter and shut-off...
- Page 3 After removing the installation cover, do not discard this screw. It will be used later when installing the trim. Measures 5 1/2" (133,5 mm)
- Page 4 Installation Valve position in relationship to the finished wall...
- Page 5 After removing the installation cover, do not discard these screws. They will be used later when installing the trim.
-
Page 6: Hot Water
PORT N°3 PORT N°2 PORT N°1 HOT WATER COLD WATER Turn the stem until temperature reaches 100° STEP #3 STEP #1 STEP #2 STEP #1: Remove hex insert as shown STEP #2: Align the notch to the 12 o´clock position STEP #3: Align hex insert so that the flat area is facing upwards... - Page 7 ALIGN ALIGN STEP #4 STEP#4 : Insert the hex insert back STEP #5 STEP #5: Place the covers back...
- Page 8 Scan the code to get more infor mation about this line. w w w. f r a n z v i e g e n e r. c o m FO-FV247.BASE / Edition N°2 / April 2021...
