PHAZER ESSENTIAL SERIES

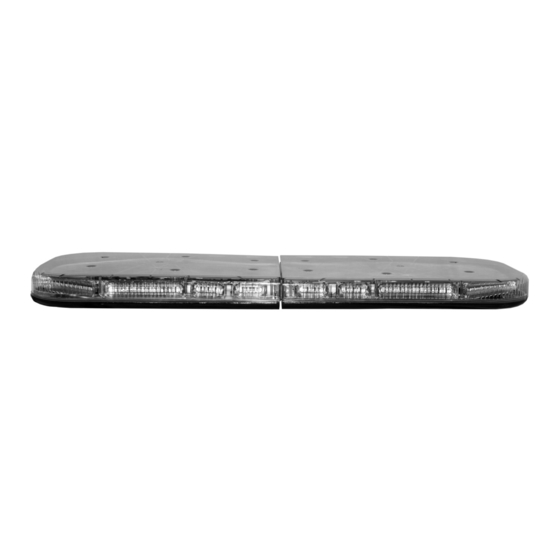

Ultra Low Profile Modular Lightbar
Installation, Basic Programming, and Operation Manual
455 Rochester Street
585-226-9500
www.StarSafetyTechnologies.com
Avon, NY 14414
(F) 888-478-2797
PLIT600 REV. C
Please Note: These instructions are provided as a general guideline only. Some
vehicles may require special mounting, wiring, and/or weather-sealing. This is the
sole responsibility of the installer. Star Safety Technologies assumes no
responsibility for the integrity of the installation for this or any of its products.
!
1/26/24
It is the sole responsibility of the owner to ensure the lightbar is
mounted securely. Check your light every time you enter the
vehicle to ensure that it is mounted securely. The manufacturer
assumes no responsibility for the secure mounting of this light.
PLEASE NOTE: THE DIRECT MOUNT IS THE STANDARD
MOUNT INCLUDED WITH THE LIGHTBAR.
THE HOOK MOUNTS MUST BE USED ON ALL POLICE AND/OR
OTHER EMERGENCY VEHICLES!!!
THE HOOK MOUNTS ARE SOLD SEPARATELY. THEY ARE
NOT INCLUDED WITH EACH LIGHTBAR. THEY MUST BE
ORDERED SEPARATELY. SEE THE ACCOMPANYING HOOK
MOUNT SHEET FOR A COMPLETE LIST OF AVAILABLE
MOUNTS AND KNOWN VEHICLE APPLICATIONS.
When mounting this lightbar, please be sure to keep any radio frequency
sensitive equipment at least 20" from the bar and power cable(s). Our circuits
have been designed to limit RFI emissions, but certain very sensitive equipment
may still be affected. Symptoms may include, but are not limited to, sporadic
operation and degraded performance. Star Safety Technologies cannot assume
any responsibility for any radio frequency induced malfunction or damage to any
radios, sirens, lightbars, or any other equipment mounted within 20" this lightbar.
Any antennae mounted in the proximity of the lightbar may cause your radio to
suffer the aforementioned results.
-i-
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Grote Star PHAZER ESSENTIAL Series
Summary of Contents for Grote Star PHAZER ESSENTIAL Series
- Page 1 Please Note: These instructions are provided as a general guideline only. Some vehicles may require special mounting, wiring, and/or weather-sealing. This is the sole responsibility of the installer. Star Safety Technologies assumes no responsibility for the integrity of the installation for this or any of its products. PHAZER ESSENTIAL SERIES Ultra Low Profile Modular Lightbar Installation, Basic Programming, and Operation Manual...
- Page 2 Mounting Instructions Wiring Instructions Please review the separate Mounting Bracket manual that is also enclosed with your bar for mounting instructions. All standard lightbar models are designed for 12VDC negative ground vehicles only. Reverse polarity may cause serious damage to the lightbar and/or vehicle. Contact the automotive dealer if there are any doubts about the polarity of your vehicle.
- Page 3 (Wiring Instructions CONT’D) Flash Pattern Programming Wire Functions This lightbar is shipped with a multi-conductor wiring harness pre-installed. Please review This lightbar has been designed to allow you to change the Warning Pattern (Enables 1 and the list below for the functions of each wire in the harness. Additional details about the 2), and the Traffic Directing Pattern Style (Left/Right/Center-Out).
- Page 4 Service LED FIVE YEAR LIMITED WARRANTY Star Safety Technologies warrants this LED light against factory defects in material and workmanship for five years after the date of manufacture. The owner will be responsible for returning to the Service Center any defective item(s) with the transportation costs prepaid. The manufacturer will, without charge, repair or replace at its option, products, or part(s), which its inspection determines to be defective.
