Grote TIR3 7856 Installation Manual

United States:
2600 Lanier Drive
Madison, IN 47250
Phone: (800) 628-0809
Fax: (812) 265-8440
Internet: www.grote.com
WARNING: This product can expose you to chemicals including Methylene Chloride which is known to the State of California to cause cancer, and
Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Installation:

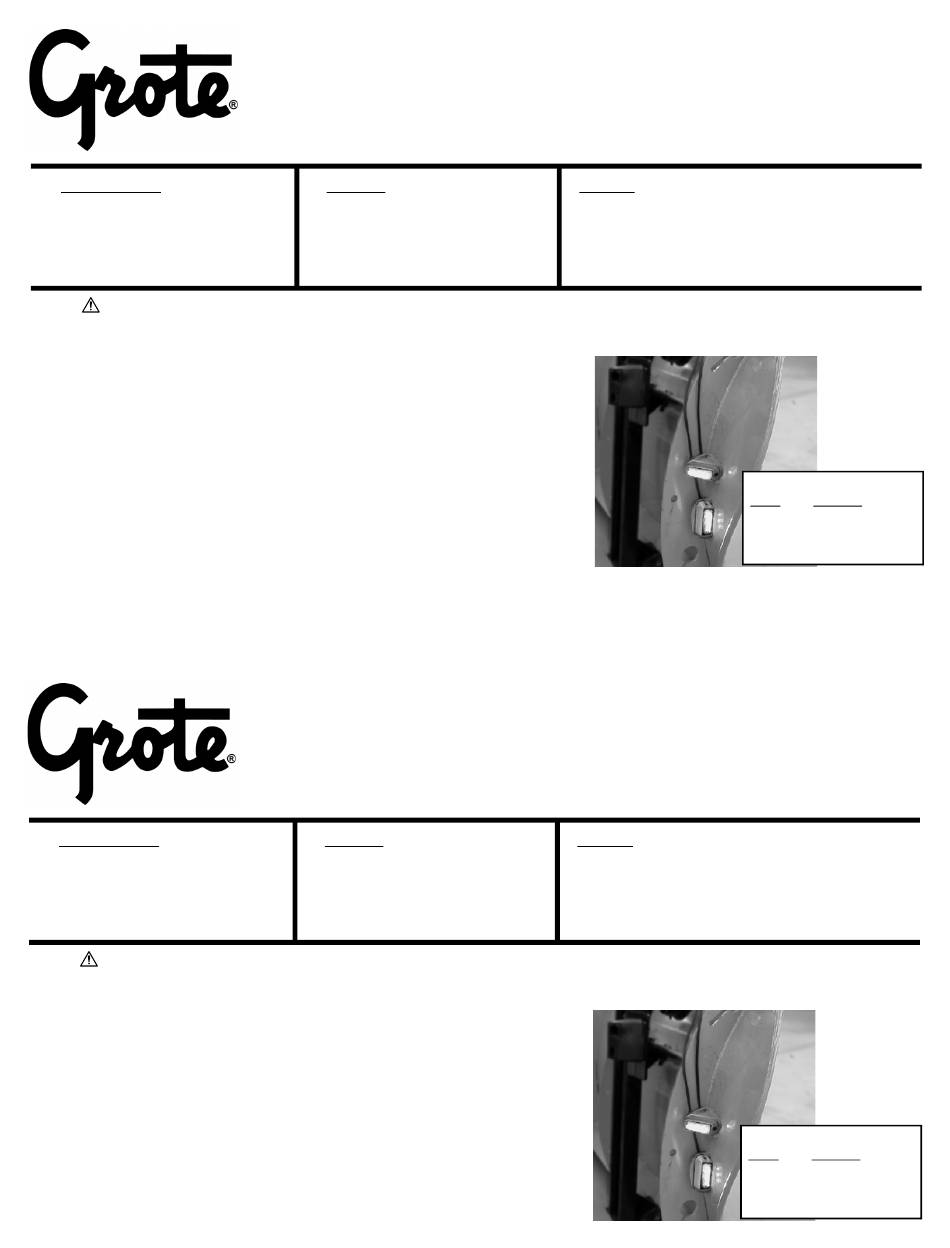

Place the light assemblies in the outside crevice of the outermost reinforcement brace in the
positions shown. Make sure the lighthead cable is positioned in the cable notch and that the
housing is in full contact with the plow.
With the housings in place, use an awl (or similar tool) to scribe the mounting hole locations
(2 per housing) onto the mounting surface. Remove the housings and with a 9/32" drill bit,
drill the required mounting holes through the mounting surface. Return the housings to their
mounting locations and secure using the hardware provided. NOTE: Be sure to insert the
mounting bolt though the mounting hole from the front of the plow.
Route the lighthead cables, chosing a manner and path to prevent damage by and
interference from any existing equipment. See table at right for wiring information:
©2005 Grote Industries Inc.
Form No.14023B (030620)
United States:
2600 Lanier Drive
Madison, IN 47250
Phone: (800) 628-0809
Fax: (812) 265-8440
Internet: www.grote.com
WARNING: This product can expose you to chemicals including Methylene Chloride which is known to the State of California to cause cancer, and
Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Installation:
Place the light assemblies in the outside crevice of the outermost reinforcement brace in the
positions shown. Make sure the lighthead cable is positioned in the cable notch and that the
housing is in full contact with the plow.
With the housings in place, use an awl (or similar tool) to scribe the mounting hole locations
(2 per housing) onto the mounting surface. Remove the housings and with a 9/32" drill bit,
drill the required mounting holes through the mounting surface. Return the housings to their
mounting locations and secure using the hardware provided. NOTE: Be sure to insert the
mounting bolt though the mounting hole from the front of the plow.
Route the lighthead cables, chosing a manner and path to prevent damage by and
interference from any existing equipment. See table at right for wiring information:
©2005 Grote Industries Inc.
Form No.14023B (030620)
Canada:
230 Travail Road
Markham, Ontario L3S 3J1
Phone: (800) 268-5612
Fax: (800) 267-9024
Canada:
230 Travail Road
Markham, Ontario L3S 3J1
Phone: (800) 268-5612
Fax: (800) 267-9024
Page 1
Installation Guide:
TIR3™ Wing Plow Lights
Model 7856 (Lower Light)
Model 7857 (Upper Light)
Mexico:
Grote Industries de Mexico, S.A. DE C.V.
Ave. Stiva #225 Parque Industrial Stiva Aeropuerto
c.p. 66600 Apodaca, Nuevo Leon
Phone: +011 (52) 81 8386-4265
Fax: +011 (52) 81 8386-4269
Color
WHT/BLK Chassis Ground
BROWN
WHT
BLUE
Installation Guide:
TIR3™ Wing Plow Lights
Model 7856 (Lower Light)
Model 7857 (Upper Light)
Mexico:
Grote Industries de Mexico, S.A. DE C.V.
Ave. Stiva #225 Parque Industrial Stiva Aeropuerto
c.p. 66600 Apodaca, Nuevo Leon
Phone: +011 (52) 81 8386-4265
Fax: +011 (52) 81 8386-4269
Color
WHT/BLK Chassis Ground
BROWN
WHT
BLUE
TIR3™ Super-LED™ Wiring
Function
+12VDC (fuse@3A)
Scan-Lock™
Sync
TIR3™ Super-LED™ Wiring
Function
+12VDC (fuse@3A)
Scan-Lock™
Sync
