Stryten Energy M Series Installation And Operating Instructions Manual

Li600 lithium-ion batteries
Hide thumbs Also See for M Series:

Advertisement

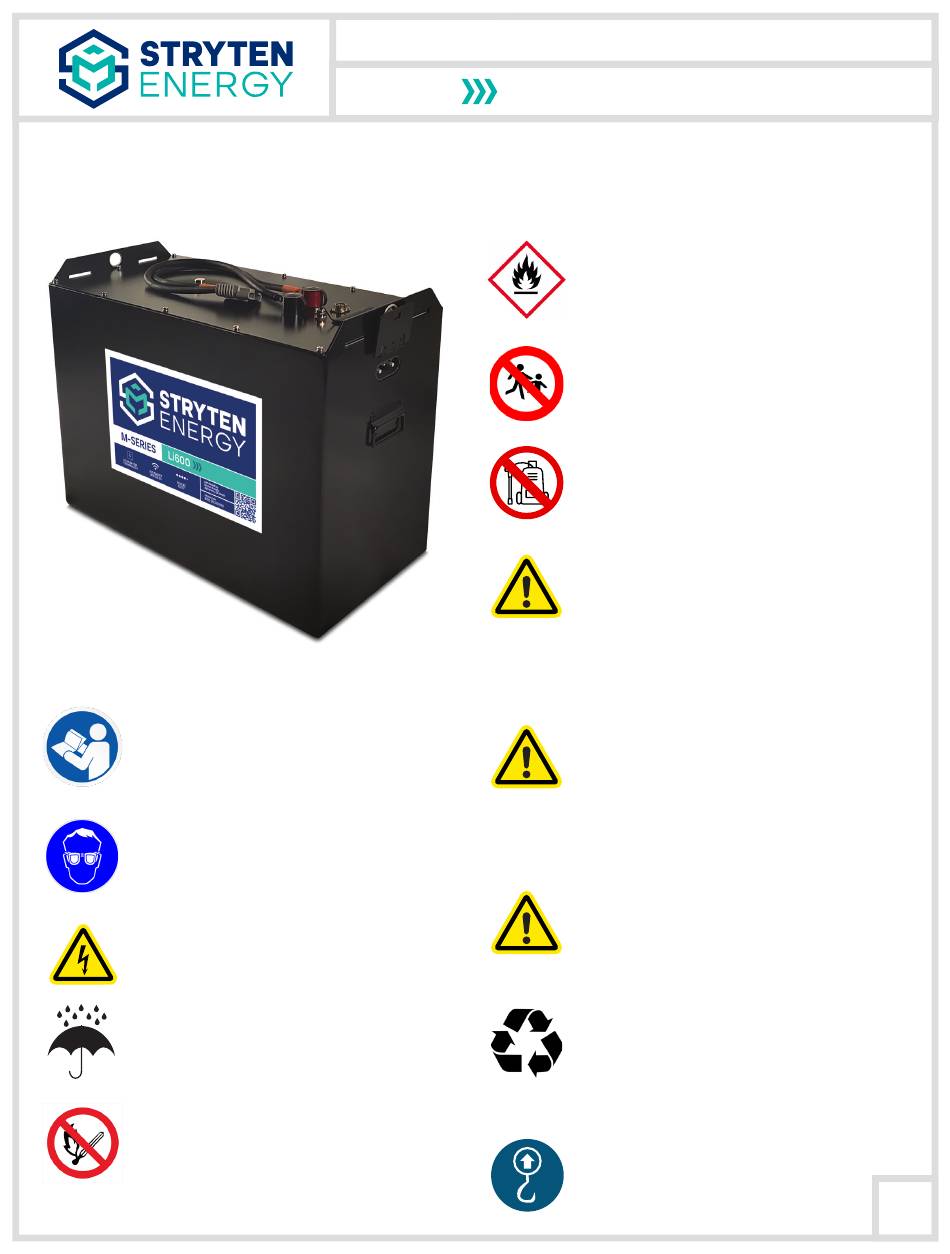

INSTALLATION AND OPERATING INSTRUCTIONS
WARNINGS AND GENERAL INFORMATION
Observe these Instructions and keep
them located near the battery for future
reference. Work on the battery should
only be carried out by qualified personnel.
While working on batteries wear
protective eye-glasses
and clothing.
Caution – parts of the battery may carry
dangerous voltages. Be careful when
handling cables.
Keep battery dry.
DO NOT smoke.
DO NOT dispose of the batteries in a fire.
DO NOT dispose of the battery in
normal waste.
DO NOT include battery with lead acid
battery recycling.
M-SERIES
Li600
Li600 LITHIUM-ION BATTERIES
Fire hazard. Avoid short circuits. Avoid
electrostatic charges and discharges/
sparks.
Keep children away from batteries.
DO NOT pressure wash.
- Lithium Batteries are heavy. Make sure
they are installed securely.
- Handle with care, avoid mechanical shock.
- Do not lift or pull up on power or
communication cables.
- Avoid wearing any loose metallic items
such as jewelry, watches, or bracelets
- Corrosive contents! Do not open. Avoid
contact with contents of a damaged
battery.
- To avoid the release of harmful gases,
avoid deeply discharging, charging
when damaged, and improperly charging
the battery.
- Use certified insulated safety tools for
installation. Any work procedures
and tools used should be in compliance to
EN 60900 or similar standard.
Battery may require recycling in
accordance with local laws.
Contact Stryten Energy or regulatory
authorities for further information. DO
NOT include battery with lead acid battery
recycling.
Tray lifting at this area.
1
