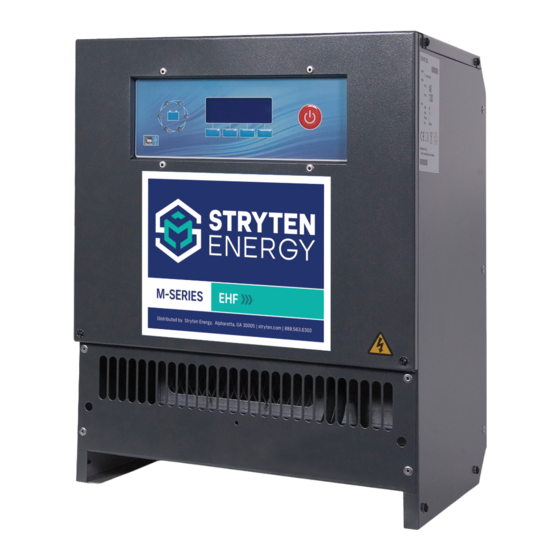

- Page 1 M-SERIES M-SERIES Operating Instructions and Safety Precautions for Stryten Energy EHF Series Chargers...
- Page 2 M-SERIES M-SERIES SAFETY The charger should be sited in a cool, dry, well-ventilated Only a trained person should operate this equipment. The location away from corrosive fumes and humid atmospheres. input and output voltages used with this equipment may be high enough to endanger life, so insulated, shrouded Ambient temperature range must be maintained between 32°F - 95°F.
- Page 3 M-SERIES M-SERIES DISPLAY AND CONTROL OPERATION Overview Before connecting the battery, check that the battery voltage corresponds to the voltage indicated inside the battery symbol on the LCD Display. The charger should be permanently connected to the mains supply. Standby With the input supply connected and no battery, the charger will enter the standby mode.
- Page 4 M-SERIES M-SERIES Charge Complete Once enabled, the charger will perform the equalize function after the standard charge has been completed. When charge is complete the charge status indicator will show indication 3 and the LCD Display will show the Battery Recover Mode following: If a battery is connected to the charger that is below the normal operating voltage an incorrect battery fault (F07)
- Page 5 M-SERIES M-SERIES USER MENU FAULTS / WARNINGS A user menu can be accessed by pressing the MENU key, the If a critical fault occurs during charge the charge status following options can then be scrolled through by pressing indicator will show indication 5 and the LCD Display will show the DOWN or UP arrow keys and then activated by pressing the fault code and description, for example: the SELECT key:...
- Page 6 (c) Check that ventilation is not obstructed. (d) Ensure that all safety covers and panels are correctly in place. STRYTEN ENERGY USA/PR 877.462.4636 800.268.2698 +52 5543527927 ©2023 Stryten Energy Alpharetta, GA 30005 SE1058 4/23...
