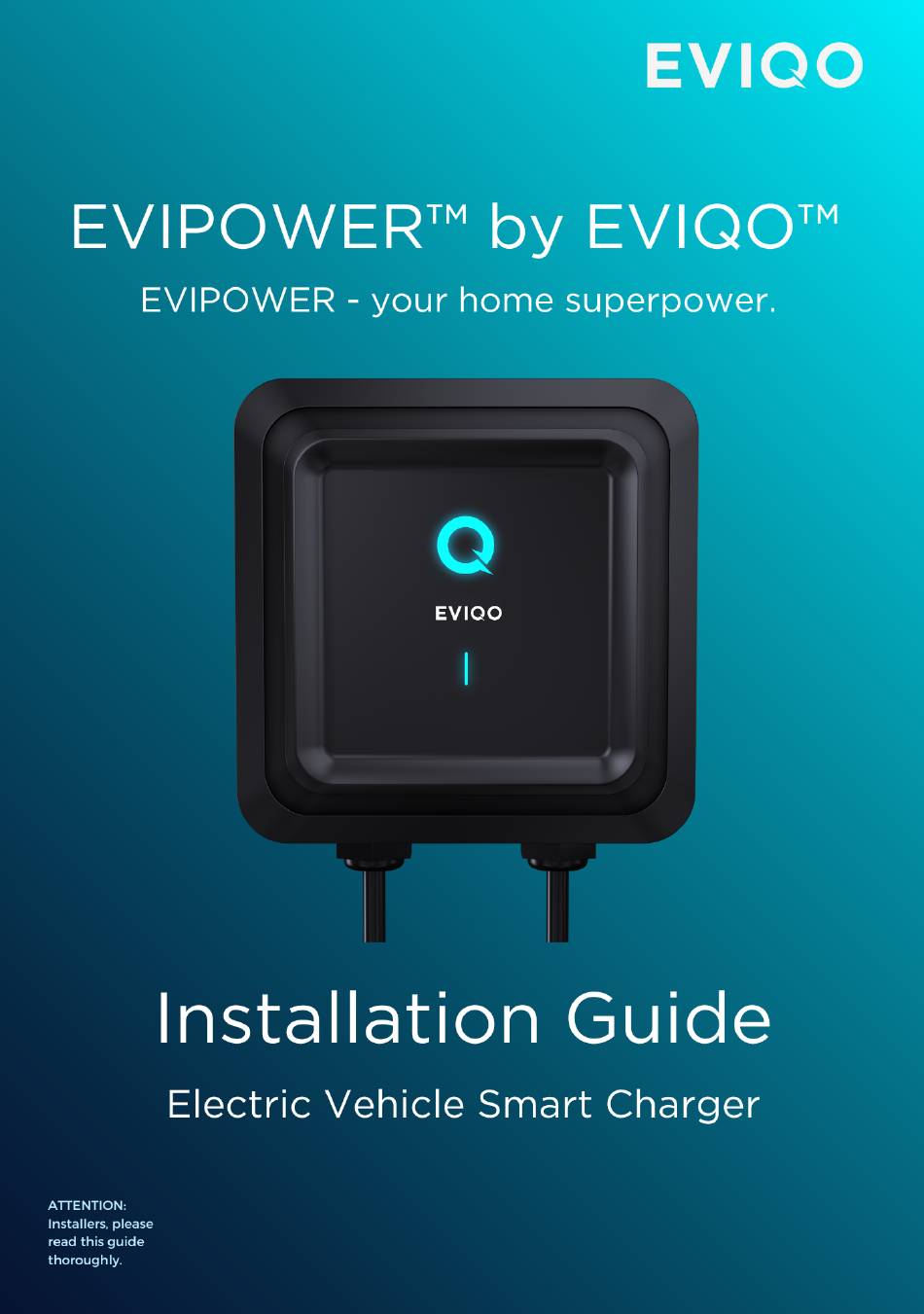

EVIQO EVIPOWER Installation Manual

Electric vehicle smart charger
Hide thumbs Also See for EVIPOWER:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVIPOWER and is the answer not in the manual?

Questions and answers

Dean Casciola
May 7, 2025

How do I look up the device's Mac address?

0

Related Manuals for EVIQO EVIPOWER

Summary of Contents for EVIQO EVIPOWER

  • Page 2 USER MANUAL eviqo.io...
  • Page 4 2. Ensure the signal indicator (small vertical line) is flashing blue, indicating the configuration mode. 3. Keep your phone close to EVIPOWER; it might take a minute to detect. 4. Don't forget to grant the EVIQO app Bluetooth permissions. 2. My EVIPOWER cannot connect to the Internet. What shall I do? Please restart your wifi router.
  • Page 5 7. After the reboot, the signal indicator (small vertical line) must go flashing blue - configuration mode. 8. Your phone must be very close to the EV charger, please allow the EVIQO app 10-60 seconds to find a new device. Once done, follow the next steps in the app 5.
  • Page 6 What's the difference? Dip switch is a hardware maximum current output limiter. The current slider located on the main page of the EVIQO app is limited with the output set on the dip switch. The slider has 1A increment. 11. My family members also use my EV. How to add a second user to...
  • Page 7 United States and other countries. It may not be modified, reproduced, or distributed without the prior express written consent of EVIQO TECHNOLOGIES LIMITED. The trademarks and service marks "EVIQO" and "EVIPOWER" are registered trademarks of EVIQO TECHNOLOGIES LIMITED in the United States and other countries and cannot be used without...

  • Page 8: Table Of Contents

    2. PRODUCT INTRODUCTION AND DATA SHEET 3. VERIFY CONTENTS 4. GATHER TOOLS 5. PLAN THE INSTALLATION TYPE BASED ON YOUR VERSION 6. WIRE THE CIRCUIT 7. PLAN THE MOUNTING LOCATION 8. MOUNTING 9. CONFIGURING YOUR DEVICE 10. LIGHT CODES 11. LIMITED WARRANTY 12. COMPLIANCE eviqo.io...

  • Page 9: Important Safety Instructions

    1. Important Safety Instructions PLEASE KEEP THESE INSTRUCTIONS SAFE WARNING: This Installation Guide contains important instructions for your EVIQO Smart EV Charger. Remember to always follow simple precautions when using electronic products, including the following guidelines. CAUTION: Please note that strictly following the information provided in this manual does not exempt the user from their responsibility to comply with all relevant codes and safety standards.
  • Page 10 WARNING: Disconnect electrical power to install the charging station. WARNING: Be sure to preview this Installation Guide before installing the EVIQO Smart EV Charger. CAUTION: ●...

  • Page 11: Product Introduction And Data Sheet

    CAUTION: Avoid placing the charger near hot objects and at high temperature locations and away from dangerous substances such as flammable gases and corrosive materials. Do not install EVIQO Smart EV Charger near flammable, combustible or explosive materials. ● CAUTION: Do not put heavy objects on the charger to avoid danger.
  • Page 12 2.2 Basic Dimensions eviqo.io...
  • Page 13 2.3 Specifications of EVIQO Smart EV Charger Model Number EVIPOWER Rated Input Voltage 208-240 V AC 16/32/40/48A Rated Output Current Power Cable 37” input cable with NEMA 14-50 plug or 39” THWN-2 6 AWG (for L1 and L2) and 10 AWG (for PE) for hardwire model...

  • Page 14: Verify Contents

    3. Verify Contents Check the list to ensure you have this Installation Guide and all the parts listed below: Note: If you are missing any of these parts, please contact support@eviqo.io eviqo.io...
  • Page 15 Holster wall-mounted bracket installation. Allen Wrench For tightening Anti-Theft Button Head Screws on the sides of EVIQO Smart EV Charger. Anti-Theft Button Head For securing the EVIQO Smart EV Screws Charger and the Holster to their Mounting Brackets.

  • Page 16: Gather Tools

    4. Gather Tools For comfortable installation of the EVIQO Smart EV Charger and depending on the type of installation - plugged-in or hardwired, you might need: 1) One NEMA 14-50 outlet or supplies to install a hardwired dedicated circuit 2) Tape (optional, will help to attach the Mounting Templates to the wall, if needed)

  • Page 17: Plan The Installation Type Based On Your Version

    48 Amps out of the box and requires a 60 Amps dedicated circuit. EVIQO Smart EV Charger plug-in version is equipped with NEMA 14-50 input power plug and is pre-set for 40 Amps of Max Output Load (Number 2 on the Amperage Dip Switch located inside the device) by default.
  • Page 18 To decrease the default Max Output Load of EVIQO Smart EV Charger to 32 Amps - choose “1” on the Amperage Dip Switch. For 16 Amps - choose “0”, respectively. Follow all applicable codes and ordinances and pull a permit for completing the electrical work as required.

  • Page 19: Wire The Circuit

    NEMA 14-50 plug first. To remove the faceplate — unscrew the 7 screws on the back side of EVIQO Smart EV Charger. Then, you will need THWN-2 copper wires with the following gauge sizes: L1/L2 6 AWG and GND (PE) 10 AWG.

  • Page 20: Plan The Mounting Location

    EV Charger. Note the distance to the breaker panel and/or the junction box. The hardwire version of EVIQO Smart EV Charger comes with a 39” (around 100 cm) 3-wire whip with liquid tight fitting and conduit. If you hardwire a plug-in version of EVIQO Smart EV Charger - plan your mounting location based on your custom wiring.

  • Page 21: Mounting

    E. Ground connection for hardwire installation: follow the National Electrical Code and all local applicable codes. F. If you decide to install the EVIQO Smart EV Charger outdoors, this requires using an outdoor-rated, weather-resistant NEMA 14-50 outlet / hardwired installation.
  • Page 22 For wood studs and drywalls: use the Phillips Pan Head Screws provided to fix the wall-mounted bracket for the EVIQO Smart EV Charger onto the wall. Make sure the surface is sufficiently thick to hold the EV Charger...
  • Page 23 Q-indicator will get solid green, indicating it is ready to charge. By default the EVIQO Smart EV Charger is set for Plug & Charge mode – just plug in the J1772 connector to your car and the charging session will start automatically.

  • Page 24: Configuring Your Device

    (see Question 4 on page 4 of this Installation Guide). This will clear the device's configuration. Note: To download the EVIQO mobile app, please use the QR codes. EVIQO APP GUIDE: EVIQO YouTube Videos:...
  • Page 25 Usage Details page of the EVIQO app. Press on the charts to see the stats for a specific day. Leverage the Timeline feature (press “...” in the top right corner of the main page) to gain insights into your charging habits and effectively manage costs.

  • Page 26: Light Codes

    Plans. This feature simplifies the scheduling process and helps you optimize your charging sessions. The EVIQO app offers reminders to plug in before scheduled sessions, provides push notifications with session stats upon completion, and prevents conflicting schedules that overlap.
  • Page 27 Voltmeter Fault Flashing red 1 time Meter fault b) If the fault persists, contact EVIQO technical support. a) Unplug the J1772 connector and reboot the charger. b) Make sure the CP (Control Pilot) line is fixed in the right place.
  • Page 28 Unplug the J1772 connector Flashing red 8 and reboot the charger if the Relay failure during Relay Fault times problem persists after the charging 3 seconds interval unplugging. b) Avoid prolonged simulator or eviqo.io...
  • Page 29 loading machine usage. c) Consult a professional to check for electrical short-circuits and ensure dry J1772 connector. d) Test the relay module with a multimeter while the EV charger is on. Use the AC voltage gear to measure L1_IN and L1_OUT or L2_IN and L2_OUT.

  • Page 30: Limited Warranty

    All other warranties are excluded to the maximum extent permitted by law. If any implied warranty cannot be disclaimed under Contact the EVIQO support team for more details on how to extend the Limited Warranty and obtain a total of three (3) years of coverage.
  • Page 31 Any damage or defects not directly attributable to manufacturing or workmanship issues. 10. Any damage caused by using any third-party unauthorized software, interface, parts, or supplies not supplied and/or approved by EVIQO TECHNOLOGIES in advance in writing. ATTENTION: The Warranty will not be applicable if the original...
  • Page 32 If, upon reviewing your request, it is determined by EVIQO that the defect appears to be covered by your valid Warranty, and your Warranty is still in effect, EVIQO will issue you an RMA number and provide you with the address to return the defective EV Charger.

  • Page 33: Compliance

    2. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2BBXG-EVIPOWER NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 34 Installation notes ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ eviqo.io...
  • Page 35 ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________...
  • Page 36 ______________________________________________________________ eviqo.io...
