SECTION 2
OUTSIDE AND INSIDE VIEWS
2-1

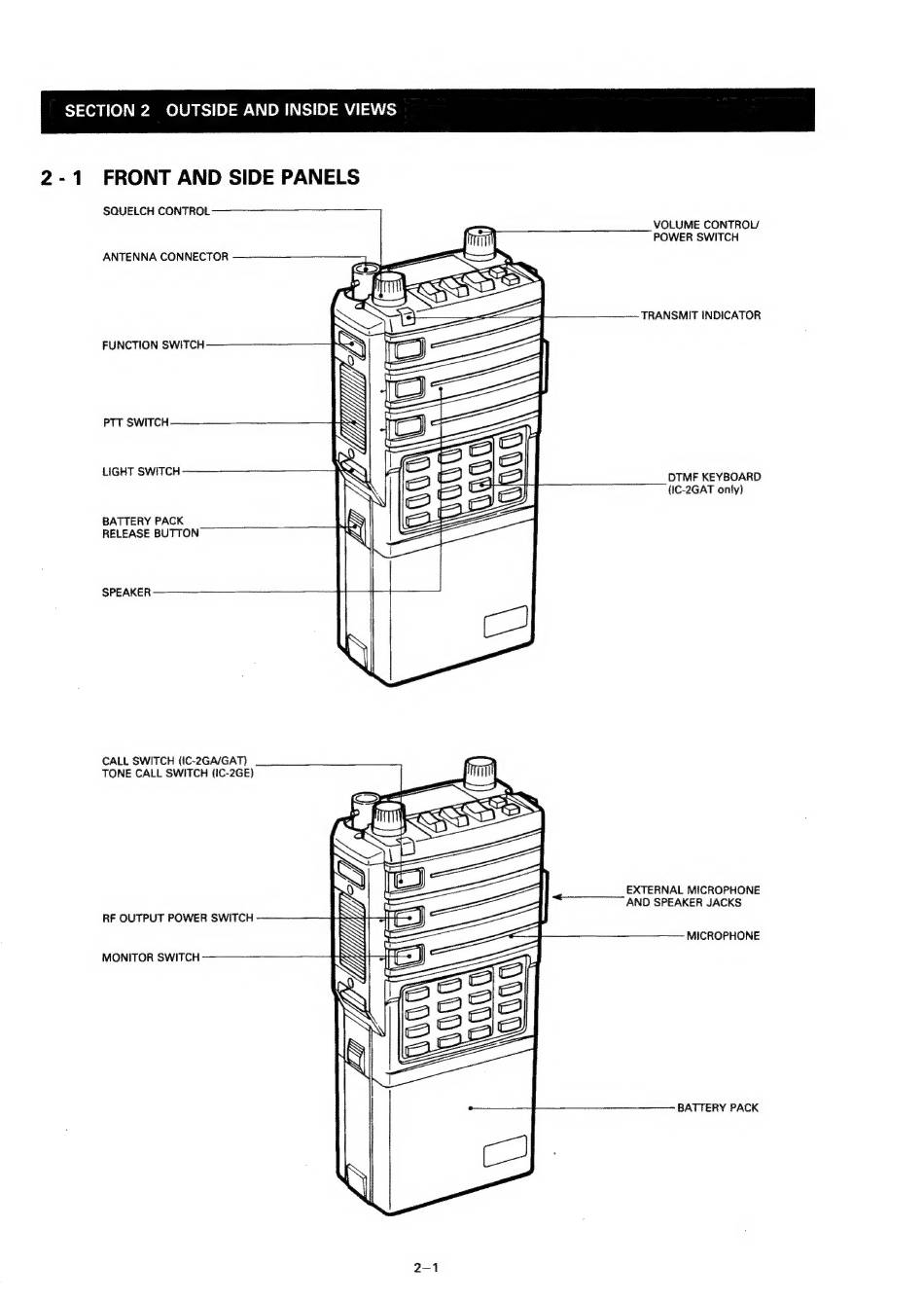

FRONT AND SIDE PANELS
SQUELCH CONTROL
ANTENNA CONNECTOR
FUNCTION SWITCH
PTT SWITCH
LIGHT SWITCH
BATTERY PACK
RELEASE BUTTON
VOLUME CONTROL/
POWER SWITCH
TRANSMIT INDICATOR
DTMF KEYBOARD
SPEAKER
CALL SWITCH (IC-2GA/GAT)
TONE CALL SWITCH (IC-2GE)
17
C
d Ро
RF OUTPUT POWER SWITCH
MONITOR SWITCH
S
SS
s
(IC-2GAT only)
EXTERNAL MICROPHONE
AND SPEAKER JACKS
MICROPHONE
BATTERY PACK
