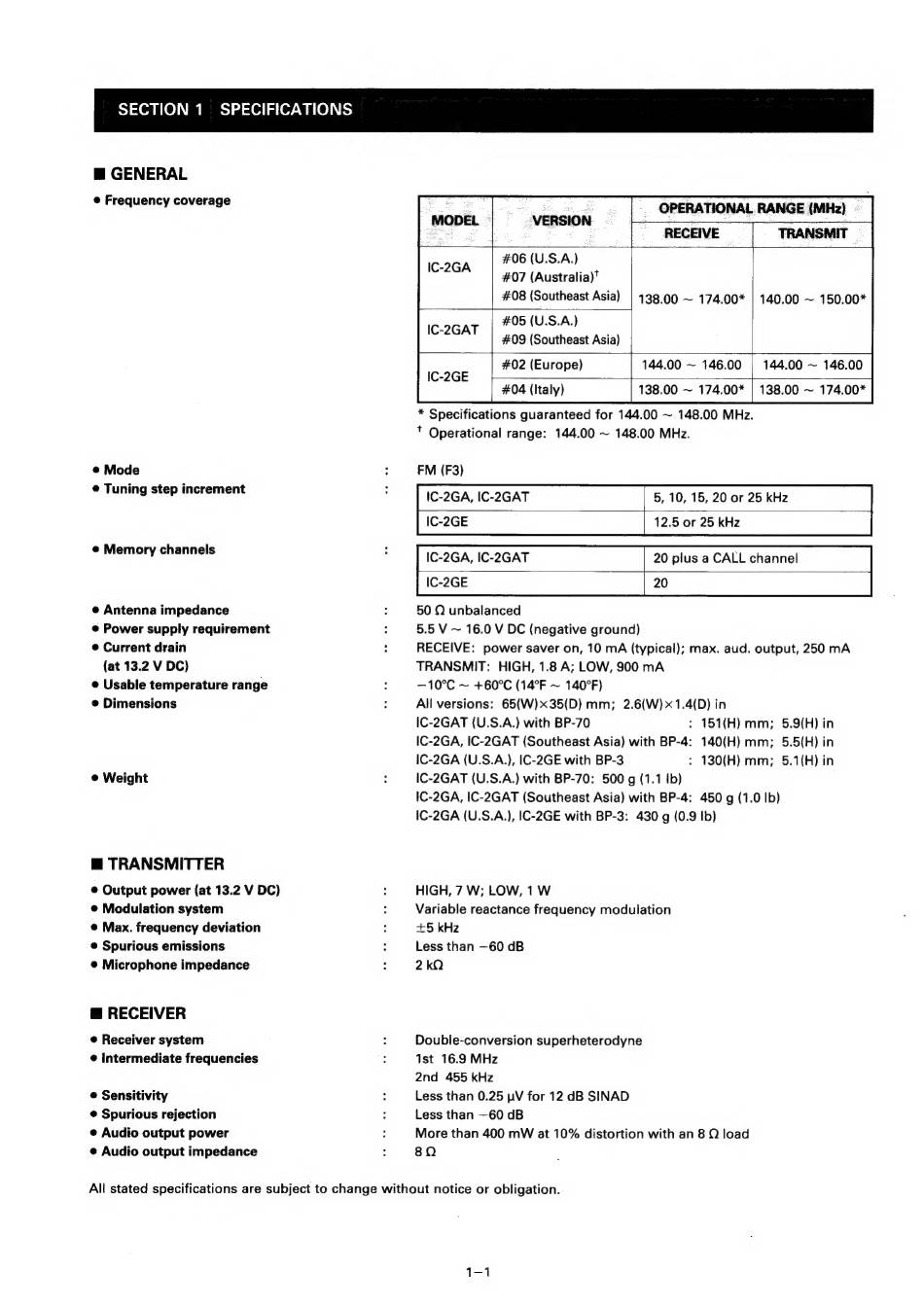

SECTION 1 SPECIFICATIONS
Ш GENERAL
* Frequency coverage
e Mode
* Tuning step increment
* Memory channels
e Antenna impedance
* Power supply requirement
* Current drain
(at 13.2 V DC)
* Usable temperature range
* Dimensions
* Weight
Ш TRANSMITTER
* Output power (at 13.2 V DC)
* Modulation system
* Max. frequency deviation
* Spurious emissions
* Microphone impedance
Ш RECEIVER
* Receiver system
• intermediate frequencies
* Sensitivity
* Spurious rejection
* Audio output power
* Audio output impedance
OPERATIONAL RANGE (MHz)
VERSION
RECEIVE TRANSMIT
#06 (U.S.A.)
#07 (Australia)!
#08 (Southeast Asia) | 138.00 — 174.00* | 140.00 — 150.00*
#05 (U.S.A.)
#09 (Southeast Asia)
#02 (Europe) 144.00 — 146.00 | 144.00 — 146.00
#04 (Italy) 138.00 — 174.00* | 138.00 — 174.00*
* Specifications guaranteed for 144.00 — 148.00 MHz.
* Operational range: 144.00 — 148.00 MHz.
FM (F3)
IC-2GA, IC-2GAT 5, 10, 15, 20 or 25 kHz
IC-2GE 12.5 or 25 kHz
IC-2GA, IC-2GAT 20 plus a CALL channel
IC-2GE 20
50 Q unbalanced
5.5 V — 16.0 V DC (negative ground)
RECEIVE: power saver on, 10 mA (typical); тах. aud. output, 250 mA
TRANSMIT: HIGH, 1.8 A; LOW, 900 mA
—10°С ~ +60°C (14°F ~ 140°F)
All versions: 65(М/) х 35(0) mm; 2.6(W)x 1.4(0) in
IC-2GAT (U.S.A.) with BP-70 : 151(H) mm; 5.9(H) in
IC-2GA, IC-2GAT (Southeast Asia) with BP-4: 140(H) mm; 5.5(H) in
IC-2GA (U.S.A.), IC-2GE with BP-3 : 130(Н) mm; 5.1(H) in
IC-2GAT (U.S.A.) with BP-70: 500 g (1.1 Ib)
IC-2GA, IC-2GAT (Southeast Asia) with BP-4: 450 g (1.0 Ib)
IC-2GA (U.S.A.), IC-2GE with BP-3: 430 g (0.9 Ib)
HIGH, 7 W; LOW, 1W
Variable reactance frequency modulation
+5 kHz
Less than —60 dB
2kQ
Double-conversion superheterodyne
1st 16.9 MHz
2nd 455 kHz
Less than 0.25 уМ for 12 dB SINAD
Less than —60 dB
More than 400 mW at 10% distortion with an 8 Q load
8Q
Ali stated specifications are subject to change without notice or obligation.
