Summary of Contents for Euro Appliances EED614TX

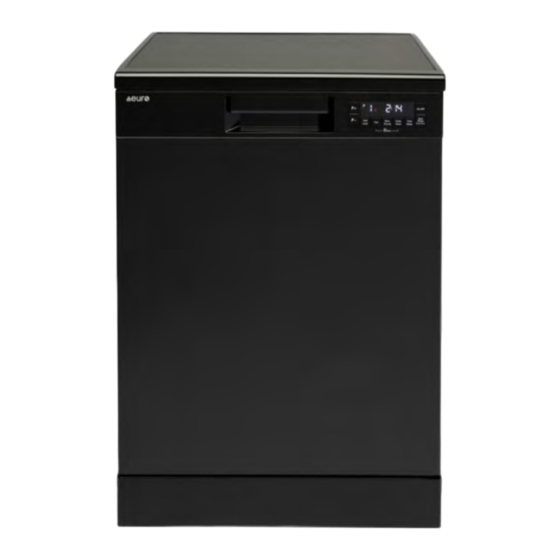

- Page 1 U S A G E A N D C A R E G U I D E PRODUCT CODE: EED614TX EED614TBK...
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
CONTENTS Upper basket multipurpose service 1 INSTRUCTIONS FOR SAFETY rack ............21 AND ENVIRONMENT Adjusting the height of the upper General safety ........4 basket ..........22 Intended use ..........4 Adjusting the height of the upper Children’s safety ........5 basket ..........23 Disposing of packaging material ..5 Upper basket multi-function service Transportation of the product ....5... -
Page 4: Instructions For Safety And Environment
instructions for safety and environment This section contains safety Never touch the plug with • instructions that will help to get wet hands! Never unplug by protected from risk of personal pulling on the cable, always injury or property damage. Failure pull out by grabbing the plug. -
Page 5: Children's Safety
instructions for safety and environment This appliance is intended Children’s safety • to be used in household and Electrical products are • similar applications such as: dangerous for the children. - Staff kitchen areas in shops, Keep children away from the offices and other working product when it is in use. -
Page 6: Compliance With Weee Directive And Disposing Of The Waste Product
instructions for safety and environment 1. Unplug the product before Package information transporting it. Packaging materials of the 2. Remove water drainage and product are manufactured from water supply connections. recyclable materials in accordance with our National Environment 3. Drain the remaining water in Regulations. -
Page 7: Dishwasher Overview
Dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid (depends on model) 12. Upper basket rail 13. -
Page 8: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 9: Installation
Installation Refer to the nearest Authorised Service Appropriate installation Agent for installation of your product. To location make the product ready for use, make sure Place the product on a solid and flat • that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be installed... -
Page 10: Connection To The Drain
Installation floor. A discharge hose longer than 4 meters Permitted water temperature: up to causes dirty washing. 25°C ( 60°C for products equipped Attach the water discharge hose to the with Aquasafe+; please refer to drainpipe without bending it. Tightly fix the Aquasafe+ section ) water discharge hose to the drainpipe in The dishwasher should be connected to... -
Page 11: Aquasafe
Installation The voltage and allowed fuse or Aquasafe+ • breaker protection are specified in the (depends on model) “Technical specifications” section. If the The Aquasafe+ system protects against current value of the fuse or breaker in water leaks that may occur at the hose inlet. the house is less than 16 Amps, have Water contact with the valve box of the a qualified electrician install a 16 Amp... -
Page 12: Preparation Tips For Energy Saving
Preparation Tips for energy saving Following information will help you use the product in an ecological and energy-efficient manner. Wipe away any coarse food remnants on the dishes before putting them in the product. Operate the product after filling it completely. -
Page 13: Rinse Aid
Preparation 3. Push the lid of the detergent dispenser to close it. A "click" will be heard when the lid is closed. Contact the detergent manufacturer if your dishes are wet and/or if you notice limescale spots particularly on your glasses after the washing programme is over when using a tablet detergent. -
Page 14: Items Not Suitable For Washing In The Dishwasher
Preparation Open the lid of the rinse aid reservoir The rinse aid adjustment is with the help of the latch. described under "Adjusting the amount of rinse aid" in the section for operating the machine. Wipe clean any spilled rinse aid outside the reservoir. -
Page 15: Placing The Dishes Into The Dishwasher
Preparation Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. Wipe away any coarse food remnants •... - Page 16 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware /43 EN Dishwasher / User’s Manual...
-
Page 17: Cutlery Basket
Preparation Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 18: Collapsible Lower Basket Tines
Preparation Collapsible lower basket Collapsible lower basket tines tines (depends on model) (depends on model) There are foldable tines (A) located at the There are foldable tines (A) located at the lower basket of the machine are designed lower basket of the machine are designed for an easier placement of large pieces such for an easier placement of large pieces such as pans, bowls, etc. -
Page 19: Tray Wash Supports
Preparation Tray Wash Supports Soft Touch Accessory (depends on model) (depends on model) Use the supports to wash trays in the The SoftTouch Accessory found in the lower bottom basket. basket of your machine enables a safe See the Auxiliary functions section for washing for your fragile glasses. -
Page 20: Lower Basket Multipurpose / Height Adjustable Service Rack
Preparation Lower basket multipurpose Make sure that the impeller does / height adjustable service not touch the dishes you placed rack on the racks. (depends on model) To close the racks This accessory located at the lower basket of your machine allows you to easily wash Fold the rack (A). -
Page 21: Lower Basket Bottle Wire
Preparation Upper basket multipurpose Lower basket bottle wire service rack (depends on model) The bottle wire is designed for easier (depends on model) washing of long pieces with wide mouths. This accessory located at the upper basket You may take out the bottle wire from the of your machine allows you to easily wash basket when not in use by pulling it out from pieces such as extra long ladles and bread... -
Page 22: Adjusting The Height Of The Upper Basket
Preparation To lower the basket, while it is in the Adjusting the height of the uppermost position; upper basket Hold the upper basket wires with both (depends on model) hands, slightly lift up the basket and The upper basket height adjustment simultaneously push and release the mechanism has been designed for you to latches shown in the figure (B). -
Page 23: Adjusting The Height Of The Upper Basket
Preparation To raise the basket, hold the wires of the Adjusting the height of the basket and pull the basket upwards with upper basket both hands while the basket is at the (depends on model) lowermost position (B) Upper basket height adjustment mechanism 2. -
Page 24: Upper Basket Multi-Function Service Rack
Preparation Tray Washing Support Upper basket multi-function service (depends on model) rack You may use the tray washing supports (depends on model) if you want to wash a tray on your lower Thanks to the upper basket multi-function basket. service rack on the upper basket of your Refer to the Additional Functions section to appliance, you may load and wash long select the proper program and function. -
Page 25: Collapsible Upper Basket Wires
Preparation Collapsible upper basket Height setting with empty wires basket (depends on model) (depends on model) You can use collapsible wires when you need In this model, the height setting of the upper a larger space for your dishes in the upper basket may be changed using the wheels basket of your machine. -
Page 26: Ceiling Cutlery Basket
Preparation Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 27: Silverware Basket Piece
Preparation Silverware basket piece (depends on model) You can place your forks, spoons etc. to upper basket with the additional piece in the figure: It is recommended that you should place the silverware basket piece on front left corner of the upper basket by detaching the Upper basket height adjustable rack. - Page 28 5 5 5 Operating the product Display 5. Function keys 2. On/Off key Half Load function 3. Start/Pause/Cancel key Fast+ Function 4. Time Delay key Extra Drying Function TurboWash Function 6. Programme Selection keys 15 16 7. Programme indicator 12. End of Programme indicator 8.
-
Page 29: Operating The Product Keys
Operating the product 3. Press Programme Selection keys until Keys the number of the programme you On / Off key selected appears on the Programme It is used to turn on or off the machine. indicator. Use P+ to switch to the next Press On / Off Key to switch ON. - Page 30 Operating the product /43 EN Dishwasher / User’s Manual...
-
Page 31: Auxiliary Functions
Operating the product Auxiliary functions Half Load function It is used to operate the machine without Washing programmes of your dishwasher loading it completely. are designed to obtain the best cleaning Load your dishes in the machine as you effect, considering the type of the soil, like. -
Page 32: Programming The Washing Time
Operating the product Auto Tablet Feature Interior Lighting Auto Tablet is a feature which detects (depends on the model) the use of combined tablet detergents Some models have interior lighting to automatically. illuminate the interior when the door is opened. Drying performance of these After switching on your machine, type of detergents is improved... - Page 33 Operating the product 4. Press Start / Pause / Cancel key to end of the program will appear on the Display start countdown for the Time Delay. Information Line. Start / Pause / Cancel Time Delay indicator and Start / Pause indicator starts lighting continuously.
-
Page 34: Cancelling The Programme
Operating the product Rinse Aid indicator ( Child Lock does not lock the door Please check the rinse aid indicator on the of the machine. display to see whether there is adequate amount of rinse aid in the dishwasher or If you turn your machine off by not. -
Page 35: End Of Programme
Operating the product not disappear, there is a permanent fault. In End of program this case the authorised service should be End of Program indicator will light up once contacted. the washing program is over. Press the On/Off button to turn off your machine. -
Page 36: Maintenance And Cleaning
Maintenance and cleaning Service life of the product extends and Cleaning the filters frequently faced problems decrease if it is Clean the filters at least once a week in order cleaned at regular intervals. for the machine operates efficiently. Check if Unplug the product and turn off food residues are left on the filters. -
Page 37: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 38: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller. -
Page 39: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 40 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the program is over. >>> Do not unload your machine right after washing process is completed.
- Page 41 Troubleshooting There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 42 Troubleshooting • Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents. •...
- Page 43 Troubleshooting Water remains in the dishwasher at the end of the program • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”. • Discharge hose is clogged/blocked. >>> Check the discharge hose. If necessary, remove the discharge hose, clear the blockage and insert is as illustrated in the user manual.
- Page 44 Pronto Service + Support: 1800 440 335 Email: service@eurostylegroup.com.au HEAD OFFICE 65 Glynburn Road, Glynde SA 5070 Ph: 08 8165 1012 www.euroappliances.com.au...
Need help?
Do you have a question about the EED614TX and is the answer not in the manual?
Questions and answers
machine is stuck on e01 error message i cannot change this
The E:01 error on the Euro Appliances EED614TX machine indicates that the dishwasher is taking in too much water or there is a leakage. The machine will attempt to discharge the excess water automatically. To fix the issue:
1. Check if there is any water leakage from the dishwasher or its components.
2. Ensure the water inlet and drainage hoses are properly connected and not damaged.
3. Wait for the machine’s safety algorithm to discharge the excess water.
4. If the error persists, turn off the machine and restart it.
5. If the problem continues, consult your dealer or an authorized service agent.
Do not attempt to repair the machine yourself.
This answer is automatically generated
