Summary of Contents for Euro Appliances PEDM15XS

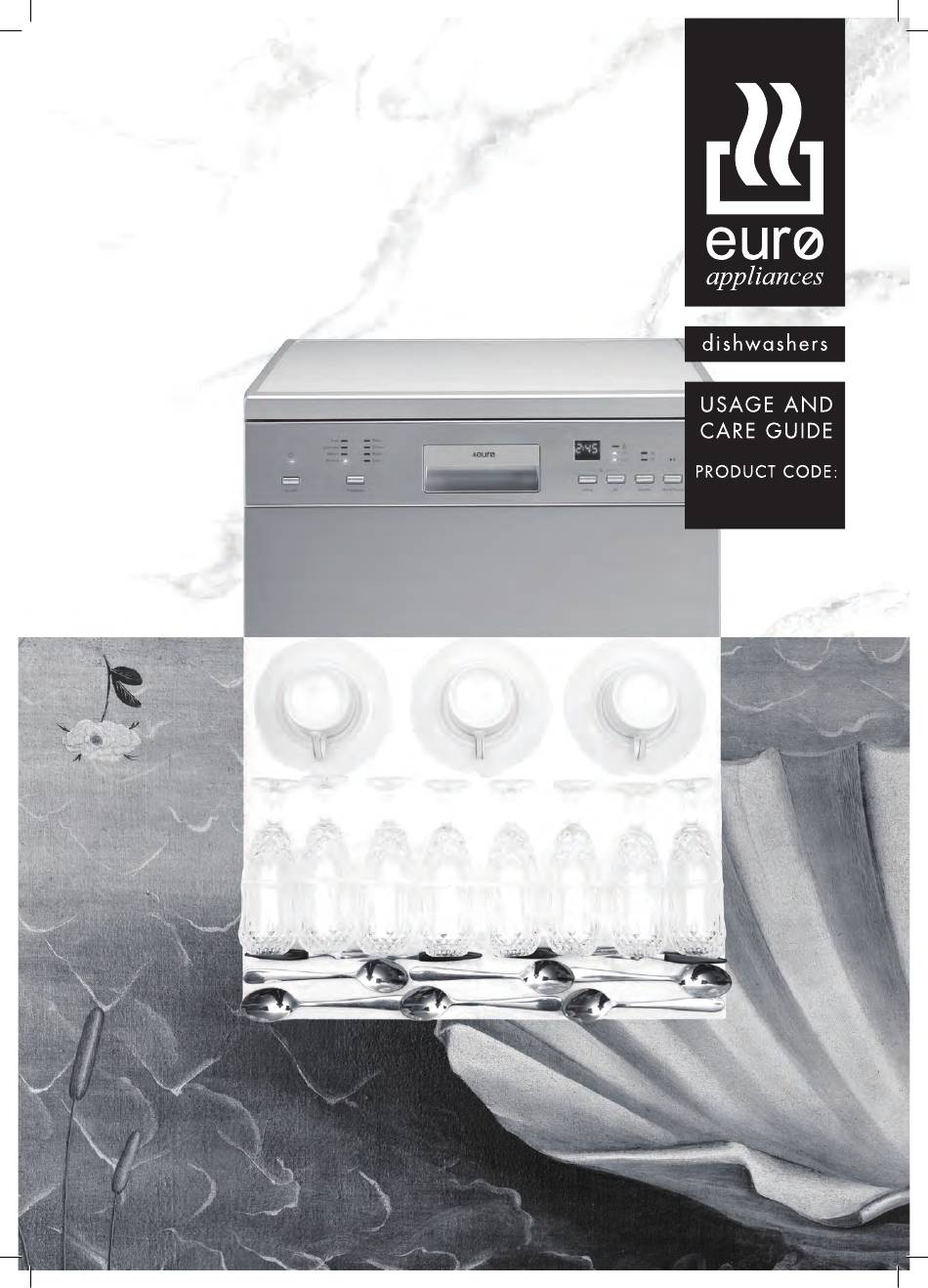

  • Page 1 EDM15XS...

  • Page 2: Table Of Contents

    CONTENTS Technical specifications …………………………………………………….. • Conformity with the standards and Test data …………………………….. • Safety information and Recommendations………………………………….. Recycling ..………………………............• Safety information …………………………………………………………… • Recommendations …...……………………………………………………… • Items not suitable for dishwashing ………………………………………… • Installing the machine ………………………………………………………….. Positioning the machine …………………………………………………….. •...
  • Page 3 Loading your dishwasher .……………………………………………………. Alternative basket loads …………………………………………………... • Programme descriptions .…………………………………………………….. Programme items ………………………………………………………….. • Getting familiar with your machine …………………………………………… 25 Switching on the machine and selecting a programme……………..Switching on the machine…………………………………………………. • Programme follow-up ……………………………………………………… • Changing a programme ……………………………………………………...

  • Page 5: Technical Specifications

    Technical specifications Capacity 15 place settings Height 850 mm Height 820 mm (without worktop) Width 598 mm Depth 598 mm Net Weight 56 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power 30 W...

  • Page 6: Safety Information And Recommendations

    SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
  • Page 7 • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. •...
  • Page 8 • Due to danger of explosion, do not put into the machine’s washing section any chemical dissolving agents such as solvents. • Check whether plastic items are heat-resistant before washing them in the machine. •This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the...
  • Page 9 • If EnergySave option is selected as "Yes", The door will be opened at the end of the program. Do not force to close the door to avoid harm auto door mechanism during 1 minutes. The door must be open during 30 minutes to get effective drying.( in models with auto door opening system ) Warning: Do not stand in front of the door after the signal sounds belonging auto-open.

  • Page 10: Recommendations

    the machine.Do not pull by the cable when unplugging. Make sure to turn off the water tap. Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. •...

  • Page 11: Installing The Machine

    INSTALLING THE MACHINE Positioning the machine When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes. Do not put your machine in any location where there is the probability for the room temperature to fall below 0°C.

  • Page 12: Water Inlet Hose

    entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

  • Page 13: Water Outlet Hose

    Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.

  • Page 14: Electrical Connection

    Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

  • Page 15: Fitting The Machine Undercounter

    Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.
  • Page 16 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product  Without Insulation With Insulation  All Product  For 2nd Basket For 3rd Basket  Height 820 mm 830mm 835 mm Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.

  • Page 17: Preparing The Machine For Use

    PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •...

  • Page 18: Filling With Rinse Aid And Making The Setting

    They produce good results for certain types of usage only. If you are using this type of • detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •...

  • Page 19: Loading Your Dishwasher

    Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.
  • Page 20 Top basket height adjustment while it is full Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
  • Page 21 Upper Cutlery Basket The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items. Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.
  • Page 22 Lower Basket Folding Racks Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

  • Page 23: Alternative Basket Loads

    Alternative basket loads Lower Basket Top basket...
  • Page 24 Faulty loads   Important Note for Test Laboratories   For detailed information on performance tests, please contact following address:   "dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.  ...

  • Page 25: Programme Descriptions

    PROGRAM DESCRIPTIONS Program items Name of Program Prewash Quick 30 min. Super 50 min. Daily Auto Auto Auto Delicate Intensive Washing Temperature 30-50 50-60 60-70 Type of Food Fragment Fresh coffee, milk, Normally Tarried soup, sauce, Fresh coffee, milk, Detects contamination level of dishes and sets Fresh less dirty, temperature and amount of washing water and tea, cold meat,...

  • Page 26: Getting Familiar With Your Machine

    GETTING FAMILIAR WITH YOUR MACHINE 1.) ON/OFF Button When one presses the on/off button, the machine is energized and the light on Start/Standby button goes on. 2.) Extra Rinse / Dry Button You can add extra rinsing or drying functions into the selected program by using extra button.
  • Page 27 Thus, washing up shall be done only on the lower basket of your machine. In using this feature,make sure that there are no dishes in the upper basket. Note : If you have used an extra feature on the latest washing program, this feature will remain active also on the next washing program.

  • Page 28: Switching On The Machine And Selecting A Programme

    SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine The lamp on Program Start/Pause key goes off once the Program starts and the washing lamp is highlighted. Press the Power On/Off key. Select the program suiting your dishes via the Program Selector button.

  • Page 29: Changing A Programme With Resetting

    Changing a programme with resetting If you would like to cancel a program while a washing program is resumed. Hold Start/Pause button pressed for approx. 3 sec. until Finish light blinks. Once Finish light comes on, it means that the cycle has been cancelled.

  • Page 30: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine.

  • Page 31: Spray Arms

    Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.
  • Page 33 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.

  • Page 34: Practical And Useful Information

    If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient. •...
  • Page 35 Warranty Subject to the exclusions and limitations set out below we warrant to you that if you purchase Euro Appliances from one of our authorised retailers that they will not contain defects as a result of faulty manufacturer workmanship or materials.
